Model: FL5080
Description:

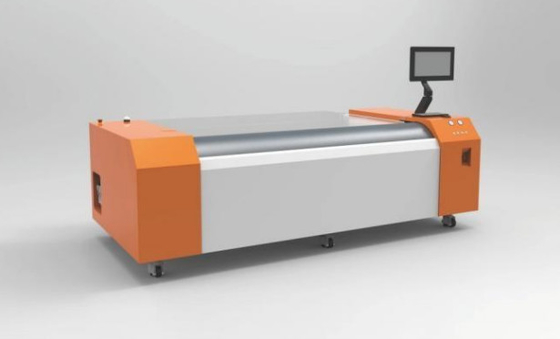

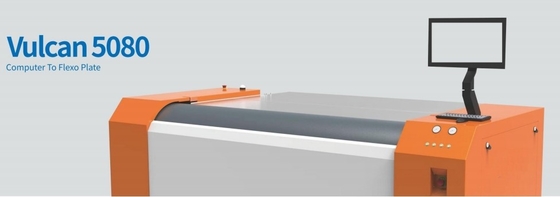

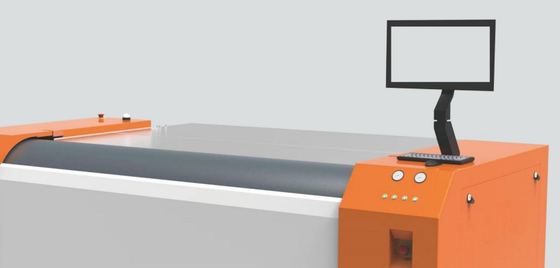

Digital computer-to-flexo plate imagesetter CTP machine; a full-size 50-inch by 80-inch flexo plate-making machine.
The FL5080 is designed with high-energy power fiber laser technology and independent control of 256 channels LV technology, representing a breakthrough in energy power limitations. It features laser distance detection and a voice coil motor dynamic autofocus device, ensuring accurate focus on the media substrate surface regardless of variances in flexo plate material. This unique technology ensures precision and consistency in flexo plate-making.
Features and technology
- High Energy Power Fiber Laser Device:
- Output a full image size of a 50-inch x 80-inch plate at 5080 dpi in just 30 minutes.
- Increases productivity by 10% for urgent jobs, helping meet tight deadlines.
- 256 Channels Independent Modulating Technology:
- Splits the laser into 256 independently controlled channels, greatly enhancing productivity.
- Rectangular laser spot shape delivers superior dot quality and image performance.
- H256 Laser Head:
- Utilizes a new high-power magnification optical system for 5080 dpi optical resolution.
- Can image slant or circular lines as fine as 15μm and vertical/horizontal lines as fine as 5μm, resulting in sharp and clear pixels.
- Increases color fidelity by 30%.
- Super High-Resolution Capability:
- Light Valve Device can achieve resolutions up to 10160 dpi with a laser spot size of 2.5μm x 2.5μm, imaging lines as fine as 5μm or less.
- Supports 2540 dpi output; with non-critical imaging requirements, double line overlapping exposure mode can boost productivity by 150%.
- Dynamic Autofocus:
- Voice coil motor device ensures accurate focus during exposure on non-uniform flexo plate surfaces.
- Advanced Overlapping Functions:
- Double and triple lines overlapping functions provide superior image quality and efficiency for LAMS ablation during flexo plate exposure.
- Stable and Reliable Exposure:
- Instant temperature monitoring and pre-calibration of the laser head ensure stable and reliable laser exposure.
Technical data
| Model |
FL5080S |
FL5080F |
| Exposing Method |
External Drum |
| Imaging System |
1064nm fiber laser device (H256 heads) |
| Throughput |
3 sqm/hour at 5080 dpi |
5 sqm/hour at 5080 dpi |
| |
50*80 inch takes 45 minutes |
50*80 inch takes 30 minutes |
| Exposing Size |
Max. size 1270*2032mm, min. Size 200*200mm |
| Media Type |
Dry ablation film, Digital water washing letterpress plate. Digital water washing flexo plate, Digital solvent washing flexo plate |
| Plate Thickness |
0.140mm to 6.35mm |
| Resolution |
5080DPI (compatible with 2540DPI), can extend to support 10160DPI |
| Plate Loading |
Automatic/Manual plate loading |
| Net Weight |
2500kg |
Machine Size
(WxLxH)mm |
2970*1705*1537mm (L*W*H) |
| Power Supply |
Three-phase voltage: 380V, Max. Power (peak value) 16 kw |
Operation
Environment |
recommended:15-30℃, Max.21-25℃, humidity:40-70% |
Square-spot vs. Round spot
When imaging with a round spot, the spot size must match the image dot size. For instance, at 5080 dpi, the image dot pixel size is 5μm x 5μm, resembling a square area. Using a round light spot with a 5μm diameter cannot fully expose the four corners of this square area. To ensure complete exposure, the round spot diameter must be equivalent to the square area's diagonal length, which is 7.07μm (1.414 times the dot size).
A 5μm diameter spot size fails to cover the entire square area, while a 7μm diameter spot causes overlapping exposures, leading to irregular images with arc-shaped edges.
Some optics developers attempt to find an optimal spot diameter smaller than 7.07μm, but quality issues persist regardless of the chosen diameter.
In contrast, a rectangular spot shape allows for a 5μm x 5μm spot size, which fully exposes the entire square area, ensuring precise and consistent imaging.
