EcooSetter Thermal CTP Plate Machine 64-Channel 2400dpi High-Speed Offset Printing nbsp

1 SET
MOQ
Negotiable
Price
EcooSetter Thermal CTP Plate Machine 64-Channel 2400dpi High-Speed Offset Printing nbsp
Features Gallery Product Description Request A Quote
Features
Specifications
Imaging System: 64-channel; 48-channel; 32-channel
Throughput: 1,030×800mm, 2400dpi: 28 Plates/hour; 22 Plates/hour; 16 Plates/hour
Repeatability: ±5µm (Continuous Exposing For Four Times Or Above On The Same Plate With A Temperature Of 23℃ And Humidity Of 60%)
Power Supply: Single-phase: 220AC, +6%, -10%, Power Consumption: 4KW
Plate Size: Max. 1,163×940mm, Min. 300×400mm
Environment: Recommended: 21-25℃, Max.15-30℃, Humidity: 40-70%
Resolutions: 2400dpi( Option: 1200dpi )
Weight: 1,200KG
Highlight:

64 Channel CTP Plate Machine

,

EcooSetter CTP Plate Machine

,

2400dpi CTP Plate Machine
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: EcooSetter T-800A F/S/E
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 500 Sets/Year
Product Description

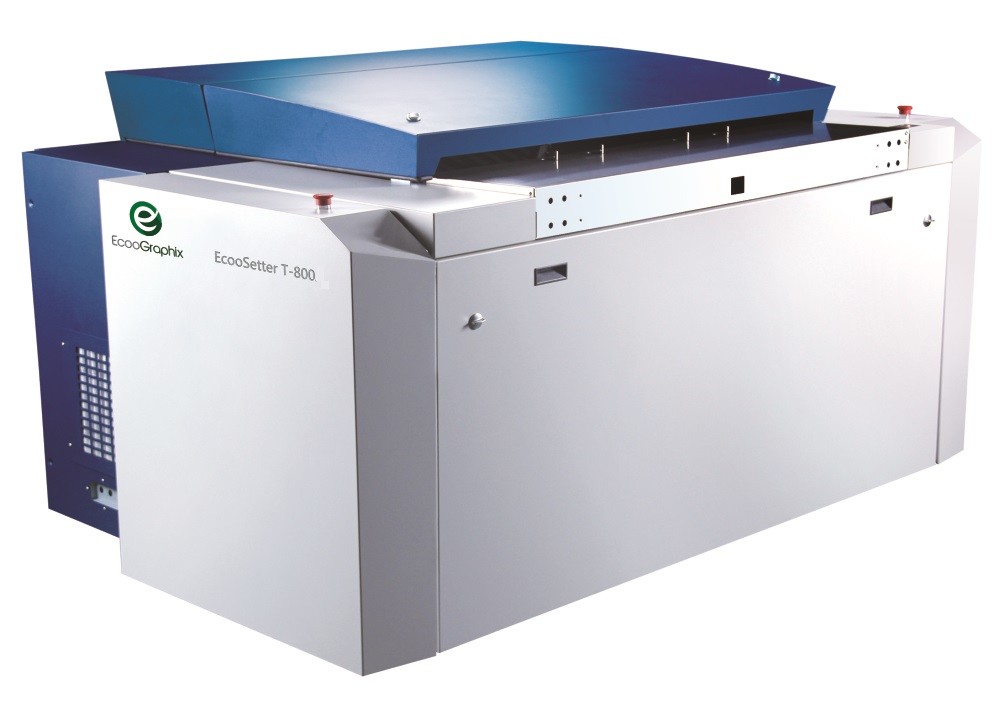

64-Channel EcooSetter Thermal Automatic CTP Offset Printing Machine



Introducing our flagship model, the EcooSetter T800AX, boasting the latest advancements in technology for significant improvements in speed and quality.

Outstanding Features:
- Brand-new imaging technology: Square-spot, utilizing a similar light-valve system as Kodak machines, enables high-quality imaging suitable for 20-10 micro FM screening.
- Significant speed improvements: Choose from three new speed options: 30, 40, or 50 plates per hour.



Specifications



EcooSetter UV&T Series Automatic CTP Specifications(Online System)

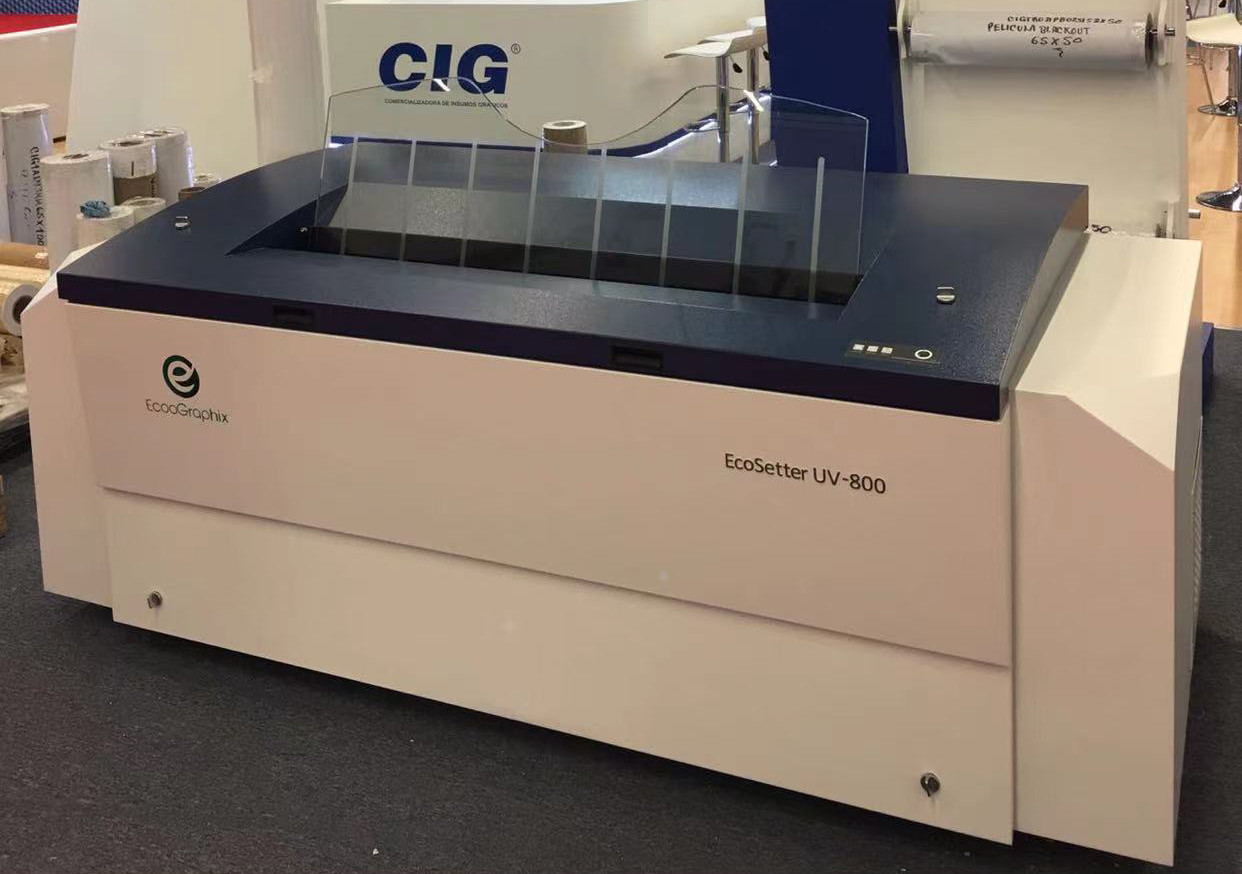

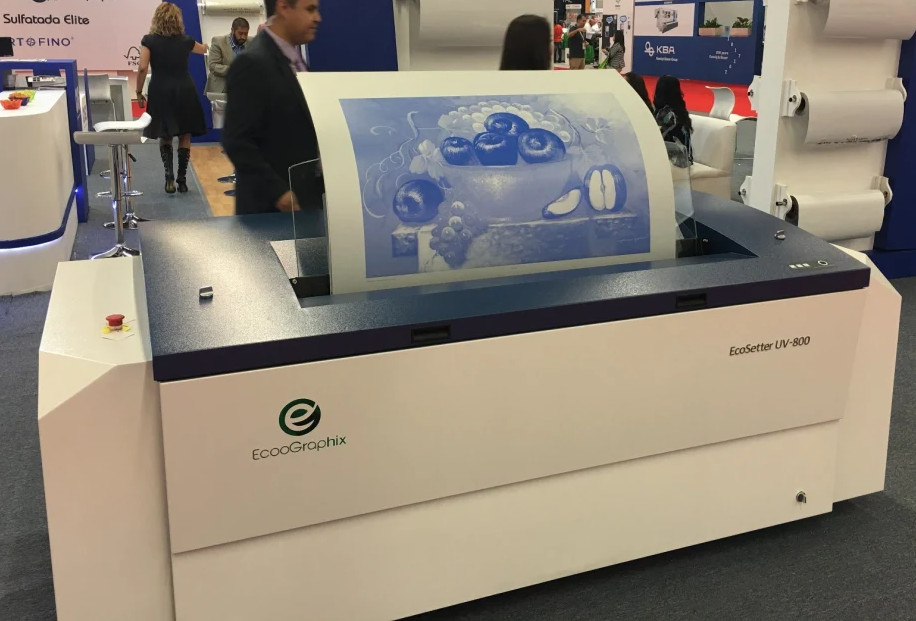

Model UV-800XA UV-800FA UV-800SA UV-800EA T-800XA T-800FA T-800SA T-800EA
Exposing Method External Drum
Imaging System 128-channel 64-channel 48-channel 32-channel 256-channel 64-channel 48-channel 32-channel
Discrete 400-410nm laser diode Discrete 830nm laser diode
Throughput 45 PPH 28 PPH 22 PPH 16 PPH 55 PPH 28 PPH 22 PPH 16 PPH
1030mm × 800mm, 2400dpi
Plate Size Max. 1163mm × 940mm, Min. 300mm × 400mm
Media Type Positive UV-CTP Plate, High-sensitive PS Plate Positive Thermal CTP Plate
Plate Thickness 0.15mm - 0.30mm
Resolutions 2400dpi, 1200dpi (Option)
Repeatability ±5µm ( Continuous exposure for 4 times or above on the same plate with a temperature of 23℃ and humidity of 60% )
Interface USB 2.0
Plate Loading Automatic
Net Weight 1200 KG

Device Size

(L x W x H)

 2127 × 1610 × 1058 mm
Power Supply Single-phase: 220AC, +6%, -10%, Power Consumption: 4KW
Environment Recommended: 21-25℃, Max.15-30℃, Humidity: 40-70%
