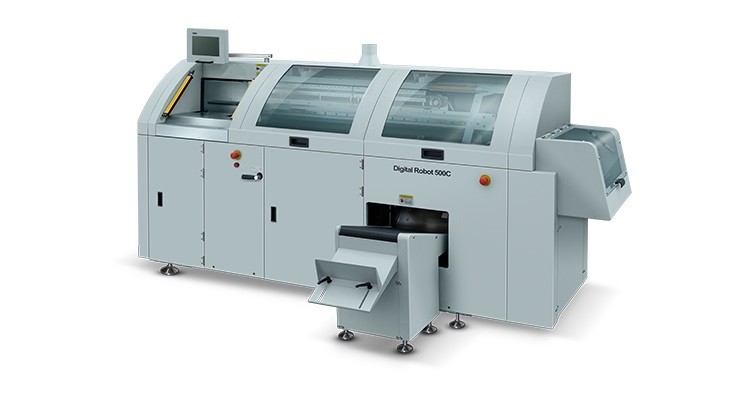

Specification
| Machine Model |
Digital Robot 500C |
| No. of Clamps |
1 |
| Max. Mechanical Speed |
400 books/h |
| Book Block Length (a) |
120-370 mm |
| Book Block Width (b) |
100-300 mm |
| Book Block Thickness (c) |
1-60 mm |
| Cover Length (d) |
120-370 mm |
| Cover Width (e) |
220-620 mm |
| Power Required |
11.5 kw |
Machine Layout
Main Machine Parts

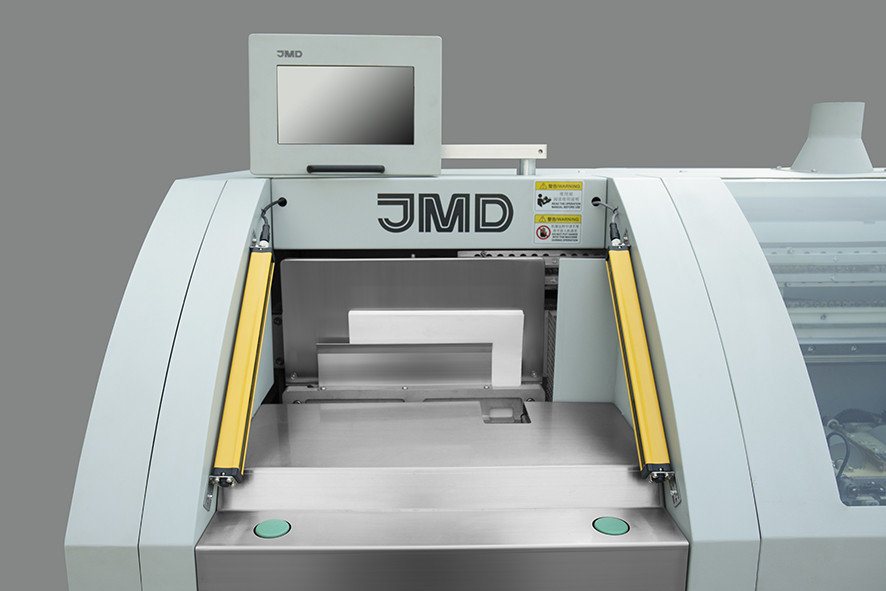

Touch Screen Control System:
Featuring an intuitive icon-based 10-inch touch screen, this system ensures ease of operation. Inputting the desired book format and production parameters can be done directly on the touch screen or by scanning a barcode. The set-up process is automatically completed in just 30 seconds at the fastest speed. Moreover, the control system has the capacity to memorize up to 99 jobs, allowing for quick retrieval as needed.

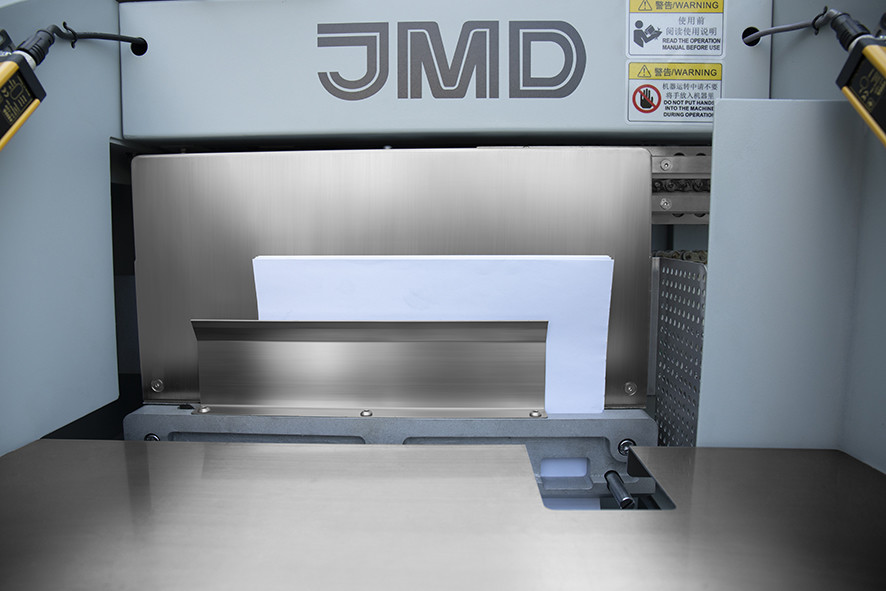

Pneumatic Book Clamp:
The pneumatic book clamps simplify the process: just place the book block inside, and the system automatically measures the book thickness and adjusts all relevant settings accordingly. A vibration unit ensures precise alignment of the book block before the clamps close. For added safety, the system features a double activation button and a safety light curtain, ensuring high-safety operation.

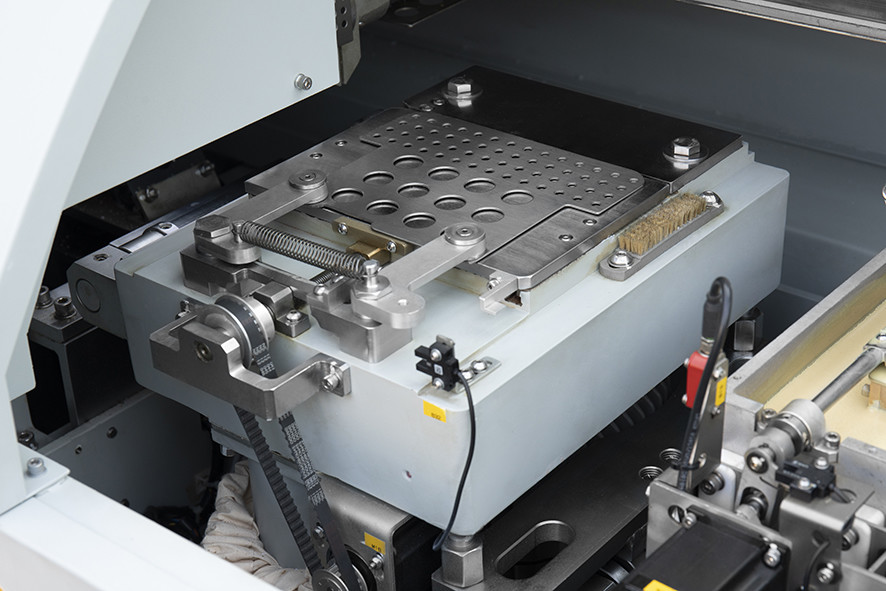

Milling Station:
The step motor enables the milling station to automatically adjust its opening width based on the detected thickness. This space-saving design integrates milling, notching, and brushing functionalities. Operators can easily enable or disable milling as needed using a switch handle.

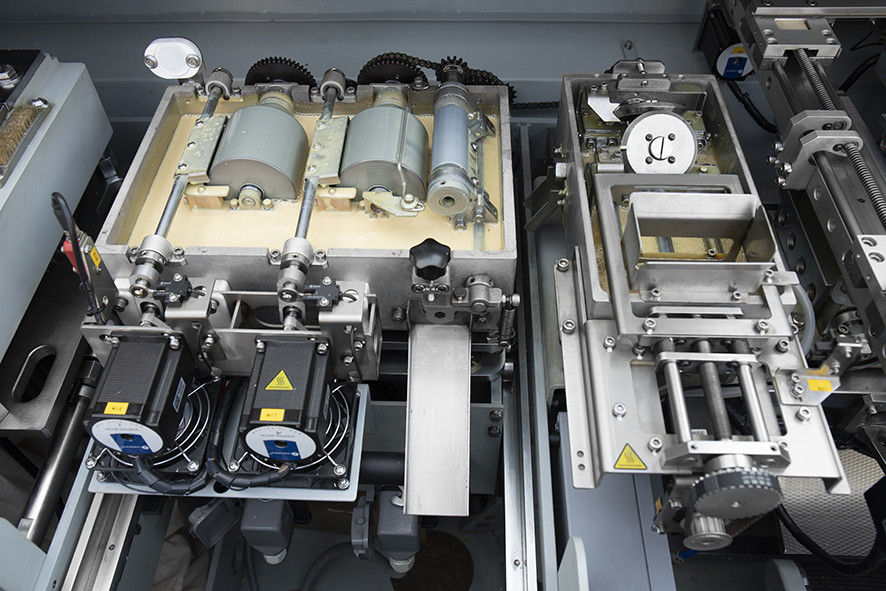

Adjustable EVA Spine Gluing Station:
Equipped with dual spine gluing rollers to ensure superior binding quality, this station offers automatic and precise adjustment of spine gluing length and thickness. Switching between EVA and PUR systems can be seamlessly accomplished in just minutes.
Independent Side Gluing Station:
Featuring two side gluing rollers with automatic opening width adjustment by step motor, this station ensures the even and precise application of thin side glue. With two application discs, the independent side gluing station provides consistent and uniform gluing results.
Cover Feeding Station:
Our top in-feed cover feeder design minimizes drag marks, ensuring high-quality output. The cover scoring position is automatically adjusted based on the input thickness, guaranteeing precise alignment. Additionally, sensitive double-feed and miss-feed detection devices ensure accurate feeding for every cover.
Cover Feeding Station:
Our top in-feed cover feeder design minimizes drag marks, ensuring high-quality output. The cover scoring position is automatically adjusted based on the input thickness, guaranteeing precise alignment. Additionally, sensitive double-feed and miss-feed detection devices ensure accurate feeding for every cover.
Packaging & Shipping
More details
FAQ
Q: What installation and after-sales technician support do you offer?
A: Our engineers can assist with installation and provide necessary training. The buyer is responsible for round-trip airfare, service charges, and local accommodation costs. We offer 24/7 support for any problems or questions.
We have a proven track record of successful CTP installations worldwide, including direct purchases from EcooGraphix China. Our technical service team supports these installations remotely with regular onsite visits.
Printers who purchase directly from EcooGraphix China are satisfied with our robust quality, seamless remote service, comprehensive training, and maintenance support. We guarantee your satisfaction with hassle-free installations, training, and after-sales service.
