Name: Multi Axis Control Foil Stamping Die Cutting Machine For Packaging
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-1316
Price: 50,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Stripping Machine For Packaging

Warranty: 1 Year Warranty Including Spare Parts

Application: Paper Packaging Materials, Stickers Products, Insulating Materials

Speed: 0-1200 Mm/S

Repeat Precision: ≤0.01mm

Cutting Thickness: ≤50mm(According To Different Materials)

Cutting Size: 1300*1600mm

Highlight:

Packaging Die Cutting Machine

Multi Axis Control Die Cutting Machine

Foil Stamping Die Cutting Machine

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-1316

Payment & Shipping Terms

Packaging Details: Standard Exporting Package: Polywood Carton

Payment Terms: L/C, T/T

Supply Ability: 2000 Sets/Year

Gallery

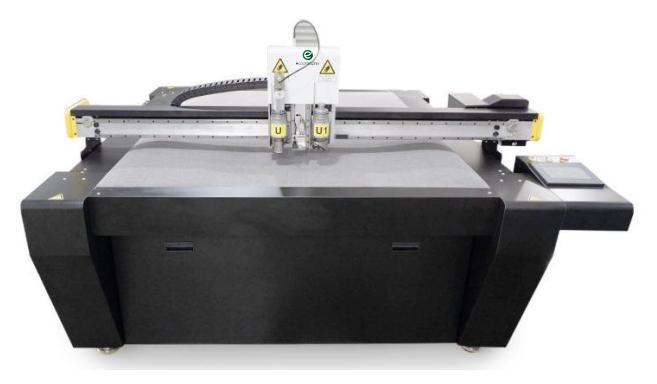

Multi Axis Control Foil Stamping Die Cutting Machine For Packaging

Product Description

Intelligent Cutting Machine For Packaging

Control System:

Our printing machine is outfitted with an advanced multi-axis high-speed motion control system boasting independent intellectual property rights. This allows for convenient system upgrades and maintenance, reducing reliance on third-party services. With control firmly in hand, users can easily customize special procedures to meet personalized requirements and remotely upgrade the system, ensuring both convenience and cost-effectiveness.

Positioning Function:

Featuring both camera and laser technologies, our machine achieves precise positioning of various materials with high precision and minimal errors, guaranteeing exceptional printing accuracy.

Safety Protection:

To ensure user safety, the working area of the machine is equipped with infrared blocking technology, providing comprehensive safety protection throughout the printing process.

Specification

Model	ECOO-1316
Cutting size	1300*1600mm
Cutting materials	Various corrugated board, plastic corrugated board, Yellow cardboard, red cardboard, white cardboard, gray cardboard, PVC board, Foam board, EVA, KT board, sticker, gasket, etc
Standard	Oscillating tool, creasing wheel,pen,drag knife, V cut knife,cursor, milling cut knife
Cutting thickness	≤50mm(according to different materials)
Speed	0-1200 mm/s
Fixing Method	Vacuum suction
Repeat precision	≤0.01mm
Software	Independent software
Interface	Ethernet port
Buffer memory	fast transmission for multi-page large file at one time
Control panel	touch screen
Driving system	Intelligent digital control servo system
Voltage/Power	AC220±V10%,50/60HZ
Command mode	HP-GL/GP-GL

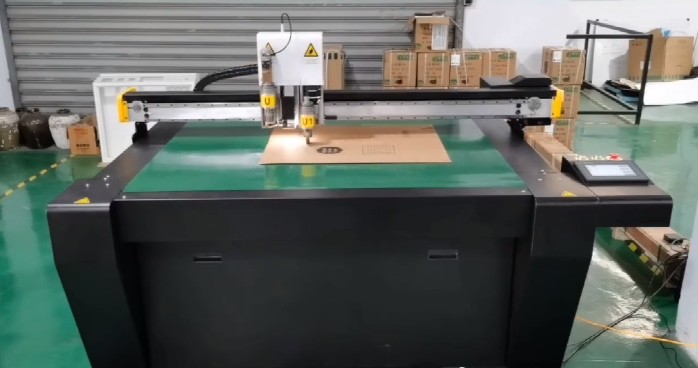

Producing And Packing

Multi Axis Control Foil Stamping Die Cutting Machine For Packaging 1

Multi Axis Control Foil Stamping Die Cutting Machine For Packaging 2

Multi Axis Control Foil Stamping Die Cutting Machine For Packaging 3

Certificates

Multi Axis Control Foil Stamping Die Cutting Machine For Packaging 4

Multi Axis Control Foil Stamping Die Cutting Machine For Packaging 5

FAQ

1. What are your main products?
We Ecoographix are a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom, and post-press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top-quality Chinese printing products to meet diversified printing requirements.

2. Where is your factory?
Our sales office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou, and Nanyang.

3. What is your warranty?
Normally 1 year.

4. Can you also supply the software?
Yes

5. What about the Installation and after-sales technician support?
Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
