EcooSetter UV-400F/S/E High-Speed 4up CTP Plate Machine for Newspaper/Commercial Printing

1SET
MOQ
Negotiable
Price
EcooSetter UV-400F/S/E High-Speed 4up CTP Plate Machine for Newspaper/Commercial Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 4up Ctcp UV CTP Machine
Throughput: 16/22/28pph
Plate Sizes: Max.800mm X 660mm; Min. 260mm X 300mm
Media Type: Positive UV-CTP/CTCP Plate Or High Sensitive PS Plate
Plate Thickness: 0.14mm To 0.30mm
Machine Size (WxLxH)mm: 1900x1200x1000
Highlight:

Commercial Printing CTP Plate Machine

,

UV-400F/S/E CTP Plate Machine

,

Newspaper Printing CTP Plate Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: Ecoosetter UV-400
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30-45 days
Payment Terms: L/C, T/T
Supply Ability: 5000 SETS/YEAR
Product Description

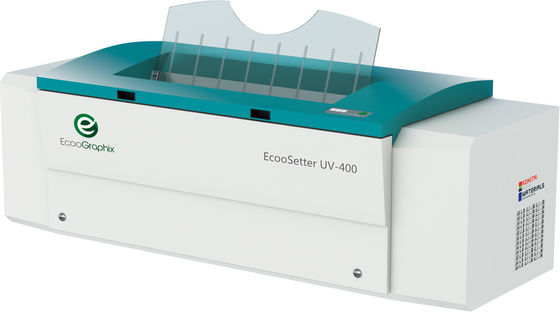

4up CTCP UV CTP Machine Model: UV-400 Series



The EcooGraphix UV 400 series is ideal for newspaper or commercial printing, with an output speed ranging from 16 PPH to 28 PPH. This CTP machine is operated manually, offering ease of use and simplicity. Customers can expect superior image quality, outstanding reliability, minimal space requirements, and greater flexibility. This revision ensures clarity and smooth flow while highlighting the key benefits.



Specification



EcooGraphix UV400 Series
Model UV-400F UV-400S UV-400E
Imaging System 48 32 24
Output Speed 28 22 16
800mm x 600mm / 2400dpi
Plate Size Max. 800 x 690mm Min. 400mm x 300mm
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Weight 800KG
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size (WxLxH)mm 1900*1200*1000mm(W*D*H)
Power Supply single-phase: 260AC, +6%-10%; Power Consumption: 4KW
Environment recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: 40-70%RH
