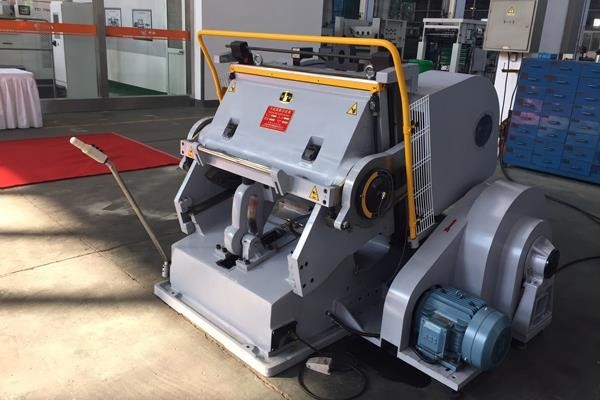

Conventional Semi Automatic Flat Bed Die Cutter Without Stripping
The EcooGraphix PYQ1040 is an ideal die-cutting and creasing equipment for various paperboards, serving as a premier hand-fed die-cutting machine capable of simple creasing for samples.
Our semi-automatic die cutter, renowned for its longevity, has undergone numerous upgrades while maintaining flawless surface quality and optimal performance.
Features:
- Machine frame constructed of high-grade iron
- Helical drive gears ensure enhanced strength, smooth operation, and reduced noise levels
- Manual central lubrication system for easy maintenance
- Double micrometer impression adjustment for precise control
- Equipped with electromagnetic clutch and counter for efficient operation
- Impression throw-off feature prevents wastage during misplacement
- Reliable safety devices, including platen edge safety and covers on flywheels, ensure operator safety and machine protection.
3. Specification
| 1 |
Max.Sheet Size(mm)
(Inside Chase Dimension) |
1040×720 |
| 2 |
Max.Operation Pressure(Ton) |
120 |
| 3 |
Max. Operation Speed(S/Min) |
22 |
| 4 |
Motor Power(Kw) |
5.5 |
| 5 |
Machine Weight(Tons) |
4.5 |
| 6 |
Overall Machine Dimension(mm)(L*W*H) |
1900*1665*1660 |
4. About our factory
EcooGraphix TD790 is manufactured by a leading Chinese manufacturer with over 90 years of history. As the pioneering factory in producing and supplying Die Cutting, Foil Stamping, and Automatic Gluing machines, we have installed thousands of Die Cutting Machines globally. Notably, two units of EcooGraphix TDS790 were installed in Hungary in 2017.
5. Quality Control
Our dedicated control department oversees all aspects of machine production.
We implement a comprehensive checklist encompassing mechanical and electrical inspections for each machine.
Each machine undergoes rigorous testing, including over 24 hours of non-stop running, to ensure optimal performance.
We adhere to the policy of assigning one person per machine, ensuring accountability and swift resolution of any assembly issues.
7. Service
- Our technicians possess extensive experience spanning 10-20 years.
- We have rich expertise in installation, repair, and maintenance services overseas.
- Our after-sales staff is available 24/7 via WhatsApp/WeChat for seamless communication.
- We guarantee to provide after-sales service for the entire lifespan of any machine.
