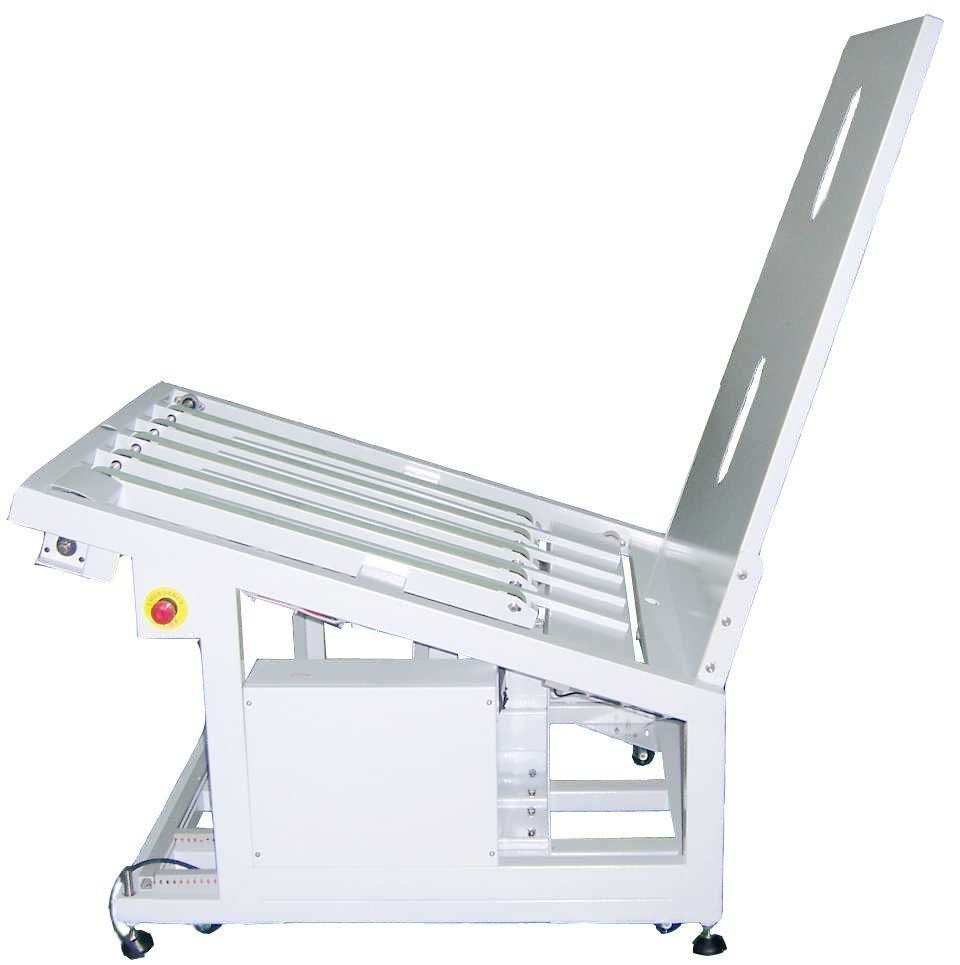

CTP plate stacker to collect the plate after developing / processing
The CTP plate stacker serves as a complementary component within an automatic CTP production line. Our S1150 model, featuring a width of 1150mm, is compatible with the T800A and UV800A CTP series. We offer various formats to accommodate different CTP requirements. For a comprehensive overview, please refer to the complete production line below, with the stacker highlighted in red for clarity.
Ecoosetter Automatic Thermal CTP Online System
EcooSetter T-800FA Automatic CTP
Laser wavelength: 830nm
Plate: 830nm thermal plate
Exposing Method: External Drum
Imaging System:64-channel
Throughput: 28 plates per hour, 1030mmx800mm 2400dpi
Plate Size: Max. 1130x920mm min. 300x300mm
Plate Thickness:0.15mm to 0.3mm
Resolutions:2,400dpi
Repeatability:±5μm(continuous exposure for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface: USB2.0
Weight:1200KG
Size:2127×1405×1058mm(W×D×H)
Power Supply:single-phase: 220AC+6%,-10%;Power Consumption:4KW
Environment:recommended: 21-25ºC,max.18-26ºC,humidity:40-70%
Technical data
| Model |
S1150 |
| Dimension |
1570mm*1350mm*1060mm |
| Plate size |
not exceeding 1130mm in width |
| Gross weight |
170 kg |
| Match CTP series |
T800A or UV800A |

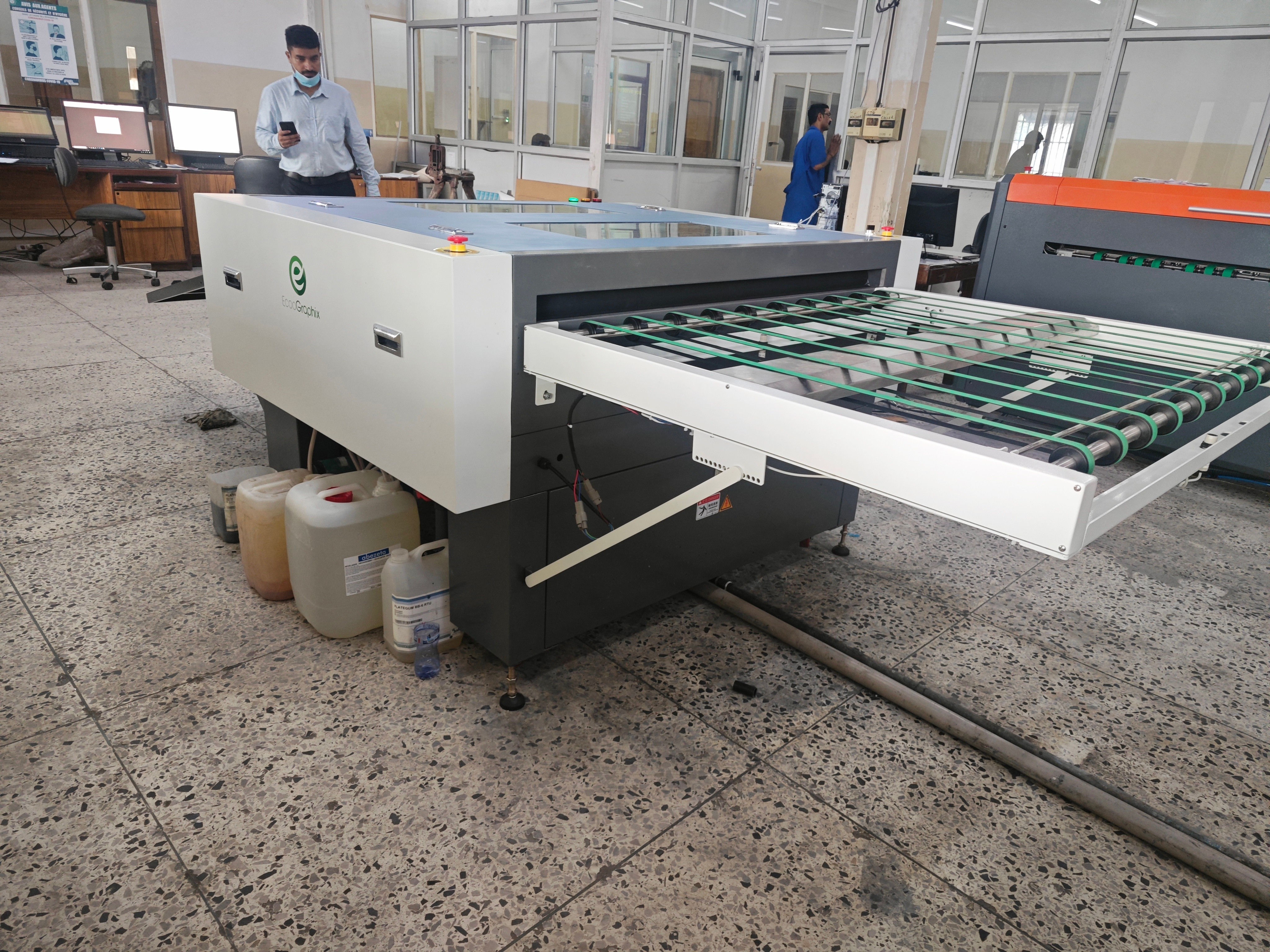

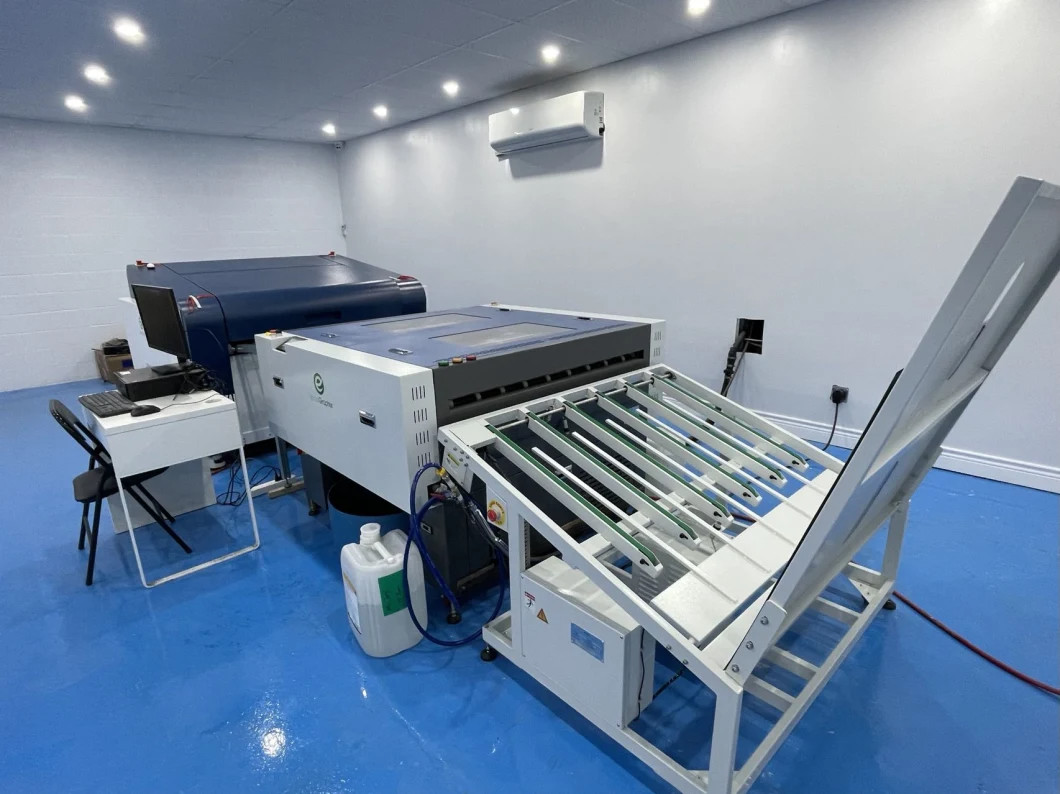

Installation in customers' place for your reference
Our factory
Some tips
1. Stacker is not indispensable for a complete production line. In its absence, the CTP and processor can function effectively. A staff member can simply collect the well-developed plate from the processor outlet.
2. Since the stacker follows the processor, rather than the CTP machine, it can be used with a manually operated CTP machine as well. However, it may not be necessary for factories with ample space and manageable printing workloads.
