Name: Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: Pearls-8000
Price: 100,000.00 USD
Availability: InStock

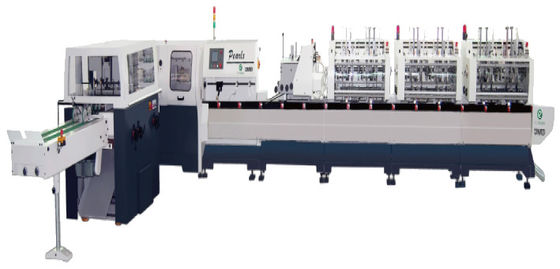

Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes

1 SET

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Automatic Online Saddle Stitching Book Binding Machine

Type: Saddle Stitching Book Binding Machine

Classification Of Punching Machine: Automatic Punch

Classification Of Financial Binding Machine: Automatic

Classification Of Wire Binding Machine: 21 Hole

Thickness: ≤20mm

Highlight:

Large Sizes Book Binding Machine

Small Sizes Book Binding Machine

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: Pearls-8000

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: About 30 Days

Payment Terms: L/C, T/T

Gallery

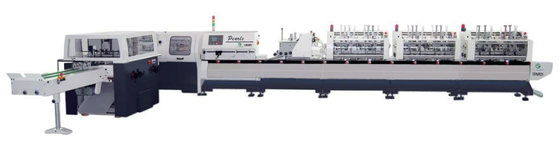

Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes

Product Description

Brief Description

The Pearls-8000 automatic saddle stitching system offers a cost-effective solution for signature gathering, stitching, and trimming. Its compact and clearly arranged design, along with central touch screen control, enables convenient monitoring of production. With simple operation and a space-saving layout, it's perfect for commercial runs.

Advantage

- Easy operation via touch screen control and large viewing windows

- Space-saving layout for simplified operation

- Reliable feeding, stitching, and trimming quality

- Fast make-ready facilitated by position indicators

Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes 0

Specification

_Model	_Pearls-8000
Max. Mechanical Speed	8000cycles/h
Max. Untrimmed Book Size (a*b)	365*305mm
Min.Untrimmed Book Size (a*b)	110*85mm
Max. Trimmed Book Size (a*b)	360*300mm
Min. Trimmed Book Size (a*b)	105*65mm
Max .SchngThckessc	10mm
Power Required	12.5kw
Machine Weight	3880KG
Machine Dimensions (LWH)	830045001400mm

Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes 1

Machine Spare Parts

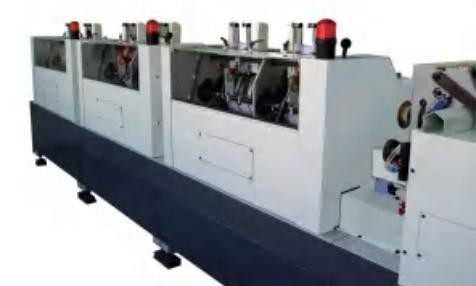

1. Twin Feeder:

Equipped with up to four compact twin feeders featuring large-capacity flat pile hoppers, ensuring consistent high output. Grippers or vacuum systems efficiently handle signatures with low/high folio laps or various formats. Choose between 1:1 or 1:2 speed modes for optimal performance.

Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes 2

2. Folder Feeder:

Following scoring along a predetermined line, the cover is folded along the scored line, then fed onto the gathering chain for transport to the saddle stitcher.

Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes 3

3. Stitching Section:

The Pearls-8000 can accommodate up to four Deluxe stitching heads, with Honher stitching heads available as an option. These stitching heads move back and forth along with the signatures during operation.

Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes 4

4. Three-Knife Trimmer:

Featuring handwheels with position indicators, the three-knife trimmer is quick and easy to set up. Products are trimmed precisely and reliably from start-up. Initially, the head and foot are trimmed, followed by delivery to the front cut knife for precise side cuts.

Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes 5

5. Stream Delivery:

The fully trimmed books are smoothly conveyed by the transport belt into the stream delivery process.

Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes 6

Producing And Packaging

Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes 7

Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes 8

Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes 9

More details

Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes 10

Ecoographix High Speed Book Binding Machine For Large And Small Book Sizes 11
