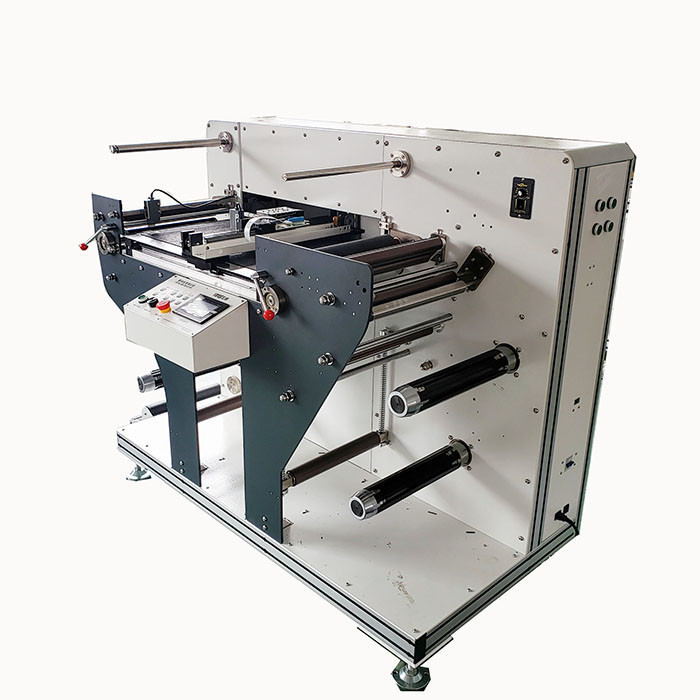

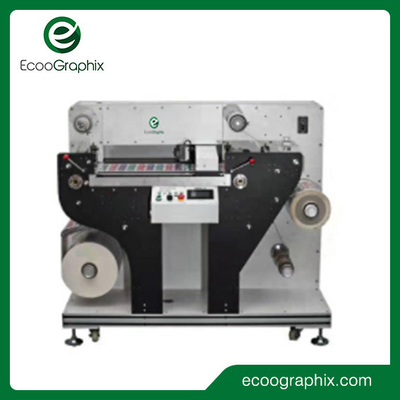

Ecoo Color DLP VD320 DIGITAL DIE CUTTING MACHINE
Product Description
Traditional label finishers are often complex in design, expensive, and lack functionality. In response, EcooGraphix has developed the VD320 digital label die-cutter system: a high-speed, user-friendly, and multifunctional solution. This innovative system is designed for professional label printing companies, offering reliability and versatility. Combining laminating, die-cutting, slitting, and rewinding into one unit, the VD320 is the optimal choice for label finishing systems.
| Model | Ecoo-VD320 |
| Max. media roller | diameter 450mm |
| Cutting media width | 40-340mm |
| Max.label width | 310mm |
| Min.label length | 10mm |
| Max.label length | 400mm (segmentation gets to 1200mm) |
| Cutting speed | max.6m per minute (depending on label shape and size) |
| Cutting blades | (Standard) max.4 pcs |
| Slitting blades | (standard)max.15pcs |
| Cutting tracking | with tungsten steel rotary blades |
| Die-cutting technology | 0.1mm (duplicate) |
| Cutting precision | singe mark or double mark |
| Slitting speed | Max. 100m per minute |
| Slitting width | 10-310mm |
| Slitting precision | 0.1mm |
| Machine size (W*D*H) | 160*100*136CM |
| Machine weight | 520kg |
| Power | 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS |
| Warranty | 1year (besides high consumable parts) |
| Options | Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter |
Software Features:
1. High-precision feeding system:
Employing a dual mark tracking sensor system ensures consistent media feeding. Choose between internal edge and internal line tracking options for enhanced precision.
FAQ
1. What are your main products?
We offer a full range of printing materials covering prepress, pressroom, and post-press machines and consumables. We serve hard around the clock for dealers and end users who are in either the packaging industry or the book printing industry. We mainly supply Prepress CTP machines, Printing materials, Digital Label Printers, Digital Book Binders, Digital Foil Stamping and Die Cutting Machine, UV Inkjet Printer, Paper Slitting and Rewinding machines, Paper Box/Cup Forming machines, and so on.
2. Where is your factor?
Our factory is located in Shenzhen city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
3. What is your warranty?
One to Three years.
4. What is the Lead Time?
Usually 20-30 days, and we will try our best to meet your demands.
5. Is there any options, please?
Yes, we provide Nordson Nozzle PUR Application System:
Nordson PUR melter (MiniPUR Plus) + Nordson PUR Automatic Gun (SB60-Bod), but not for free.
6. What about the Installation and after-sales technician support?
Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets and service charge and the local accommodation cost. If you have any problems or questions, we will be at your disposal 7x24 hours.
