Name: EcooGraphix 22pcs/Min Automatic Double Guide Stripping Machine For Packaging
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: Ecoo QF Series
Price: 50,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Stripping Machine For Packaging

Warranty: 1 Year Warranty Including Spare Parts

Max Sheet Size(X)X(Y): 680X460; 920X680; 1080X780mm

Max Paper Pile Height: 100mm

Min Sheet Size(X)X(Y): 400X300; 550X400; 650X450mm

Min Paper Pile Height: 40mm

Bench Height: 850mm

Min Take Off The Paper: 30*30mm

Highlight:

22pcs/Min Double Guide Stripping Machine

Automatic Stripping Machine

22pcs/Min Stripping Machine

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: Ecoo QF Series

Payment & Shipping Terms

Packaging Details: Standard Exporting Package: Polywood Carton

Payment Terms: L/C, T/T

Supply Ability: 2000 Sets/Year

Gallery

EcooGraphix 22pcs/Min Automatic Double Guide Stripping Machine For Packaging

Product Description

Automatic Double Guide Stripping Machine For Packaging

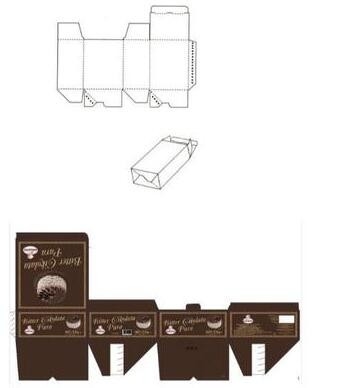

EcooGraphix 22pcs/Min Automatic Double Guide Stripping Machine For Packaging 0

Introduction

This system revolutionizes manual labor, enhancing both product quality and enterprise profitability.
It incorporates advanced components including a servo motor, Taiwan double guide rail, and ball screw, ensuring precision levels of less than 0.02mm.
Equipped with the latest hydraulic system featuring an inserted motor and an oil temperature cooling fan (3.75kw power), it maintains constant and substantial working pressure.
The entire machine is outfitted with PLC technology and operated via a user-friendly touchscreen interface, ensuring safety and ease of operation.

Features

Tailored for post-die-cutting strip processing, this series of products dramatically reduces labor requirements while elevating product quality and enhancing company efficiency.

Specification

Model	QF 680	QF 920	QF 1080
Max sheet size(x)x(y)mm	680x460	920x680	1080x780
Max paper pile height(mm)	100	100	100
Min paper pile height(mm)	40	40	40
Min sheet size(x)x(y)mm	400x300	550x400	650x450
Bench height(mm)	850	850	850
Max Take off the paper(mm)	230x230	320x320	360x360
Min Take off the paper(mm)	30x30	30x30	30x30
Fastest Take off the paper(pcs/min)	15-22	15-22	15-22
Max Force(bar)	70	70	70
Air consumption(L/min)	2	2	2
Power	4.2kw/n 380V	4.2kw/n 380V	4.2kw/n 380V
Net weight	1.5T	1.9T	2.3T
Package dimension(mm)	2100x1500x2200	2600x1950x2250	3000x2150x2200
Gross weight	1.8T	2.2T	2.6T

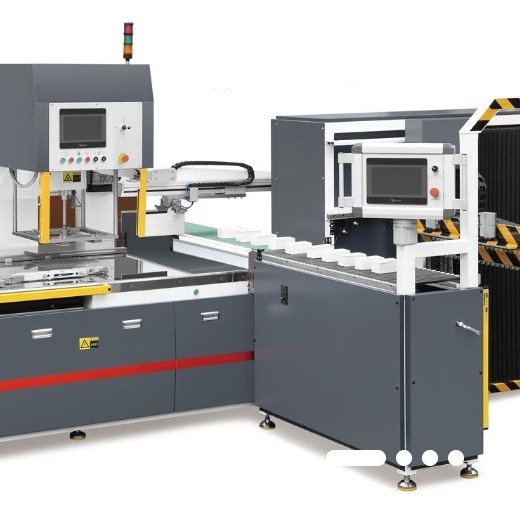

EcooGraphix 22pcs/Min Automatic Double Guide Stripping Machine For Packaging 1

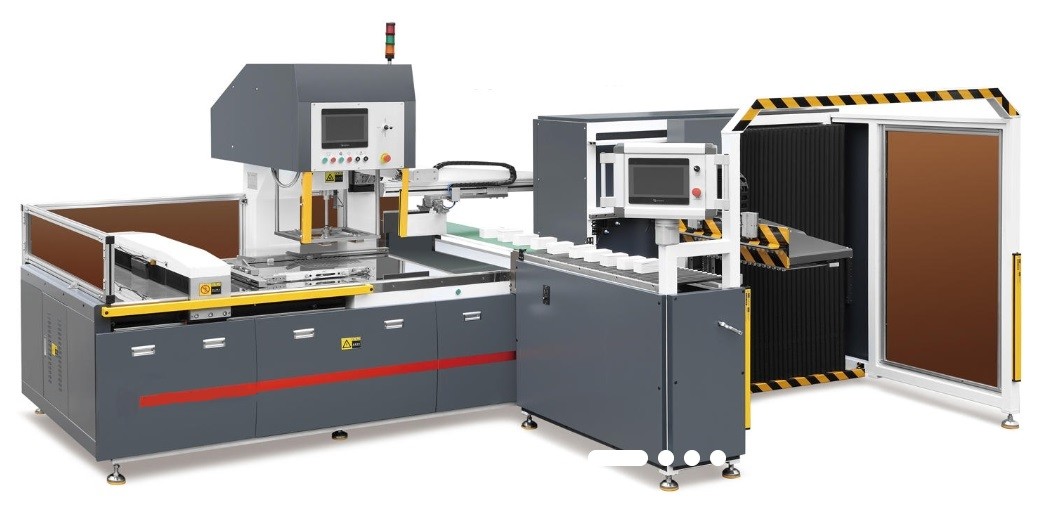

EcooGraphix 22pcs/Min Automatic Double Guide Stripping Machine For Packaging 2

Producing And Packing

EcooGraphix 22pcs/Min Automatic Double Guide Stripping Machine For Packaging 3

More Details

EcooGraphix 22pcs/Min Automatic Double Guide Stripping Machine For Packaging 4

EcooGraphix 22pcs/Min Automatic Double Guide Stripping Machine For Packaging 5

FAQ

1. What are your main products?
We Ecoographix are a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom, and post-press, focusing on packaging printing and book printing.
We have hundreds of users all over the world. We bring forward top quality Chinese printing products to meet diversified printing requirements.

2. Where is your factory?
Our sales office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou, and Nanyang.

3. What is your warranty?
One year for machine and printing head if use our ink. One year for the machine only if do not use our ink.

4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.

5. What about the Installation and after-sales technician support?
Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets and service charge
and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
