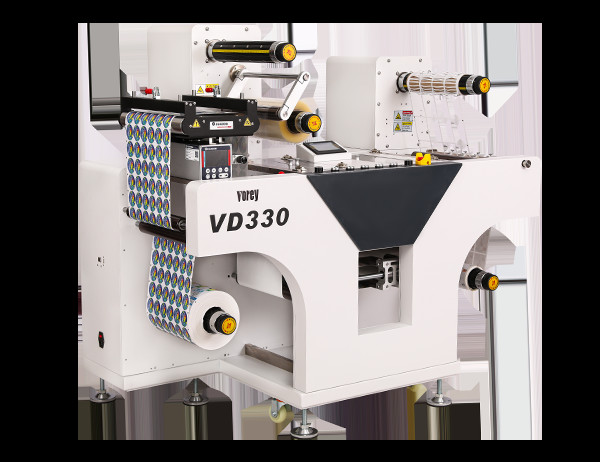

High-Speed and Precision Label Printing Machine with Full Servo Motor Technology

1SET
MOQ
Negotiable
Price
High-Speed and Precision Label Printing Machine with Full Servo Motor Technology
Features Gallery Product Description Request A Quote
Features
Specifications
Max Die Cutting Width: 210mm
Speed: 8m/minute(7cm *15cm) SS
Technology: Tungsten Steel Rotary Blade
Substrates: PP,PET ,Paper,Foil
Warranty: One Year
Laminate Width: 240mm
Max Label Length: 300mm
Highlight:

Full Servo Motor Label Printing Machine

,

Precision Label Printing Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: CE
Model Number: Ecoo-VD240
Payment & Shipping Terms
Packaging Details: standard export packing
Delivery Time: about 20days
Payment Terms: L/C, T/T
Supply Ability: 300SET
Product Description

240mm Roll Label Desktop Small Quantity Sample Digital Die Cutter



Introduction:

As society progresses and consumer demand for product diversification grows, there's an increasing need for labeling and customization across various industries. Label printing companies and enterprises alike seek digital label printers to streamline printing processes and reduce costs associated with time and labor. With a diminishing workforce skilled in traditional printing methods, the simplicity of operation and maintenance offered by digital products has made significant inroads into the label printing market. Gradually, digital printers are poised to replace traditional printing presses. Ecoo Digital Label Printer caters to diverse customer needs by offering competitive printing costs and lower product prices.



Machine Highlights:

- Achieves high speed and precision with full-servo motor technology.
- Integrates lamination, die-cutting, waste removal, slitting, and rewinding functions into a single machine for seamless operation.
- Dual head design automatically adjusts and distributes the cutter for enhanced efficiency.
- Utilizes Sick track sensor technology to track single or double eye marks accurately.
- Supports QR code or digital automatic file switching, enabling automatic access to cut files.
- Employs intelligent cutting with trajectory optimization for optimal performance.



Parameters and specifications
Maximum winding and unwinding 290mm
Support material width 80-240mm
Maximum label width 230mm
Minimum label length 10mm
Maximum label length 300mm (maximum label length for plate cutting 2000mm)
Die cutting speed 9m/min
Number of die-cutting machine heads 2
Data interface USB2.0
Die-cutting technology Hard alloy rotary cutting tool
Mould-cutting precision 0.1mm
Die cutting positioning Black Label Single/Double Dot/CCD
Size 910*630*740
Weight 120kg
Power supply 110-127VAC 50-60HZ,1000W 220-240VAC 50-60HZ,1000W
Warranty service One year (excluding vulnerable parts)



High-Speed and Precision Label Printing Machine with Full Servo Motor Technology 0



High-Speed and Precision Label Printing Machine with Full Servo Motor Technology 1



High-Speed and Precision Label Printing Machine with Full Servo Motor Technology 2

High-Speed and Precision Label Printing Machine with Full Servo Motor Technology 3

High-Speed and Precision Label Printing Machine with Full Servo Motor Technology 4

High-Speed and Precision Label Printing Machine with Full Servo Motor Technology 5



High-Speed and Precision Label Printing Machine with Full Servo Motor Technology 6
