Automatic stamping devices find frequent application in diverse packaging tasks like labeling, card embellishment, and food packaging enhancement.
Among our top-selling products is the 1080BQ automatic stamping machine, notably popular across Europe, including the UK, Hungary, Romania, Croatia, Portugal, Bulgaria, and the Czech Republic.
Renowned for its robustness, the 1080BQ automatic DIE CUTTING machine traces its roots back two decades to its inaugural design. To date, over 300 units of these automatic stamping devices have found homes worldwide.
| Model | Ecoo-1080BQ |
| Max. Sheet size(mm) | 1080 x 780 |
| Min. Sheet size(mm) | 400 x 330 |
| Max. Die cutting size(mm) | 1075 x 770 |
| Inside chase size(mm) | 1100 x 790 |
| Cutting plate size | 1080 x 780 |
| Min.gripper margin(mm) | 7 |
| Die cutting accuracy(mm) | ≤±0.1 |
| Max.pressure(T) | 300 |
| Max.machine speed(s/h) | 7000 |
| Feeding pile height(mm) | 1550 |
| Delivery pile height(mm) | 1400 |
| Stock range | White board paper: 0.1~2 mm; corrugated paper: <4 mm |
| Power | 17.8kw |
| Dimension(mm) | 5880(+1650) x 2100(+1600) x 2350 |
| Weight(T) | 17.6 |
Mode
Machine Spare Parts List
Utilizing advanced European engineering, this precision feeder head is designed specifically for handling cardboard and corrugated paper. With four suction and four feed capabilities, it offers adjustable suction angles to accommodate paper deformation.
Dual-function side regulation with push-pull capabilities on both sides. Utilizes an electromechanical detector for double sheets. Seamless switching of the main paper feeding table without machine halt. Equipped with highly durable polyurethane rollers for paper conveyance.

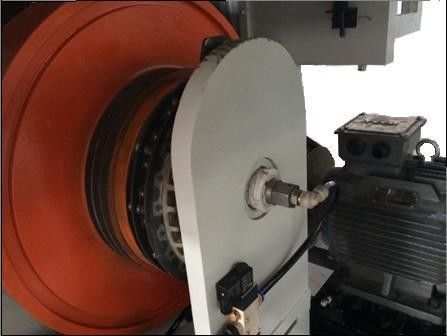

Pressure-bearing components utilize high-strength ductile iron QT500, renowned for its exceptional strength and resistance to deformation. Crankshaft crafted from alloy steel undergoes specialized treatment processes for enhanced performance.
Packaging & Shipping
Certificates
FAQ
Q: What about the Installation and after-sales technician support?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
