Name: T-400 Prepress Online Thermal Offset Plate Making Machine
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: Ecoo T-400QS
Price: 150000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Throughput(plates/hour): 25plates/hour

Plate Sensitivity: 800 X 660mm, 2400dpi, 120mj/cm²

Plate Size: Max.800mm X 660mm, Min.300mm X 300mm

Resolution: Standard: 2400 Dpi Or 1200 Dpi

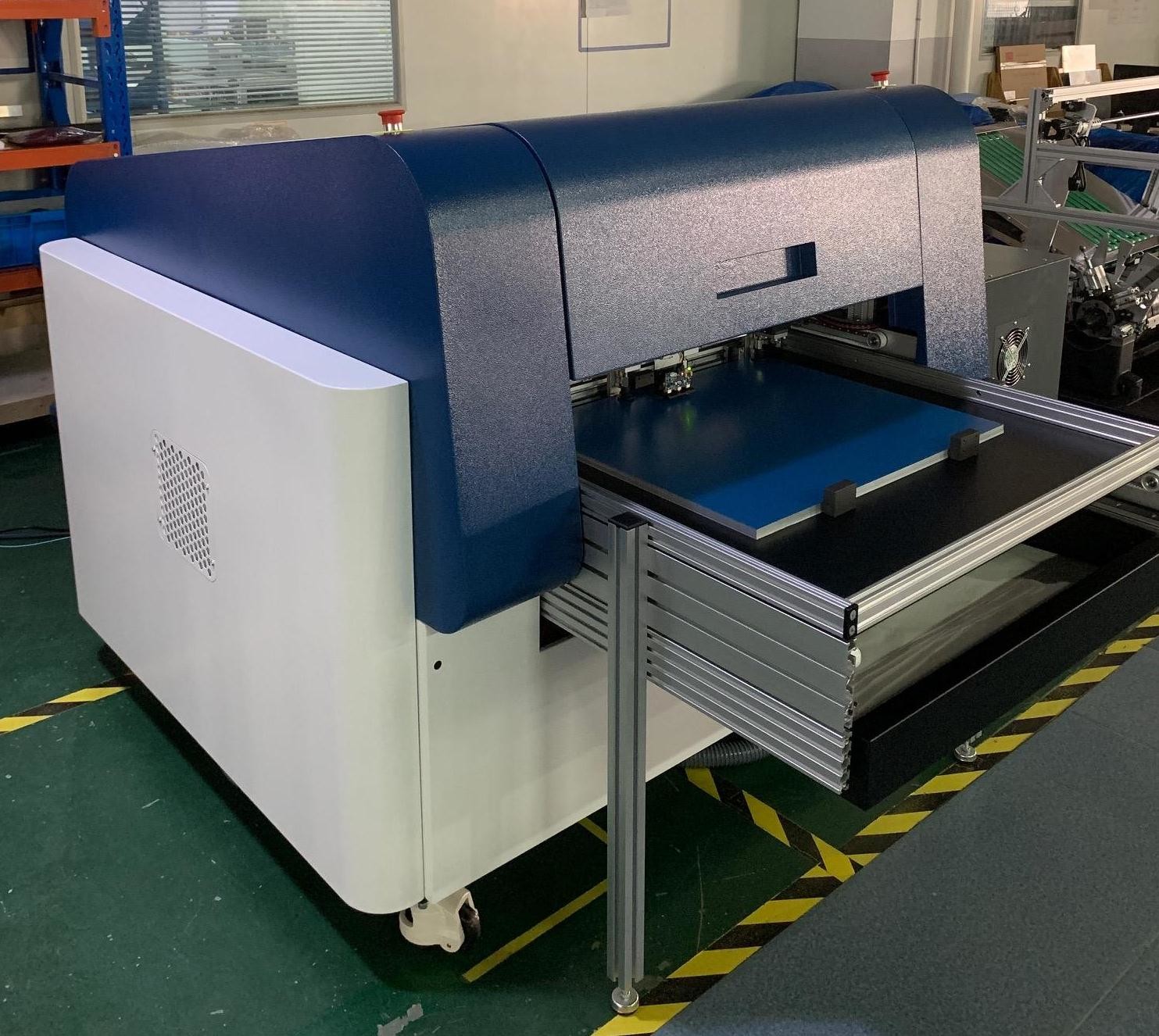

Plate Loading: Standard: Single Cassette Autoloader With Manual Plate Insert Function

Machine Size (W X Lx H)mm: 1450x1950x1290 (additional 600mm Length For Conveyor To Wash Unit)

Highlight:

25pph Offset Plate Making Machine

Preprinting Online Plate Making Machine

Online Thermal Offset Plate Making Machine

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: Ecoo T-400QS

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 20 Days

Payment Terms: L/C, T/T

Supply Ability: 500 Sets/Year

Gallery

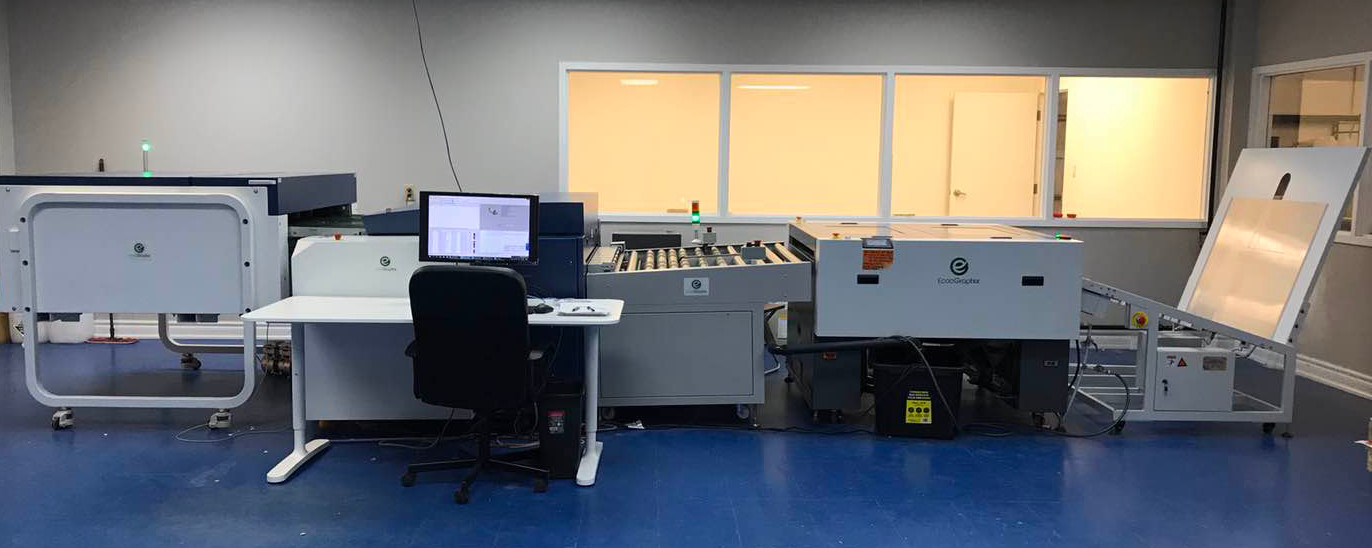

T-400 Prepress Online Thermal Offset Plate Making Machine

Product Description

Preprinting Full-Automatic Online Thermal CTP Plate Making Machine

Characteristics

Full-automatic plate making with Inline punch option
The machine comes with advanced features like automatic plate loading and unloading, as well as automated feeding and punching functions (if required), ensuring non-stop and seamless operation for maximum efficiency. With these impressive capabilities, the machine is well-equipped to handle any project thrown its way while maximizing productivity.

Linear motor
Besides rapid acceleration, the linear motor system provides exceptionally steady performance and precise positioning.

Motor direct drive drum
Implementing direct motor-driven drum technology reduces start-up time and significantly enhances production efficiency.

T-400 Prepress Online Thermal Offset Plate Making Machine 0

Specifications

T-400 QS Specifications
Model	T-400QS
Exposing Method	External Drum
Imaging System	825nm laser
Throughput	25plates/hour
Throughput	800 x 660mm, 2400dpi, Plate sensitivity 120mj/cm²
Plate Sizes	Max. 800mm x 660mm Min. 300mm x 300mm
Plate Thickness	0.15mm, 0.30mm
Resolution	Standard: 2400 dpi or 1200 dpi
Repeatability	0.01mm
Interface	Optical Fiber(Fiber-way)
Plate Loading	Standard: single cassette autoloader with manual plate insert function
Inline Punching System	Optional: Internal punching (maximum four sets of plate holes)
Machine Size (W x Lx H)mm	1450x1950x1290 (additional 600mm length for conveyor to wash unit)
Power Supply	CTP(single phase: 220V, Max power(Peak Value): 4KW) Simplified Autoloader(single phase: 220V; Max power(Peak Value): 900W) Multi-cassette Autoloader(single phase: 220V; Max power(Peak Value): 1100W)
Operation Environment	Recommended:21-25℃ Allowable Temperature: 15-30℃ Relative Humidity:40-70%

Size and footprint (Note: A Conveyor with a length of 600mm included, not showing in the below graph )
