Name: UV / CTCP Plate Production Equipment Platemaker Prepress CTP Plate Maker
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: EcooSetter UV-800 F/S/E
Price: 150000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Resolutions: 2400dpi

Plate Sizes: Max. 1163mm X 940mm, Min. 400mm X 300mm

Imaging System: 64CH; 48CH; 32CH

Throughput (Plates/Hour): 28; 22; 16, 1030mm X 800mm, 2400dpi

Plate Thickness: 0.15mm To 0.30mm

Media Type: Positive UV-CTP/CTCP Plate Or High Sensitive PS Plate

Interface: USB 2.0

Machine Size (WxLxH)mm: 2320x1080x960

Highlight:

UV Plate Production Equipment

CTCP Plate Production Equipment

Platemaker Prepress CTP Plate Maker

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: EcooSetter UV-800 F/S/E

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 25 Days

Payment Terms: L/C, T/T

Supply Ability: 5000 Sets/Year

Gallery

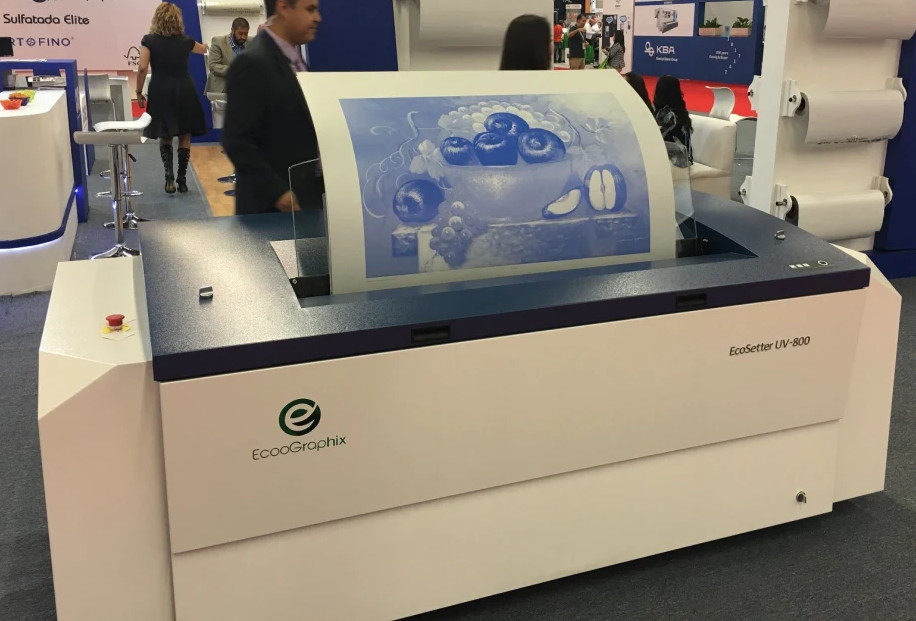

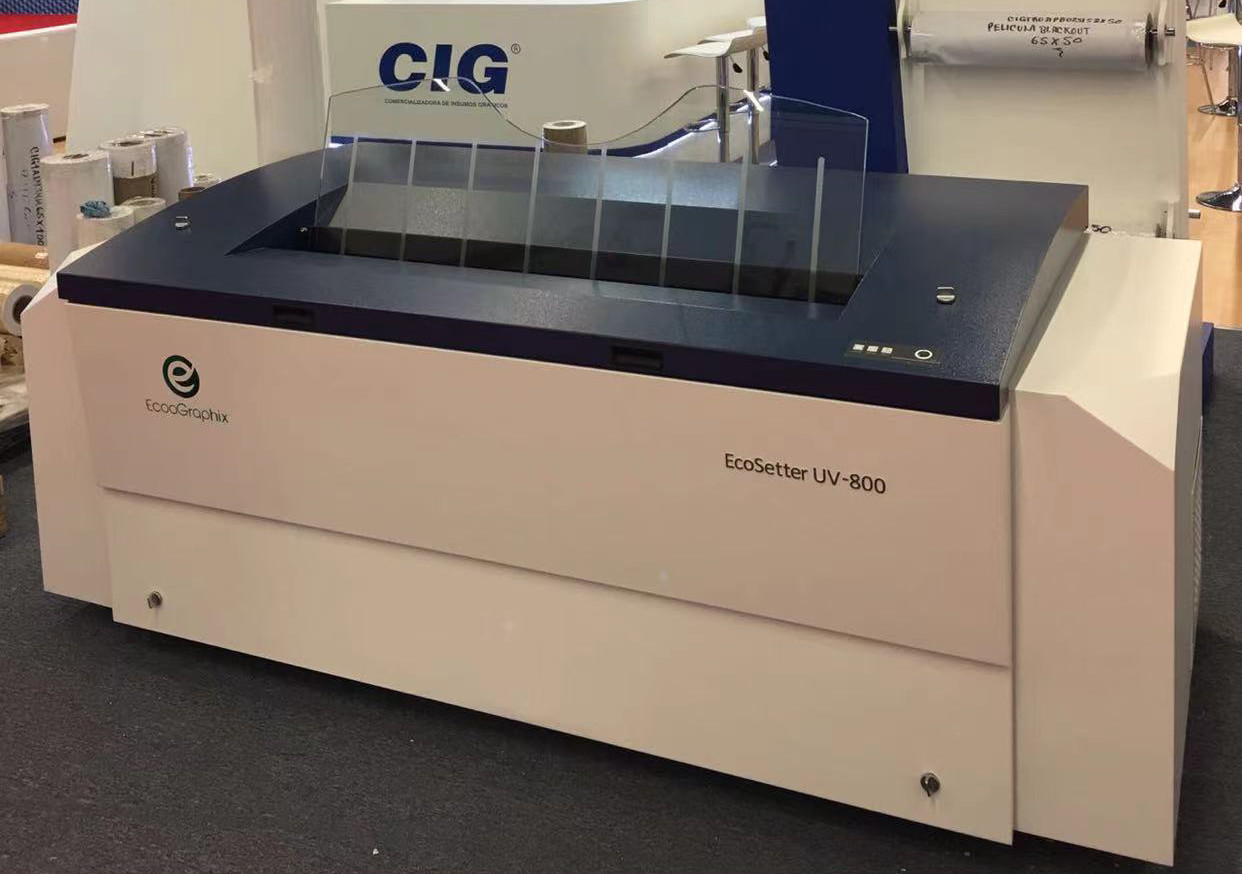

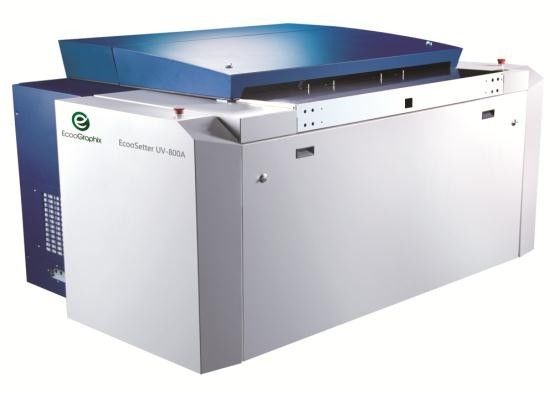

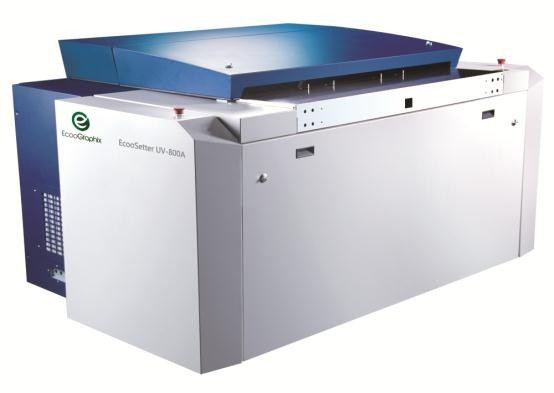

UV / CTCP Plate Production Equipment Platemaker Prepress CTP Plate Maker

Product Description

Computer To Plate Making Machine Prepress Equipment UV-CTP/CTCP

Application

The EcooGraphix UV-CTP/CTCP (CTP) Plate Making Machine is a vital tool for efficient short-run offset printing. By directly outputting images onto the CTCP plate through the UV-CTP machine, it eliminates the need for film and reduces labor. Get your prepress work done quickly and efficiently with this reliable machine.

Specification

ECOO UV-800 Series CTP Specifications

Model

UV-800F; UV-800S; UV-800E

Exposing Method

External Drum

Imaging System

64-channel; 48-channel; 32-channel, Discrete 405nm laser diode

Throughput

28plates/hour; 22plates/hour; 16plates/hour, 1030mm x 800mm, 2400dpi

Plate Sizes

Max. 1163mm x 940mm, Min. 400mm x 300mm

Exposing Size

Max. 1130mm x 884mm, Min. 260mm x 284mm

Media Type

Positive UV-CTP/CTCP plate or highly sensitive PS plate

Plate Thickness

0.15mm to 0.30mm

Resolution

2400dpi

Repeatability

±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)

Interface

USB 2.0

Plate Loading

Semi-automatic

Net Weight

900kg

Machine Size (WxLxH)mm

2320x1080x960

Power Supply Single phase:

220AC, + 6%, - 10%, Power Consumption: 4KW

Operation Environment

Recommended: 21-25ºC, Max.18-26ºC, Humidity:40-70%

ECOO UV-800 Series CTP Specifications
Model	UV-800F	UV-800S	UV-800E
Exposing Method	External Drum
Imaging System	64-channel	48-channel	32-channel
	Discrete 405nm laser diode
Throughput	28plates/hour	22plates/hour	16plates/hour
	1030mm x 800mm, 2400dpi
Plate Sizes	Max.1163mm x 940mm Min. 400mm x 300mm
Exposing Size	Max.1130mm x 884mm Min. 260mm x 284mm
Media Type	Positive UV-CTP/CTCP plate or high sensitive PS plate
Plate Thickness	0.15mm to 0.30mm
Resolution	2400dpi
Repeatability	±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface	USB 2.0
Plate Loading	Semi automatic
Net Weight	900kg
Machine Size (WxLxH)mm	2320x1080x960
Power Supply	Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW
Operation Environment	Recommended: 21-25ºC, Max.18-26ºC, Humidity:40-70%
