Home /Products/CTP Plate Machine/Automatic Load 75 Plates/Hr With Multi Cassette CTP Plate Autoloader

Automatic Load 75 Plates/Hr With Multi Cassette CTP Plate Autoloader

1 SET
MOQ
Negotiable
Price
Automatic Load 75 Plates/Hr With Multi Cassette CTP Plate Autoloader
Features Gallery Product Description Request A Quote
Features
Specifications
Type: CTP Autoloader
Plate Feeding Speed: ≤ 75 Plates/hour
Plate Loading Quantity: 4 Cassette (100 Pieces Per Cassette)
Plate Size: Max. 1163 X 940mm, Min. 400 X 300mm
Plate Thickness: 0.15mm-0.40mm
Plate Loading Way: Manually Stack Plate In Cassette Or On Loading Platform
Vacuum Suction (Plate): -0.50Mpa
Power Supply: Single Phase: 220V, Max Power (Peak Value): 1,100W
Highlight:

Multi Cassette CTP Plate Autoloader

,

75 Plates/Hr CTP Plate Autoloader

,

Automatic Load CTP Plate Autoloader
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-MCU800
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 25 Days
Payment Terms: L/C, T/T
Supply Ability: 2000 Sets/Year
Product Description

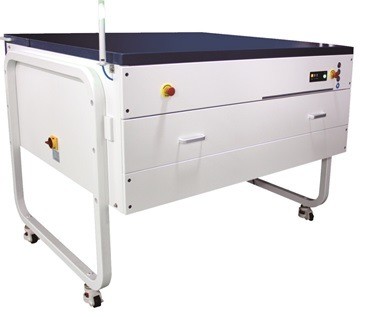

Multi Cassettes CTP Printing Plate Autoloader



Specification



ECOO Cassette Autoloader Technical Specification
Model MCU800(multi)
Cassette Type Multi cassette (4 cassettes)
Plate Feeding Speed ≤ 75 plates/hour
Plate Size Max. 1,163 x 940mm, Min. 400 x 300mm
Plate Thickness 0.15mm-0.40mm
Interface RS 485
Plate Loading Way Manually stack plate in cassette or on loading platform
Plate Loading Quantity 4 cassette (100 pieces per cassette)
Net Weight 560KG
Device Size 1,683 x 1,460 x 1,280mm (WxDxH)
Air Supply > 0.65Mpa
Vacuum Suction (Plate) -0.50Mpa
Vacuum Suction (Paper) -0.40/-0.30MPa (different paper)
Power Supply Single phase: 220V; Max power (peak value): 1,100W
Environment Operating temperature range: 15-30ºC,
Recommended temperature: 21-25ºC, Humidity: < 70%



Tag:

offset printing ctp machine

offset printing ctp plate machine

automatic computer to plate machine
