Name: CTP Plate Processor Wide Format Developing Machine 0.15 - 0.4mm
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: Ecoo Processors
Price: 150000.00 USD
Availability: InStock

CTP Plate Processor Wide Format Developing Machine 0.15 - 0.4mm

1SET

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: CTP Plate Processor

Plate Thickness: 0.15-0.4mm

Plate Sizes: Max.1130mm X 920mm Min.400mm X 300mm

Processing Speed: Speed Adjustable (10 To 60 Seconds) 400-2400 Mm/minute

Developing Capacity: 46/58/70/78L

Drying Temperature: 20-65°C Can Be Adjusted

Electricity Requirement: 220V (208 V-240V) Single-phase 50 Or 60hz

Highlight:

Wide Format CTP Plate processor

0.4mm CTP Plate processor Machine

CTP Plate Processors Developing Machine

Basic Infomation

Place of Origin: CHINA

Brand Name: EcooGraphix

Certification: CE, ISO900

Model Number: Ecoo Processors

Payment & Shipping Terms

Packaging Details: Standard Exporting Wooden Box

Delivery Time: 20-30 days

Payment Terms: L/C, T/T

Supply Ability: 5000 SETS/YEAR

Gallery

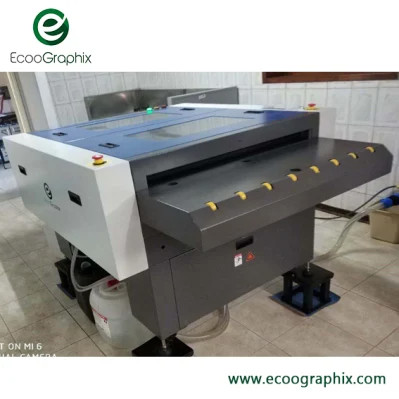

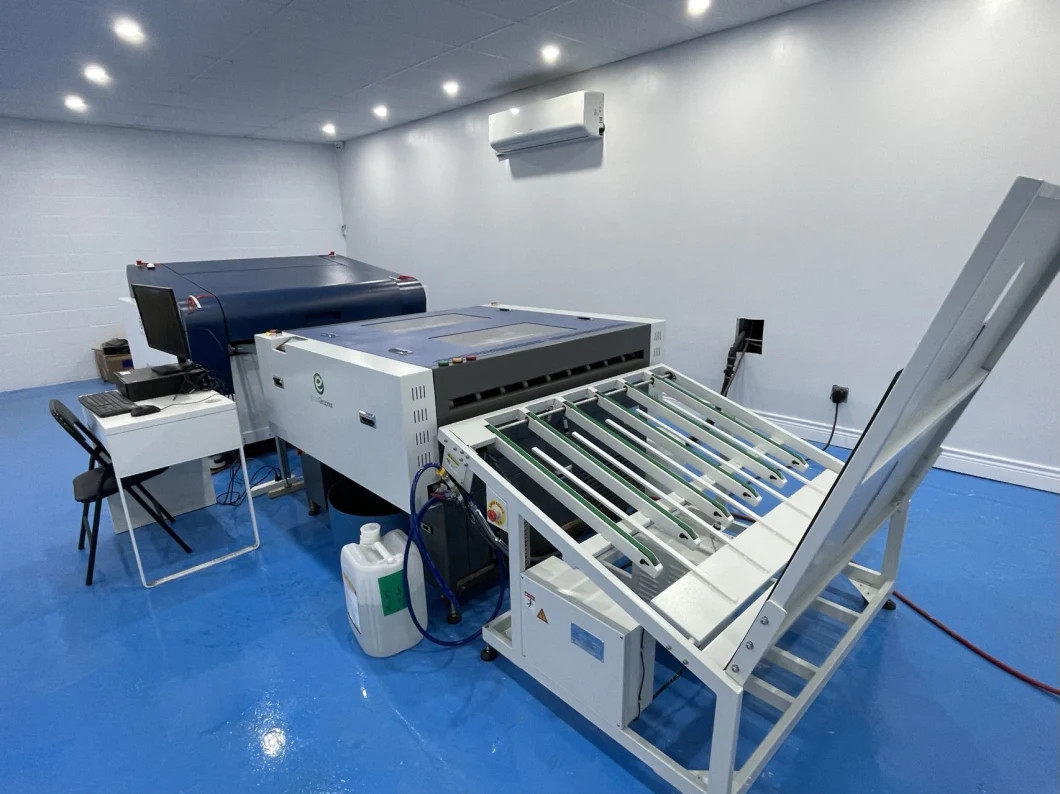

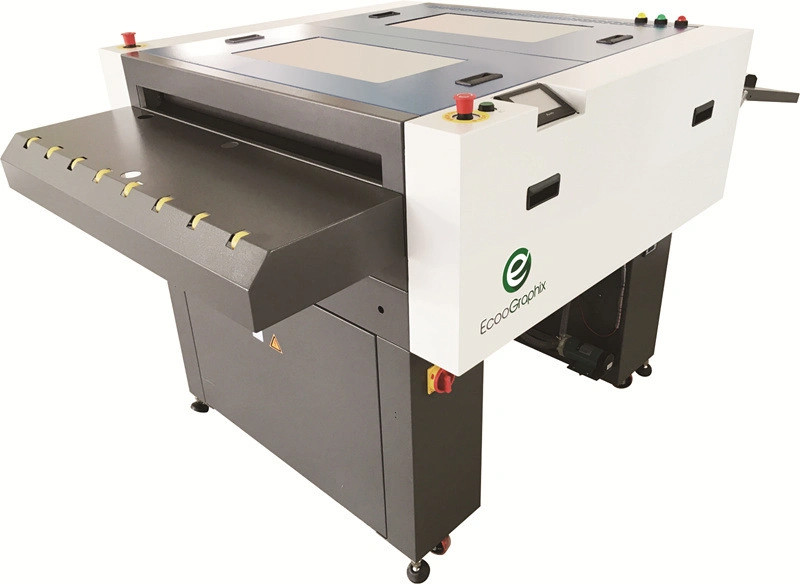

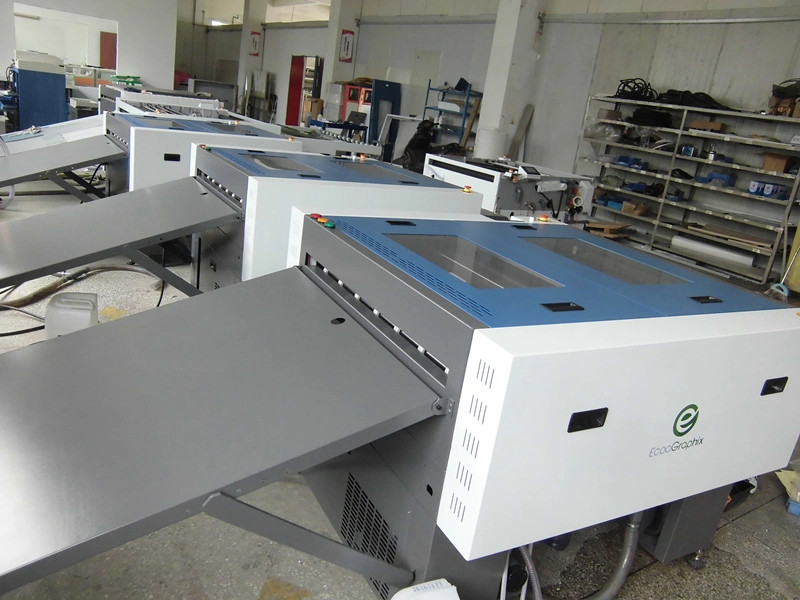

CTP Plate Processor Wide Format Developing Machine 0.15 - 0.4mm

Product Description

Ecoographix Wide Format Developing Machine CTP Plate Processors

Application

To successfully process PS or CTP plates after exposure, a processing machine is essential. The EcooGraphix CTP Processor is a versatile device that can work with various types of Thermal, CTCP, or UV-CTP platesetters from brands like Kodak, Screen, Agfa, Creo, Amsky, or Cron. With this tool, you can streamline your plate processing operations and achieve faster turnaround times.

Characteristics

This printer boasts user-friendly operation and easy maintenance, while meeting all safety standards. Its robustness, reliability, and consistency guarantee an optimized plate processing path, supported by a unique roller design. Plus, it's environmentally friendly and energy-saving. Overall, this printer is a great choice for any printing needs.

Specifications

Ecoo Processors Series
Model	*P-900*	*P-1150*	*P-1250*	*P-1500*
Page Size	280-860 mm	280-1100 mm	280-1200 mm	290-1500 mm
Plate Thickness	0.15-0.4mm
Processing Speed	Speed adjustable(10 - 60 seconds) 400 - 1000mm/minute
Temperature	10 to 45 ºC can be adjusted (automatic temperature control, cooling system)
Developing Capacity	46L	58L	70L	78L
Drying Temperature	20-65 ºC can be adjusted
Electricity Requirement	220 V (208 V - 240 V) single-phase 50-60hz
Working Power	4.5KW	5KW	5.5KW	6.5KW
Weight	355kg	420kg	512kg	600kg
Machine Size	1420 x 1460 x 1280mm
