Model: Ecoo coating-760
Brief Introduction:

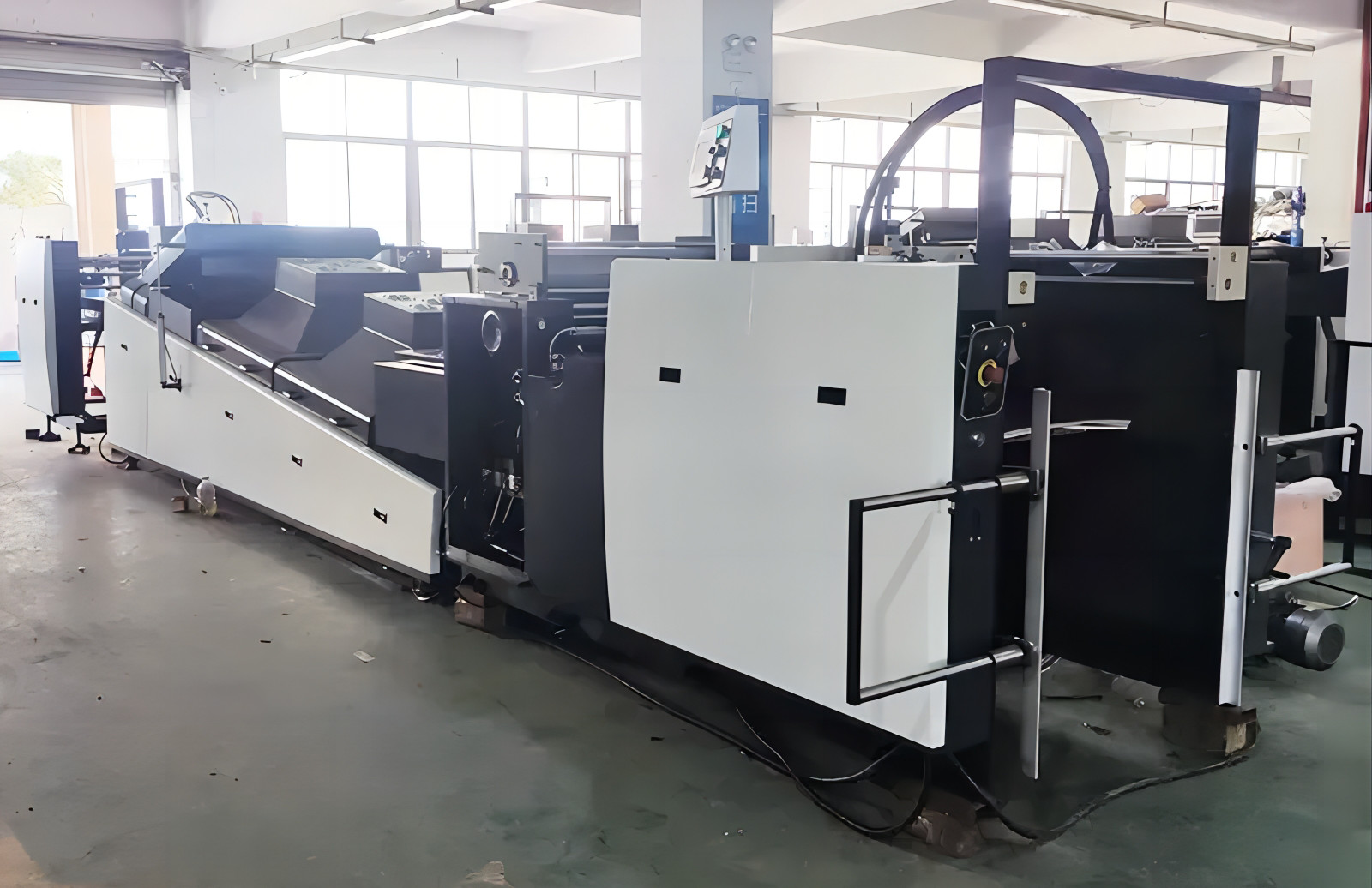

Spot uv coating machine is a machine that coats a specific part of the paper surface with a layer of colorless transparent paint. After leveling and curing, it can form a thin and uniform transparent and bright layer on the surface of the part of the paper.
Spot uv coating machinecan use glazing oil or UV oil for partial glazing or full glazing on the paper surface. It adopts automatic paper feeding method, automatic separation and pressure of empty sheets, and three-roller reverse oiling. It is an ideal local oiling equipment. The photosensitive imaging method is used when making the glazing plate. To ensure that the local UV glazing part is consistent with the size of the printed image.
Specification:
| Model | Ecoo coating-760 |
| Max.sheet size | 760x595mm |
| MIN.sheet size | 290X270mm |
| Sheet weight | 80-400gsm |
| Production speed | 6000 sheet/h |
| Power | 45kw |
| UV lamp | 3 pcs x 8 kw |
| IR lamp | 18 pcs x 1 kw |
| Paper feed heigh | 1050mm |
| Paper stack height | 920mm |
| Weight | 65000kg |
| Dimension | 9500x2050x2000mm |
Features:
The whole machine has a one-key acceleration function. After the main machine accelerates, the oven, paper delivery, feeder, and metering roller will all change according to the speed of the main machine. Use metering roller anilox roller to oil and then transfer to blanket.
Main Machine Parts:

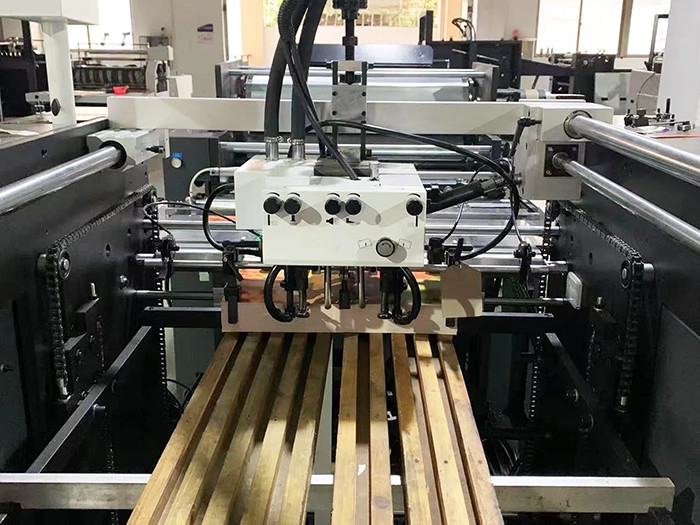

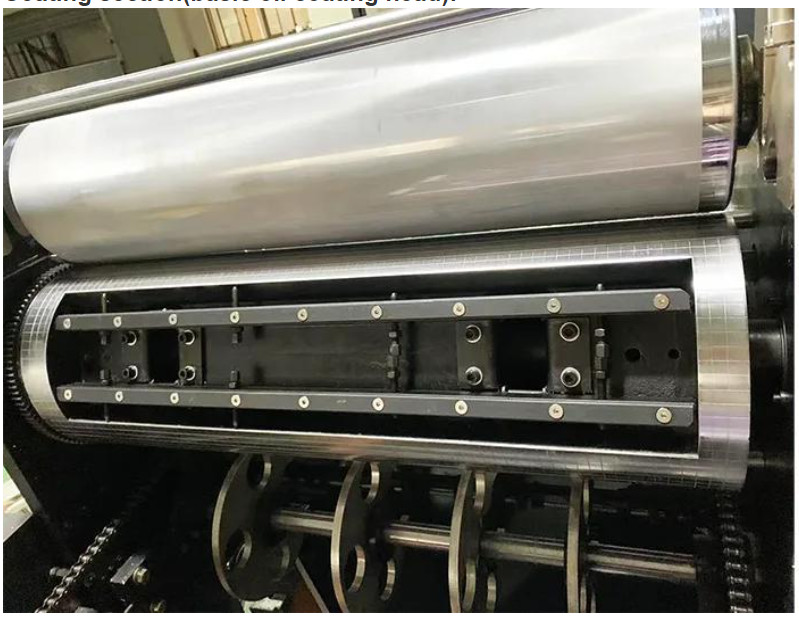

Automatic delivery system; Coating section(basic oil coating head); IR Drying and UV Curing System; Cooling system;
FAQ:
1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.
2. What is your warranty?
Normally 1 year.
3. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.
4. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
