High Speed Digital Label Die Cutter 9m/min 330mm Width

1SET
MOQ
Negotiable
Price
High Speed Digital Label Die Cutter 9m/min 330mm Width
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: High Speed Digital Label Die Cutter
Application: Paper Packaging Materials, Stickers Products
Max. Media Roller: Diameter 450mm
Cutting Media Width: 40-350mm
Max.Label Width: 330mm
Max.Label Length: 600mm
Cutting Blades: (Standard) 4 PCS
Cutting Speed: Max.9m Per Minute (Depend On Label Shape And Size)
Slitting Blades: (Standard 4 PCS )Max.15PCS
Power: 110-127VAC 50-60Hz
Machine Size (W*D*H): 2100*1195*1575cm
Highlight:

High Speed Cutter Cutting Machine

,

Ecoographix Cutter Cutting Machine

,

Digital Label Die Cutter Cutting Machine
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: EcooSetter VD3350
Payment & Shipping Terms
Packaging Details: Standard Exporting Package
Delivery Time: 45-50 days
Payment Terms: L/C,T/T
Supply Ability: 500 Sets/Year
Product Description

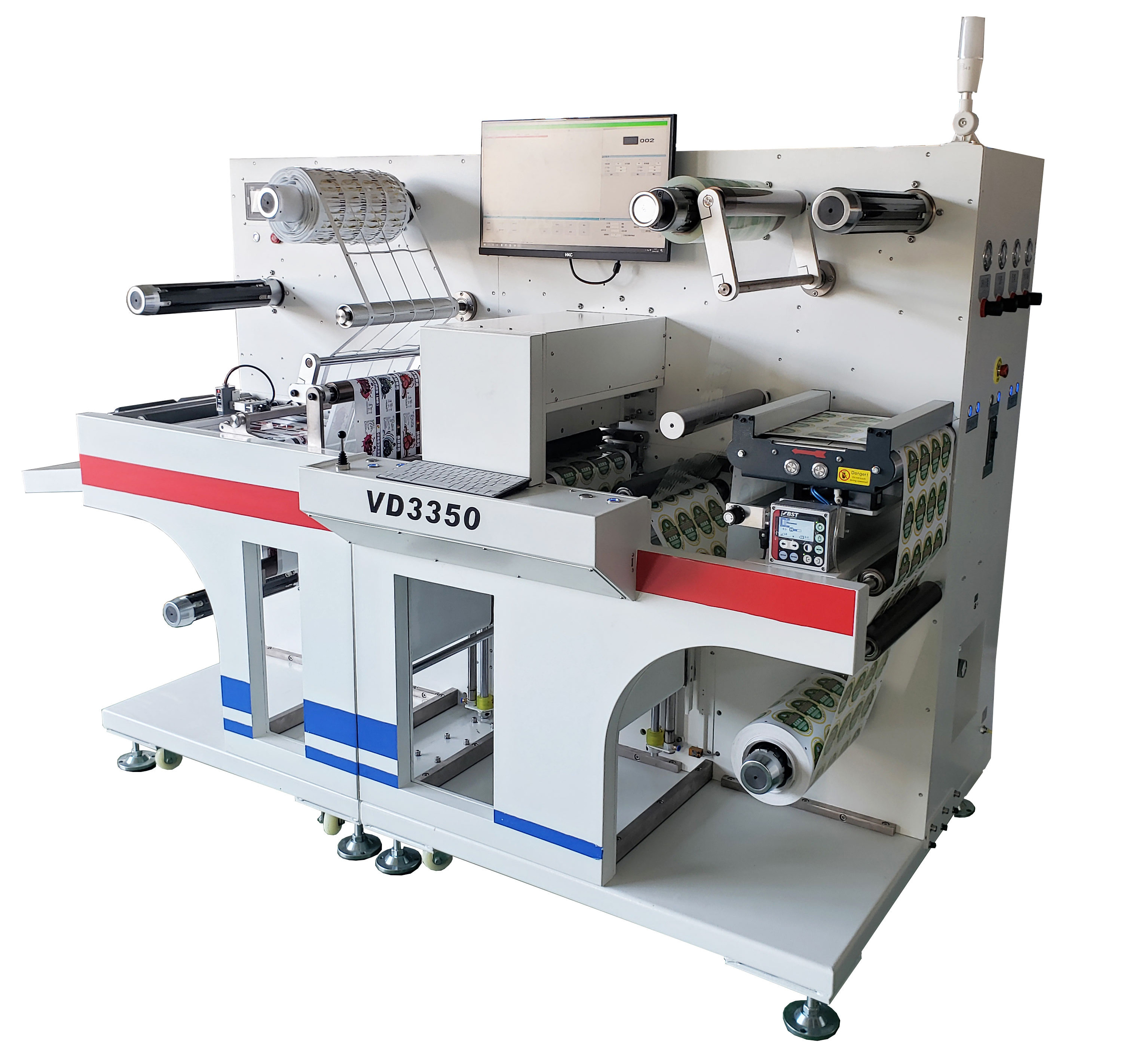

Ecoographix High Speed Digital Label Die Cutter Cutting Machine
Model: EcooSetter VD3350

VD3350 is an all-in-one digital label finisher equipped with cutting, laminating, slitting, sheeting, and matrix removal capabilities. The machine achieves a maximum cutting speed of 9M/min (for 10cm x 10cm squares) and features automatic job changing by serial number. Most operations are automated, including cutting head selection. The cutting software displays estimated completion times for each job, and a CCD camera system ensures fine cutting accuracy.
Key Advantages
  • Fast and high precision with full-servo motor
  • Fully automatic tension and feeding control
  • Intelligent position detection with automatic file selection
  • Standard 4 cutting heads with automatic distance adjustment
  • Supports 3 units cutting simultaneously
  • Intelligent cutting with trajectory optimization
Technical Specifications
Model Ecoo-VD3350
Max. media roller Diameter 450mm
Cutting media width 40-350mm
Max.label width 330mm
Min.label length 10mm
Max.label length 600mm
Cutting speed Max.9m per minute (depends on label shape and size)
Cutting blades 4 pcs (standard)
Slitting blades 4 pcs (standard), max.15pcs
Cutting tracking CCD camera
Die-cutting technology Tungsten steel rotary blades
Cutting precision 0.1mm (duplicate)
Slitting speed Max. 100m per minute
Slitting width 10-330mm
Slitting precision 0.1mm
Machine size (W*D*H) 2100*1195*1575CM
Machine weight 1200kg
Power 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS
Warranty 1 year (excluding high consumable parts)
Options Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter
Machine Features
1. High Precision Feeding System
Utilizes ultrasonic web-guide system to ensure perfect feeding alignment.
2. Cold Laminating
Includes cold laminating function for bright, perfect labels. Optional back liner removal available.
3. Digital Die-Cutting System
Features high precision screw transmission system with individual control for 4 cutting heads and automatic distance adjustment.

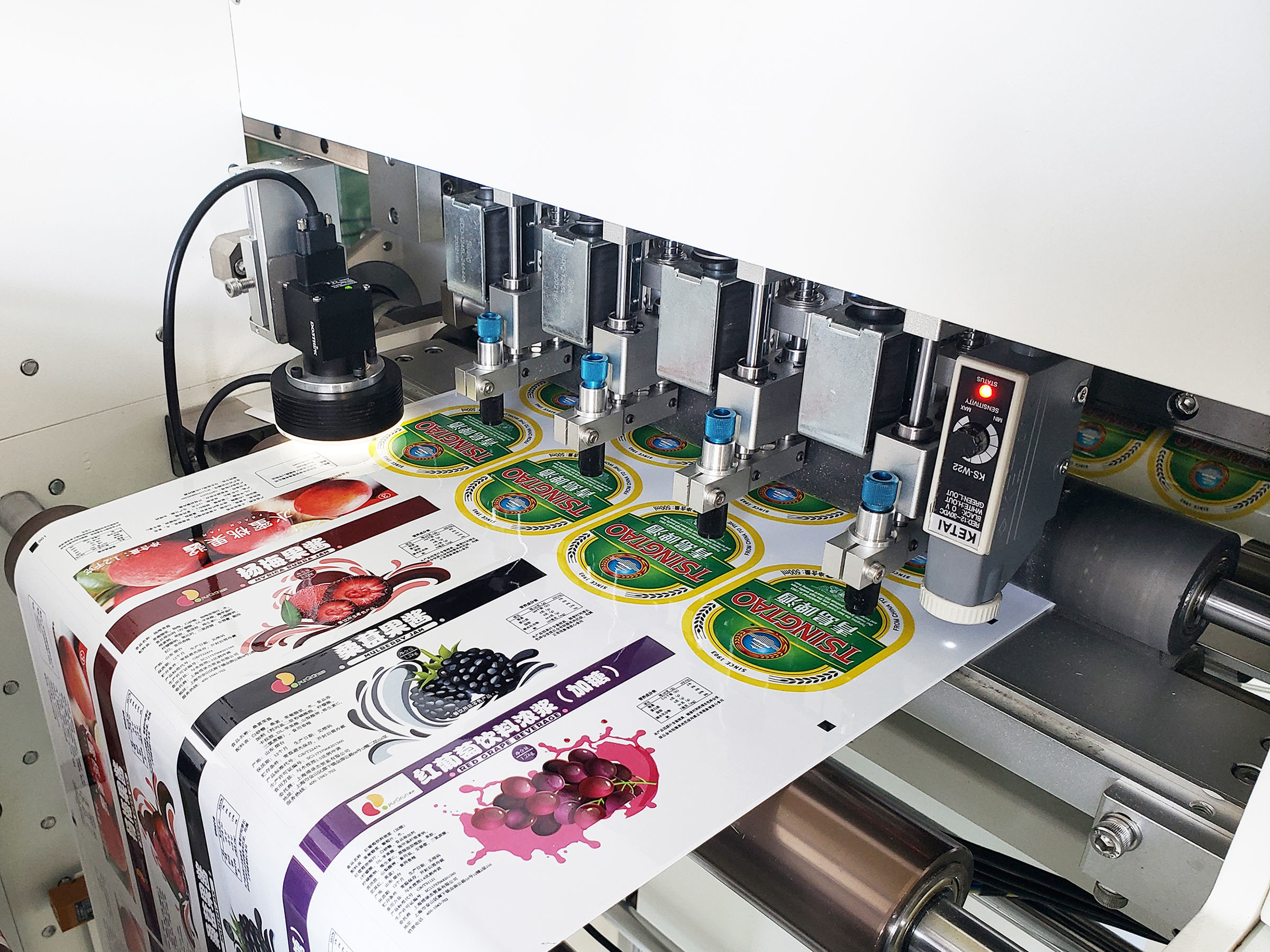

4. CCD Identify System
CCD camera system recognizes sequences for automatic file changing and next graphic cutting.
5. Precision Slitting System
Rotary slitting mode supports up to 15 blades at speeds up to 60m per minute.
6. Waste Removing System
Precision mechanical design ensures uniform roller rotation for continuous waste removal and clean finished labels.
7. Sheet Cutter
Optional built-in Pc350 Sheet Cutter performs synchronous die-cutting and sheet cutting.

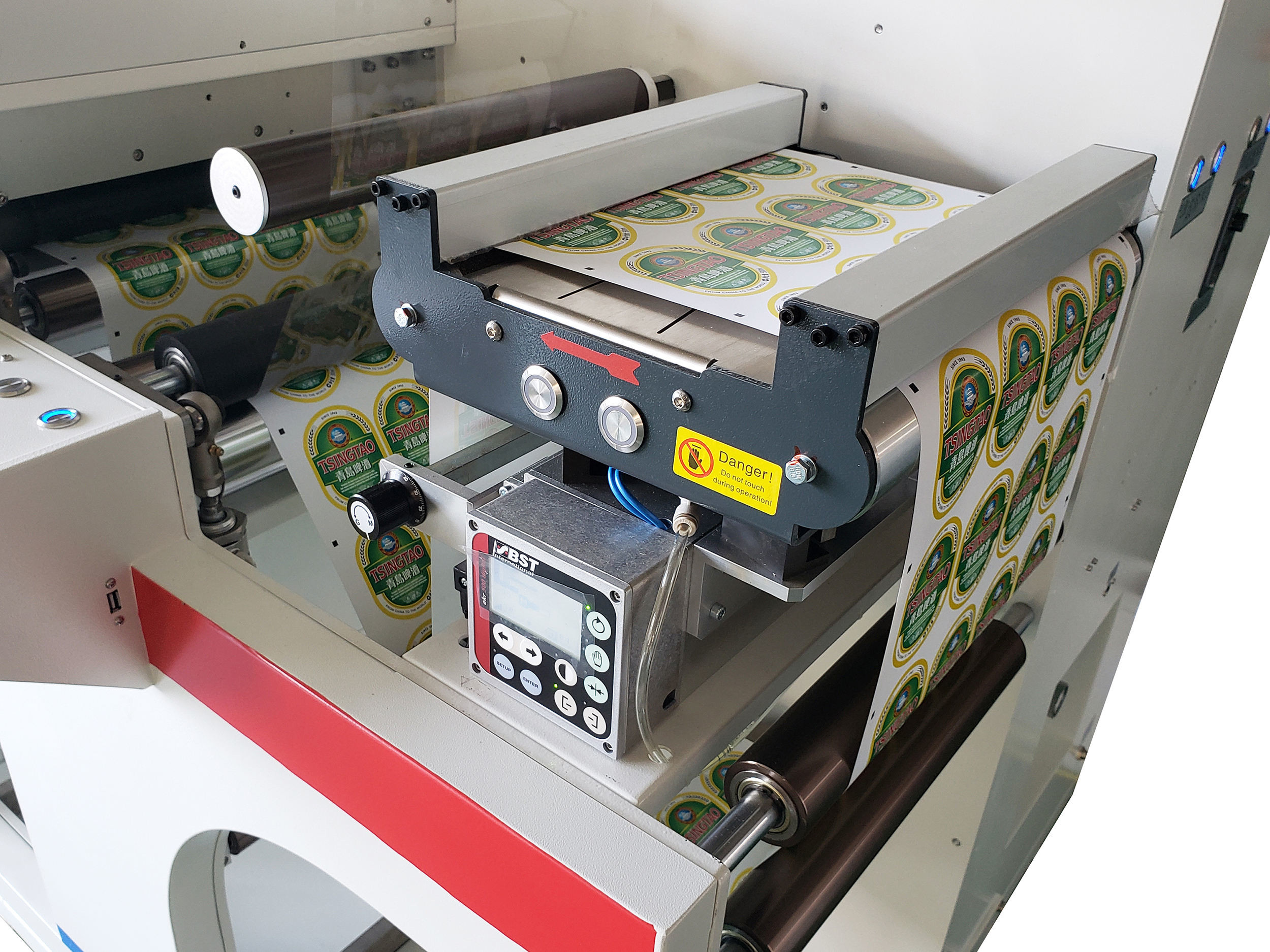

High Speed Digital Label Die Cutter 9m/min 330mm Width 0 High Speed Digital Label Die Cutter 9m/min 330mm Width 1 High Speed Digital Label Die Cutter 9m/min 330mm Width 2
Frequently Asked Questions
What are your main products?
Ecoographix specializes in printing machines and consumables, covering both digital and offset printing solutions for packaging and book printing. We serve hundreds of customers worldwide with high-quality Chinese printing products.
What is your warranty?
One year warranty for the machine (excluding high consumable parts).
What about installation and after-sales support?
Our engineers can assist with installation and provide necessary training. The buyer is responsible for round-trip airfare, service charges, and local accommodation. We offer 24/7 support for any questions or issues.
