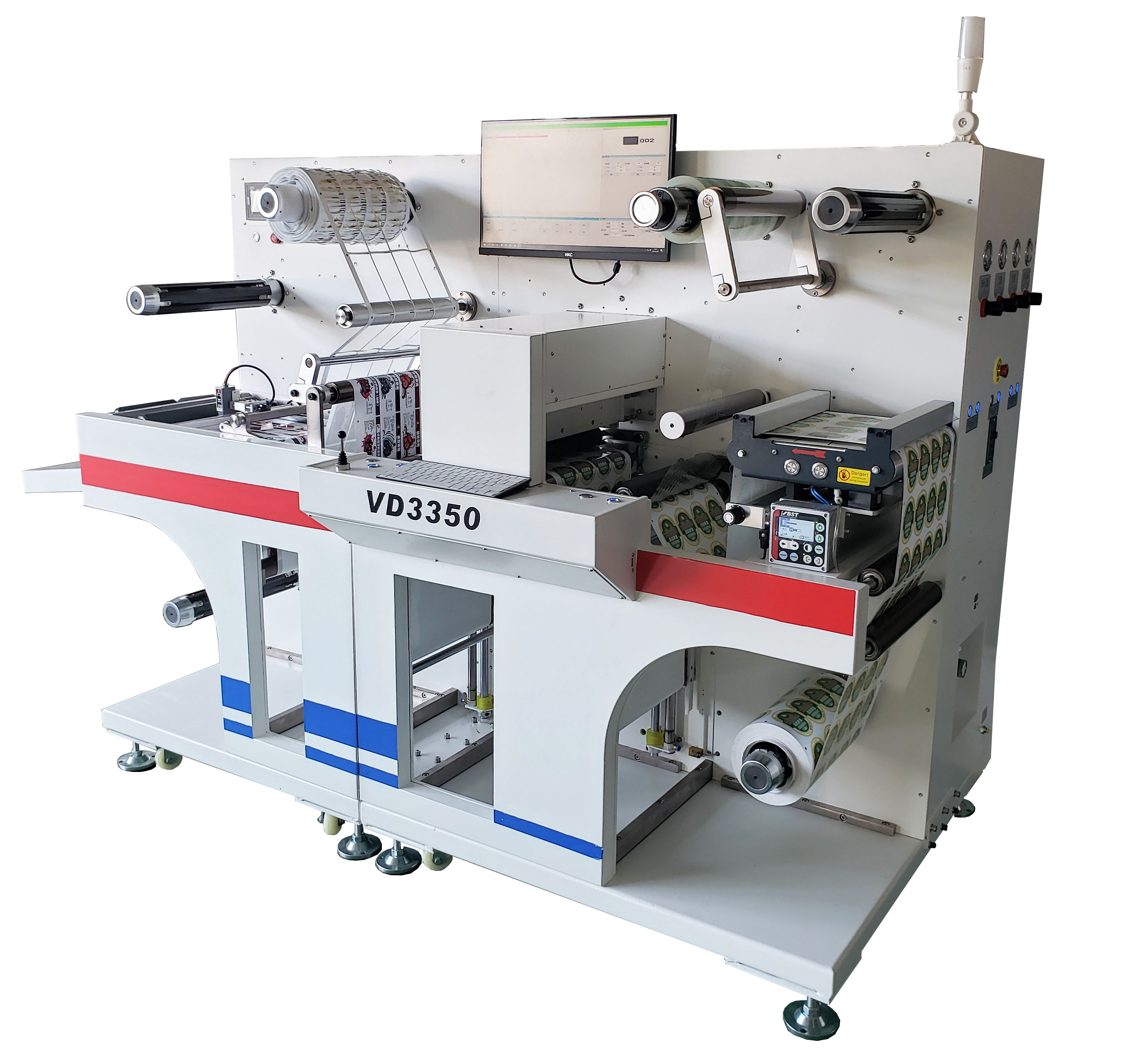

The highlight of machines:
1. Cutting width is 330mm.
2. Cutting speed is 9m per minute.
3. CCD camera track the job.
4. Built-in BST web guide, laminator, sheet cutter.
5. Full servo motors drive the machine to running.
Specifications:
| Model | ECOO-VD3350 |
| Max. media roller | Diameter 450mm |
| Cutting media width | 40-350mm |
| Max. label width | 330mm |
| Min. label length | 10mm |
| Max. label length | 600mm |
| Cutting speed | Max. 9m per minute (Depend on label shape and size) |
| Cutting blades | (Standard) 4 pcs |
| Slitting blades | (Standard 4 pcs) Max. 15pcs |
| Cutting tracking | CCD camera |
| Die-cutting technology | With tungsten steel rotary blades |
| Cutting precision | 0.1mm (Duplicate) |
| Slitting speed | Max. 100m per minute |
| Slitting width | 10-330mm |
| Slitting precision | 0.1mm |
| Machine size(W*D*H) | 2100*1195*1575CM |
| Machine weight | 1200kg |
| Power | 110-127VAC 50-60HZ,1000WATTS/220-240VAC 50-60HZ, 1000WATTS |
| Warranty | 1 year (Besides high consumable parts) |
| Options | Cutting head/ Slitting unit/ Film back liner removal/ Sheet paper cutter |

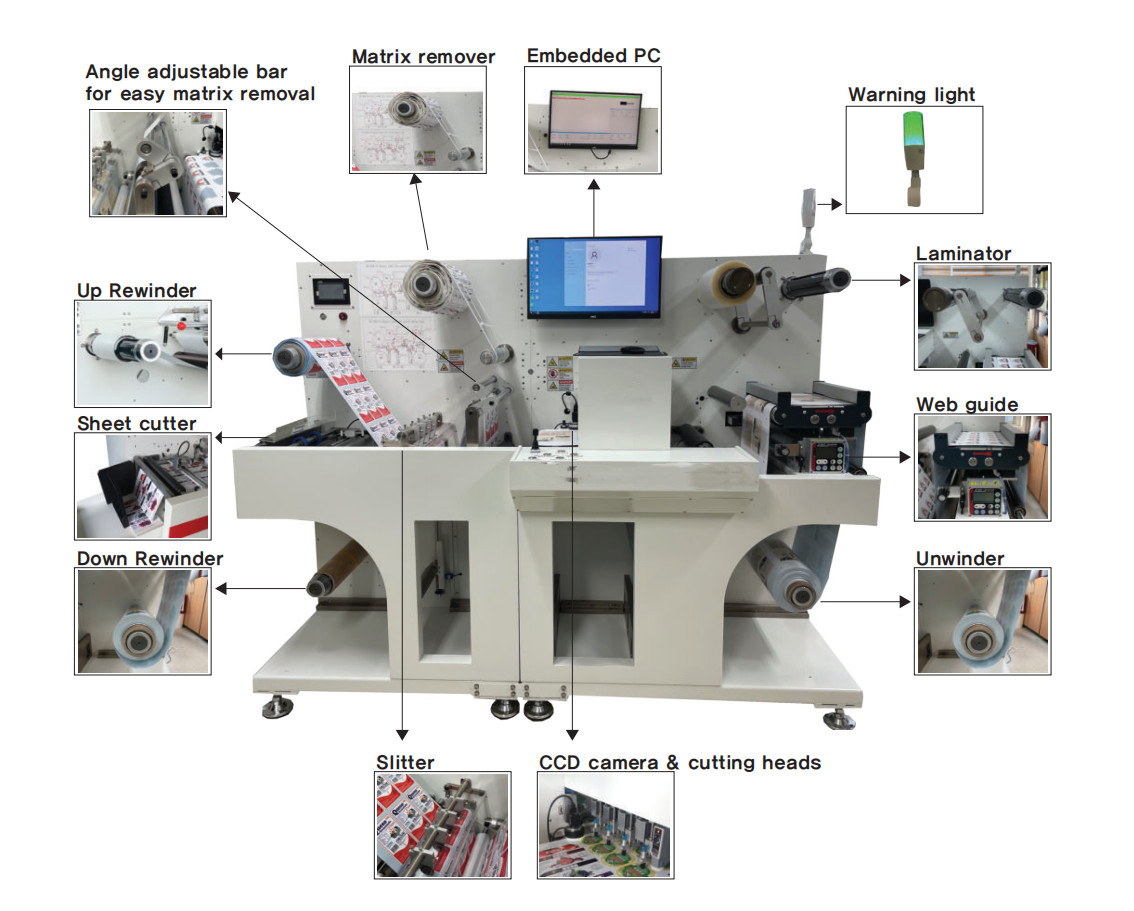

Machine Spare Parts:

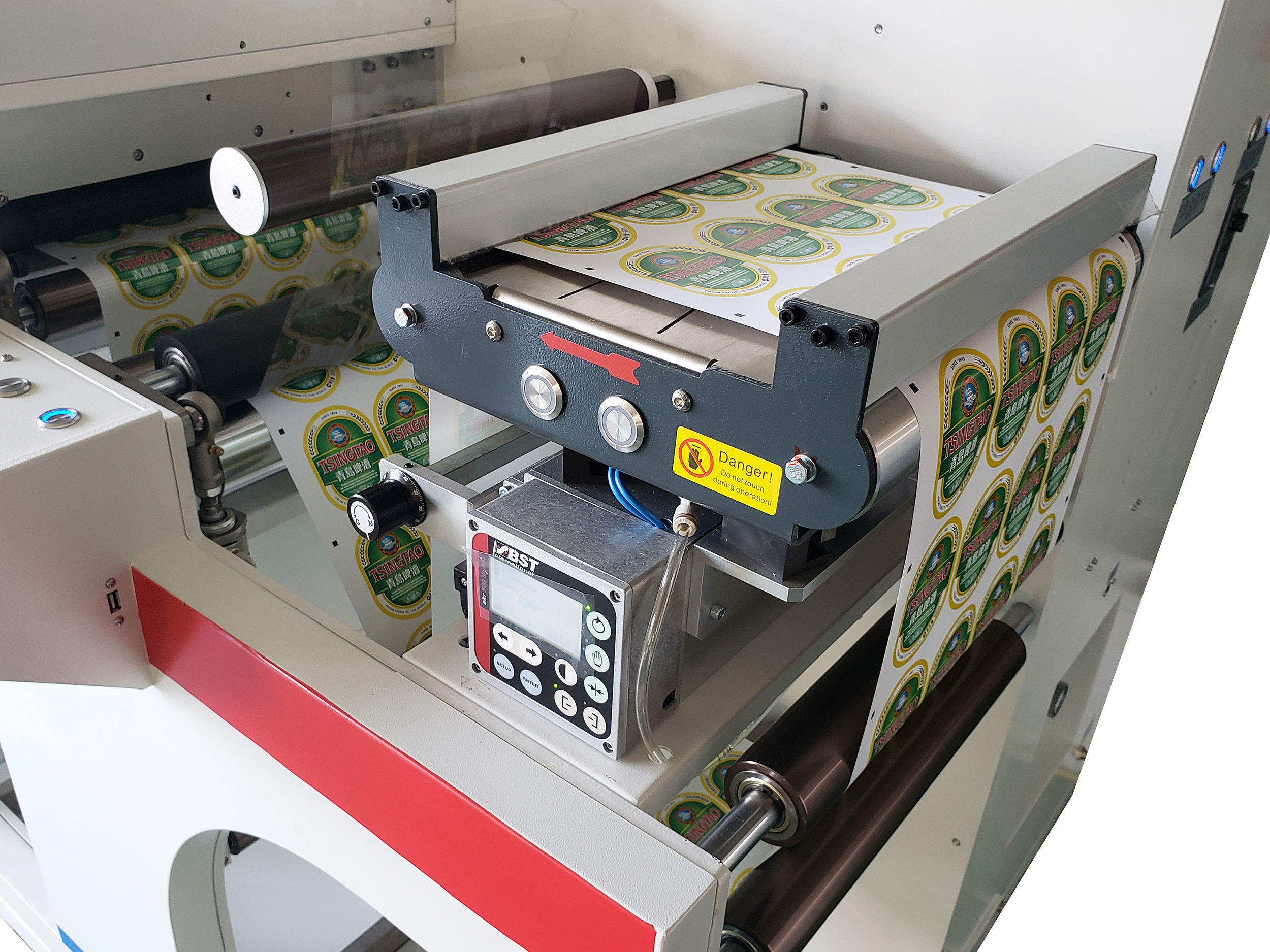

1. High precision feeding system:
Utilize the ultrasonic web-guide system, it makes sure the feeding perfectly.
2. Cold laminating
It has cold laminating function, your label will be bright and perfect. The back liner removal is optional.
3. Digital die-cutting system
VD3350 Digital label die-cutter utilizes high precision screw transmission system. Max soeed can be 9m per minute. Individual control for the 4 heads, combining with the function of auto adjust the heads distance, to make the every single head on or off.
4. CCD identify system
With the CCD camera position and identify system, to recognize the sequence, to reach the function of changing file and cutting next graphics automatically.
5. Precision slitting system
Utilize rotary slitting mode, can install max.15 blades, high speed with 60m per minute, instead of traditional slitting equipment completely.
6. The waste removing system
The precision machinery design can control the roller rotating uniformly, avoid removing waste discontinuously due to unstable pressure, keep finishing labels clean.
7. Sheet Cutter
The optional built-in Pc350 Sheet Cutter, can be inline with the main Die-cutting, to perform the synchronous die-cutting and sheet cutting.
Producing And Packaging:
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
