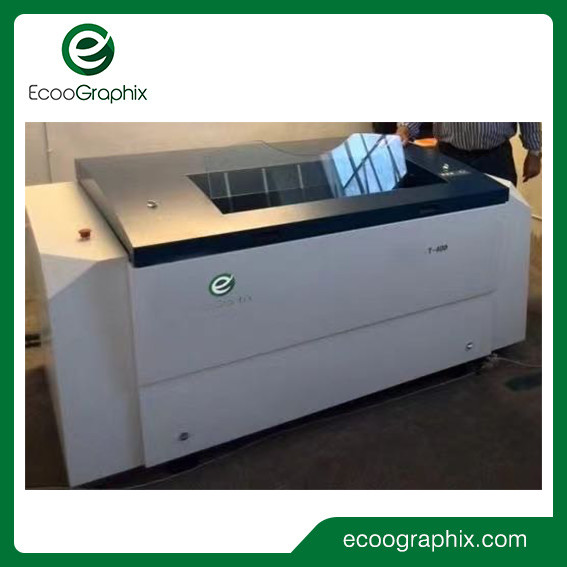

UV-400QA Full-automatic online CTP
| UV-400 QA Specifications | |
| Model | UV-400QX-SAL |
| Exposing Method | External Drum |
| Imaging System | 400-410nm laser diode |
|
Throughput
|
45plates/hour channel |
| 800 x 660mm, 2400dpi, | |
| Plate Sizes | Max.800mm x 660mm Min.235mm x 335mm |
| Plate Thickness | 0.15mm, 0.30mm |
| Resolution | Standard: 2400 dpi or 1200 dpi |
| Repeatability | 0.01mm |
| Interface | Optical Fiber(Fiber-way) |
| Plate Loading | Standard: single cassette autoloader with manual plate insert function |
| Inline punching System | Optional: internal punching (maximum four sets of plate holes) |
| Machine Size (W x Lx H)mm |
1450x1950x1290 (additional 600mm length for conveyor to wash unit) |
| Power Supply |
CTP(single phase:220V, Max power(Peak Value): 4KW) Simplified Autoloader(single phase:220V; Max power(Peak Value): 900W))
|
| Operation Environment |
recommended:21-25℃, allowable temperature: 15-30℃,relative humidity:40-70% |
FAQ:
1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers),positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
Attention:
Before installation, please measure the thickness of blanket for adjusting the press accurately;
While installation, please use the constant wrench to tighten gradually;
After installation, please clean the rubber surface and ready for print;
During the use, please often use the special solvent to clean the rubber surface for extending the useful time.
