Commercial Printing ECOO-G Thermal Processless Plate with 800-850 nm Spectral Sensitivity and 100,000 Impressions Run Length

$3.80/㎡
Price
Commercial Printing ECOO-G Thermal Processless Plate with 800-850 nm Spectral Sensitivity and 100,000 Impressions Run Length
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Commercial Printing
Long Impression: 100,000 Impressions Actual Run Length Depends On Printing Conditions
100,000 Impressions Actual Run Length Depends On Printing Conditions: 130-150 Mj/ M²
Spectral Sensitivity: 800-850 Nm
Image Color: Blue
Highlight:

Spectral Sensitivity 800-850 nm Thermal Plate

,

Commercial Printing Ecoographix Thermal Processless Plate

,

Commercial Printing Thermal Plate
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO,CE
Model Number: ECOO-G
Payment & Shipping Terms
Packaging Details: Standard Exporting Plywood Boxes
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 200, 000 Square Meter/Year
Product Description

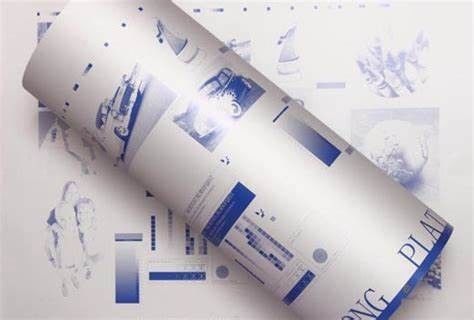

ECOO-G Thermal Processless Plate
Product Specifications
Model ECOO-G
Plate Type Non-ablation thermal-negative type
Application High grade commercial and newspaper printing
Substrate Electrolyte graining and Anodized AL substrate
Thickness 0.15mm / 0.30mm
Maximum Short Grain Width Maximum width 1280 mm
Spectrum Scope 800-850 nm
Photosensitive Wave Length 830 nm
Platesetter Various dominant thermal platesetters in the market
Image Color Blue
Low-energy Imaging 130-150 mj/m²
Latent Image Stabilization Period ≤7 days
Recommended Screen Method 1-99 @200 Lpi AM / 20u FM and mixture
Start-up Paper Number <50 sheets
Safety Light 1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light
Processing Without processing, directly on press
Run Length 100,000 impressions (Actual run length depends on printing conditions)
Shelf Life 12 months under recommended conditions
Transportation Packed in seal and stored by means of preventing from light/moisture, over heat and high humidity
Storage Recommended condition: 18℃-24℃, 40%-50% RH
Commercial Printing ECOO-G Thermal Processless Plate with 800-850 nm Spectral Sensitivity and 100,000 Impressions Run Length 0

EcooGraphix offers a wide range of printing plates for overseas markets.

Product Range
  • ECOO-G Thermal Chemistry-free CTP Plate, negative-working, no process required
  • ECOO-CTCP CTCP Plate
  • ECOO-ES Thermal CTP Plate, single layer, positive-working
  • ECOO-ED Thermal CTP plate, double layer, positive-working
  • ECOO-TSR Thermal CTP plate, double layer, positive-working
  • ECOO-CTCP-ES Positive CTCP Plate, single layer
  • ECOO-CTCP-D Positive UV-CTCP Plate, double layer
