8up Automatic CTP Systems Thermal Computer To Plate CTP Offset Prepress

8up Automatic CTP Systems Offset Prepress Computer To Plate-Thermal CTP

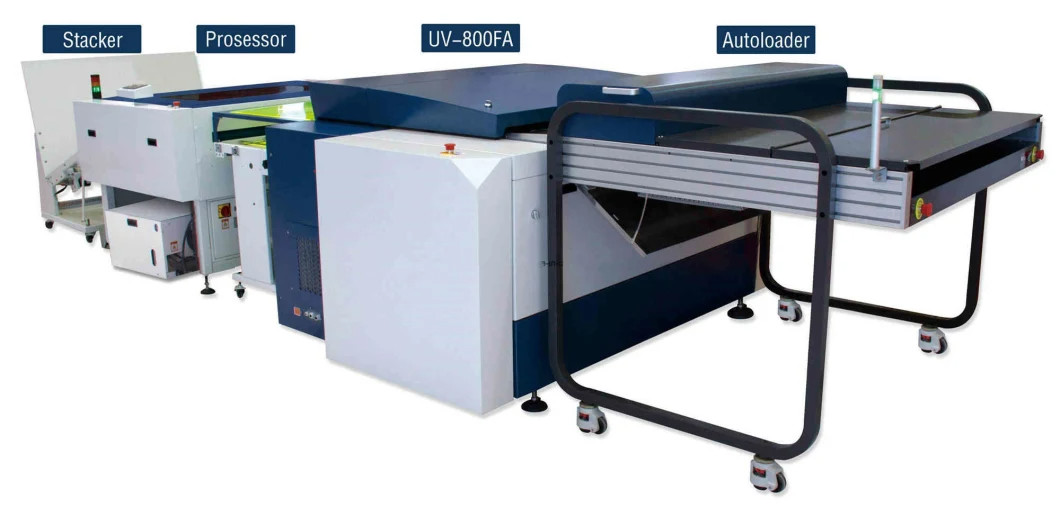

Model: EcooSetter T-800SA

EcooSetter T-800A is for High Quality Imaging and Performance. It's an optimum system for maximum platemaking productivity and economy.
It's available in 8-page formats with your choice of laser channels and automation to deliver the right price and performance combination,

to meet your exact production and business needs.

Specification

ECOO T-800A Series Thermal CTP Specifications
Model	T-800XA	T-800FA	T-800SA	T-800EA
Imaging System	256	64	48	32
Output Speed	40	28	22	16
	1030mm x 800mm / 2400dpi
Plate Size	Max.1163 x 940mm Min. 400mm x 300mm
Plate Thickness	0.15mm to 0.30mm
Resolution	2400dpi
Weight	1200KG
Repeatability	±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size (WxLxH)mm	2127*1610*1058mm (W*D*H)
Power Supply	Single phase:220AC +6%, -10%, Power Consumption: 4KW
Environment	Recommended temprature: 21-25ºC Max: 15-30ºC Humidity: 40%-70%

Producing And Packaging

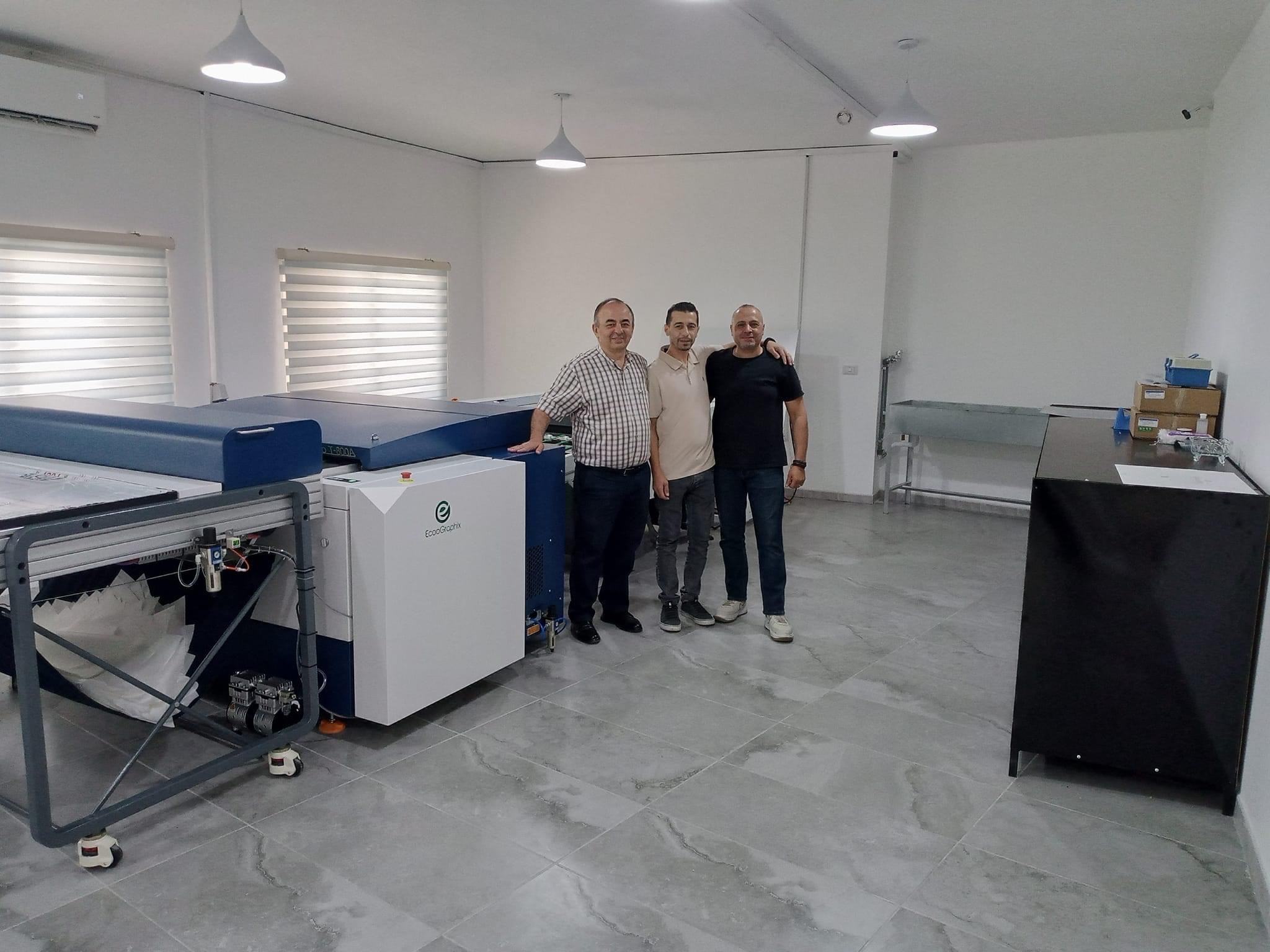

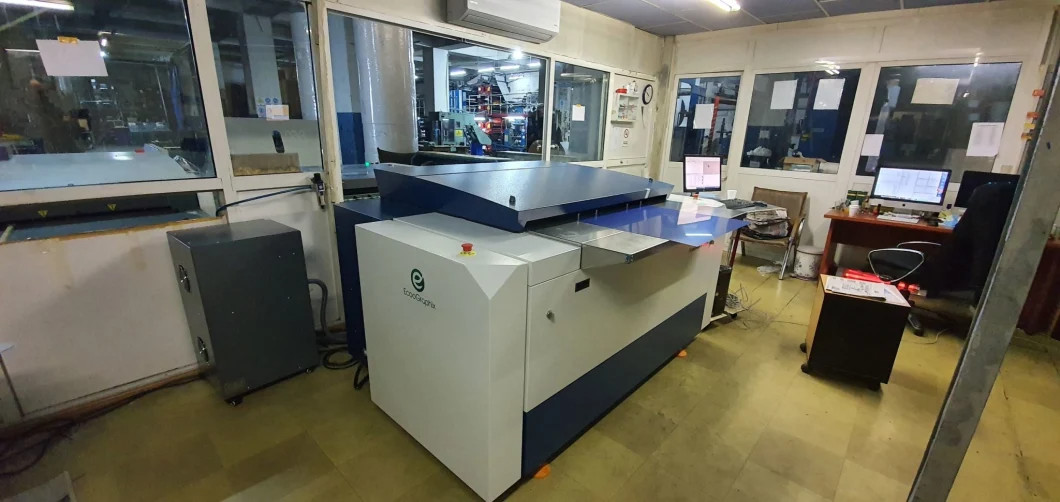

Installation Worldwide

FAQ

1. What is your warranty for the CTPs?

Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
If machine user uses our plate at the same time, we offer lifelong warranty.

2. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.

3. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
