Large Size Plate Making Machine Thermal CTP Machine For Offset Printing

Large Size Plate Making Machine Thermal CTP Machine For Offset Printing

Model: EcooSetter VLF T-1600S

Specification

Model:
EcooSetter VLF T-1600S

Laser wavelength:
400-410m

Plate:
Thermal plate

Exposing Method:
External Drum

Imaging System:
64-channel

Throughput:
16 plates per hour, 1470mmx1180mm 2400dpi

Plate Size:
Max. 1470mmx1180mm Min. 650x550mm

Plate Thickness:
0.15mm to 0.3mm

Resolutions:
2,400dpi

Repeatability:
±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)

Interface:
USB2.0

Weight:
2600KG

Size:
2320×1080×960mm(W×D×H)

Power Supply:
single-phase: 220AC+6%,-10%;

Power Consumption:
5KW

Environment:
recommended: 21-25ºC,max.18-26ºC,humidity:40-70%

Features

1) Superior dot quality reproduction proven by worldwide market:
1%-99% dot reproduction. Up to 250lpi screening, 2400 dpi or 1200dpi optional.

2) Fully qualified:
For any thermal non-process plate and process plates.

3) Robustness and simplicity:
Robust machine and easy to use. User-friendly design to avoid human error.

4) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA and Germany.

5) Long lifetime and warranty of parts:
Laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)

6) Long warranty of the machine:
3 years warranty (free replacement of all parts)
Low Cost of Parts: after 3 year warranty, very low cost of parts. For example, laser diode at US$250 per piece.

7)Guaranteed Service:
Installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 months. Proactively revisit by engineers to be conducted. 7x24 hours service response.

8)Proven Worldwide market leader:
Over 6000 units installed worldwide over past 10 years.
USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.
Turkey: 35 units installed in Turkey by Esen Graphics.

Installations in other countries UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria and etc.

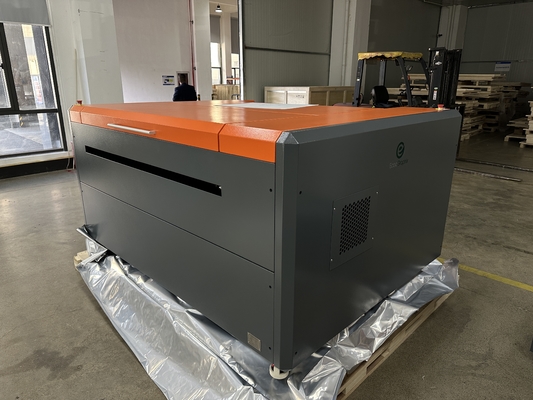

Packaging And Shipping

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

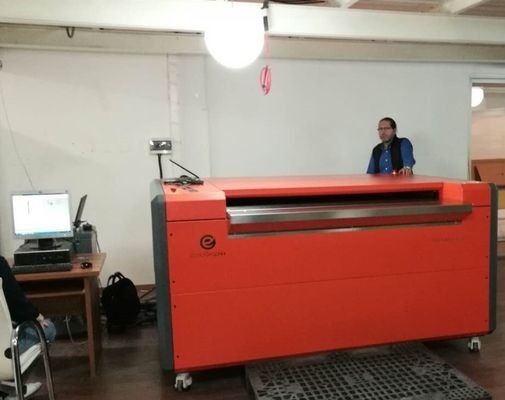

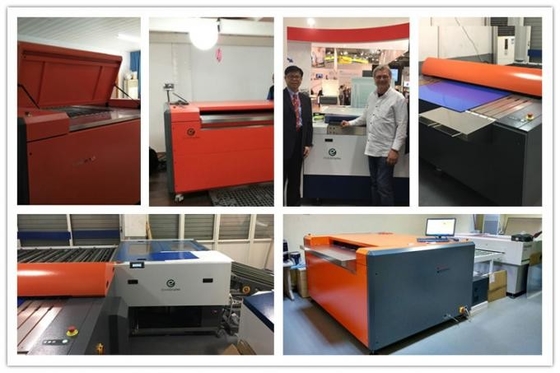

Installation Worldwide

Proven Worldwide market leader: (Some highlights installations)

Over 6000 units installed worldwide over past 10 years.

USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.

Turkey: 35 units installed in Turkey by Esen Graphics

Installations in other coutries like UK, Italy, Huagray, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria and etc.
