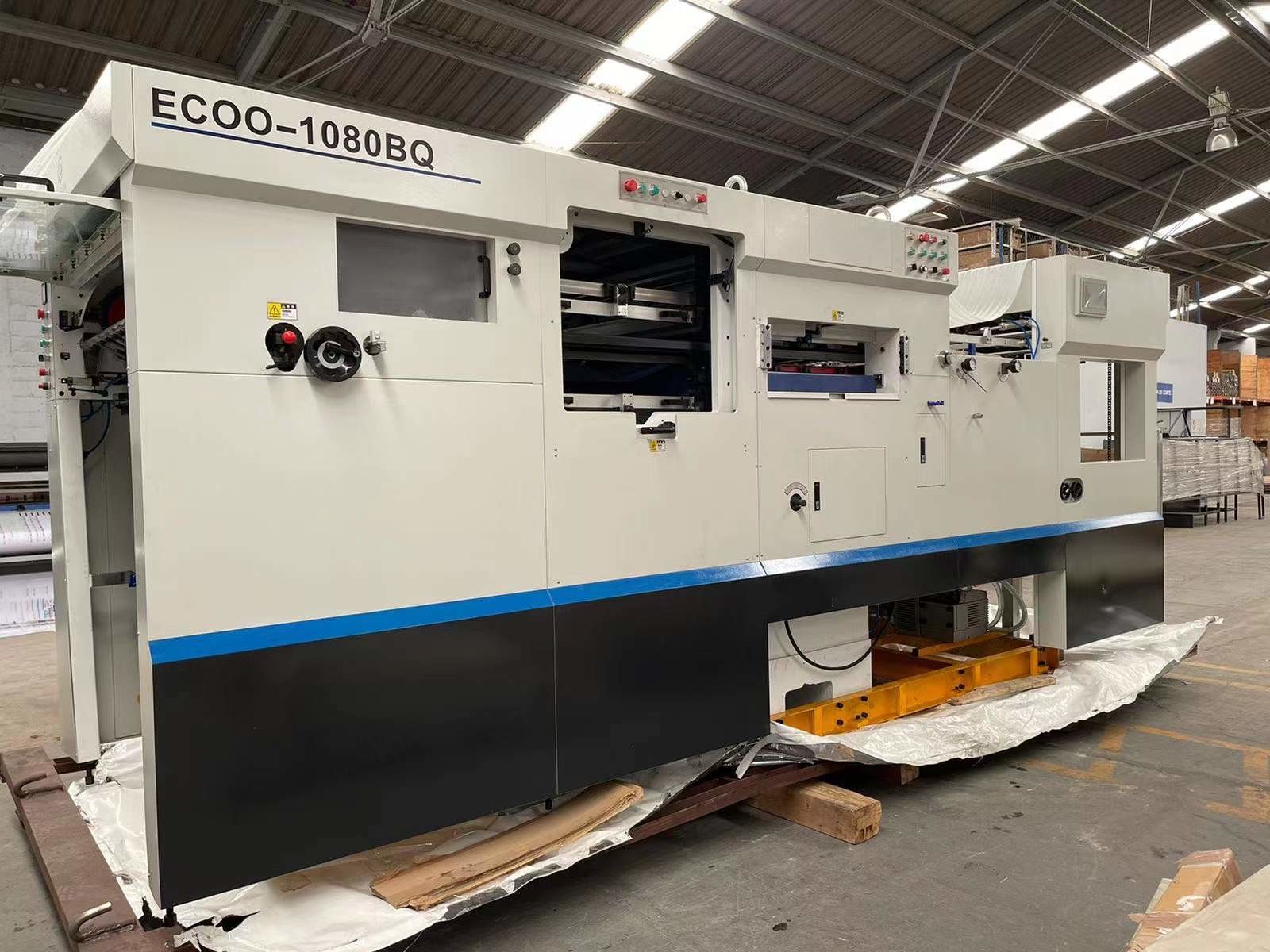

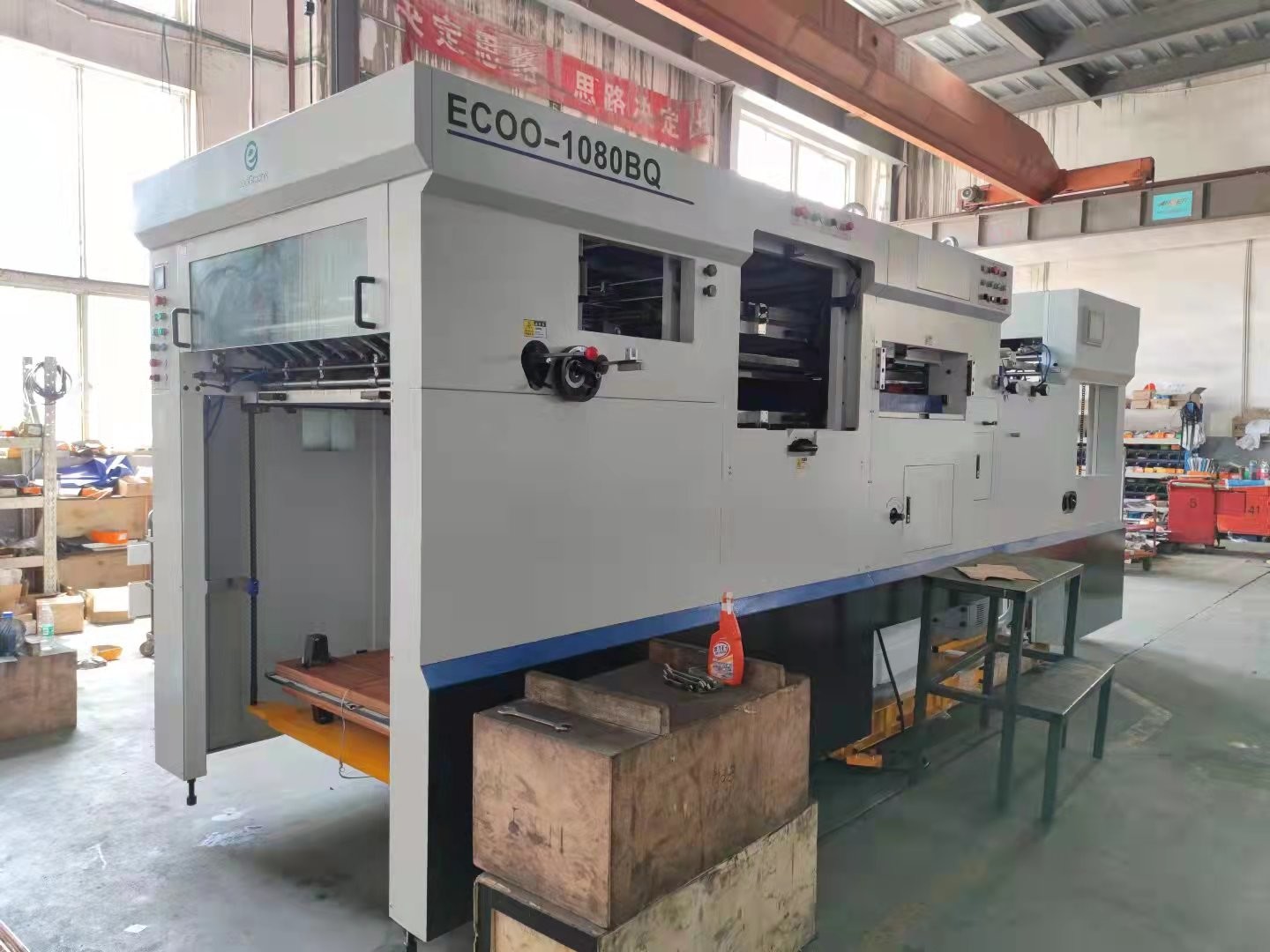

Fully Automatic Flatbed Die Cutting Machine With Waste Stripping

Features

1. Perfect design, fine assembly, good stability, strong safety and low noise.
2. Worm gear, worm, crankshaft transmission technology, high die-cutting pressure and long service life.
3. High-precision clearance mechanism, high die-cutting accuracy and stable operation.
4. Adopting European technology feeder head, the suction paper is adjustable, stable and accurate, and the paper has strong applicability.
5. Touch screen man-machine interface, real-time dynamic monitoring and display of running status, convenient and quick machine adjustment and troubleshooting.

Specification

Model
ECOO-1080BQ

Max. Sheet size(mm)
1080 x 780

Min. Sheet size(mm)
400 x 330

Max. Die cutting size(mm)
1075 x 770

Inside chase size(mm)
1100 x 790

Cutting plate size(mm)
1080 x 780

Min.gripper margin(mm)
7

Die cutting accuracy(mm)
≤± 0.1

Max.pressure(T)
300

Max.machine speed(s/h)
7000

Feeding pile height(mm)
1550

Delivery pile height(mm)
1400

Stock range
White board paper: 0.1~2 mm; Corrugated paper: <4 mm

Power(kw)
17.8

Dimension(mm)
5880(+1650) x 2100(+1600) x 2350

Weight(T)
17.6

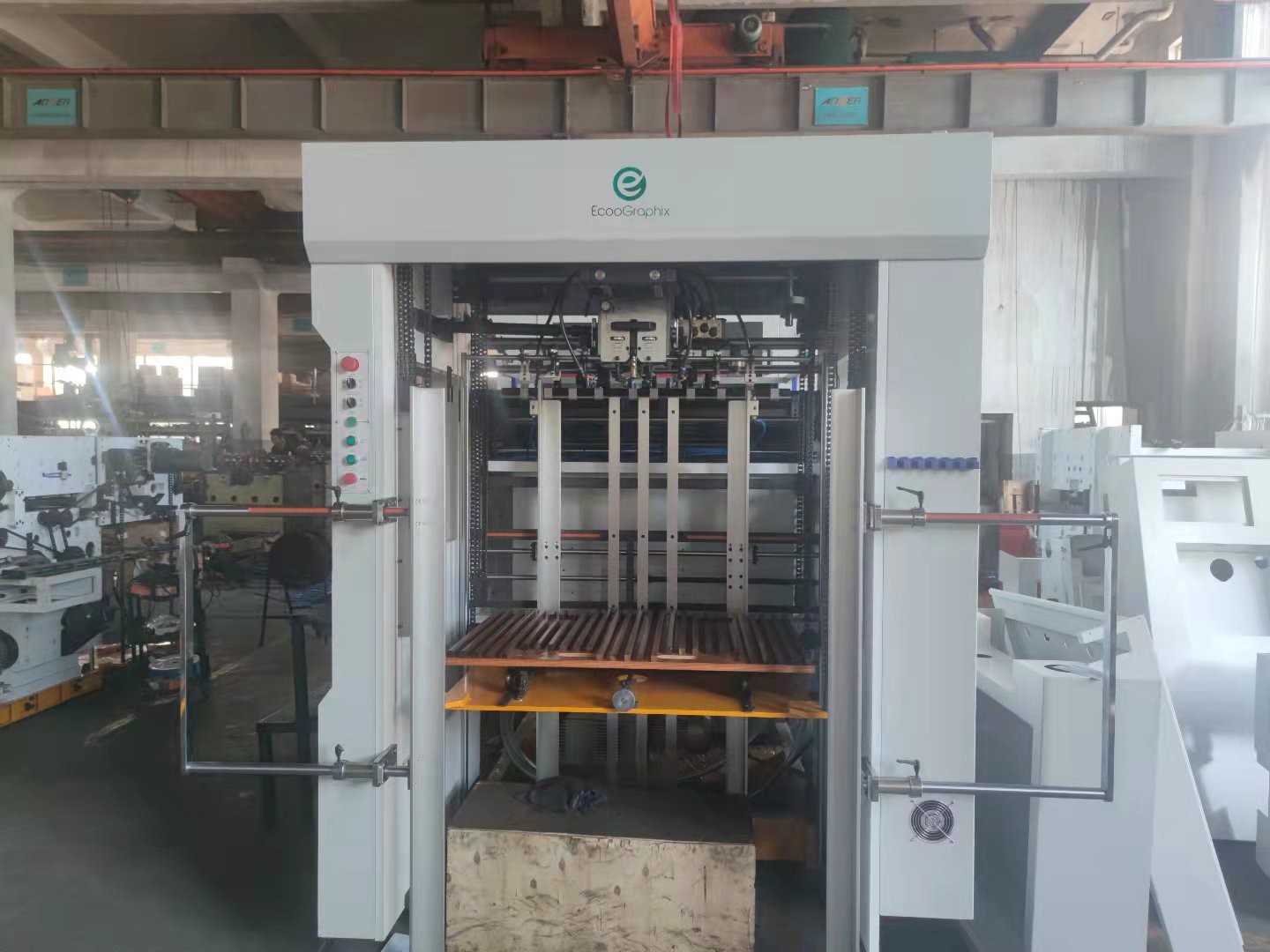

European technology precision feeder head for cardboard and corrugated paper. Four suction and four feed, the suction angle can be adjusted according to the deformation of the paper.

Two-sided push-pull dual-purpose side regulation. Electromechanical double sheet detector. The main paper feeding table is switched without stopping the machine. Super wear-resistant polyurethane paper conveying roller.

The pressure-bearing parts are high-strength ductile iron QT500, which has high strength and never deforms. Alloy steel crankshaft treated with special process.

Super wear-resistant worm gear and worm.

Taiwan high-pressure oil pump circulating oil lubrication system. High-precision intermittent mechanism. Japan SMC rotary joint. Precision pressure regulating mechanism.

Automatic paper arranging device, two-way air blowing device for delivery to ensure that thick and thin paper can be delivered neatly. he delivery section is equipped with a control panel for more user-friendly operation. Paper delivery photoelectric to ensure neat delivery. Automatic lifting control system for delivery table. Equipped with non-stop delivery device.
