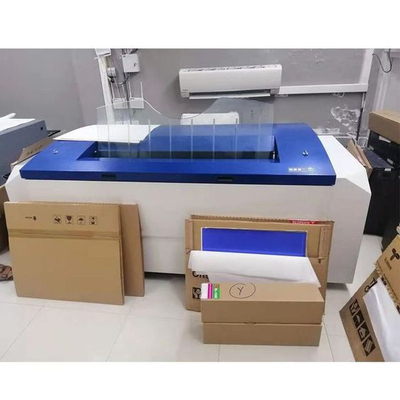

A1 Or B1 Paper Size Thermal CTP Machine Computer to Plate Imaging Machine (Offline)
Product Description
EcooGraphix Thermal CTP (Plate Making Machine) is the first prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor.
By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.
EcooGraphix T800 series thermal CTP are for A1 or B1 paper size newspaper or commercial printing with the output speed 16PPH-28PPH.
The CTP is operated by manual, very easy to use.
Specification
Model
T-800E
Exposing Method
External Drum
Imaging System
32-channel, Discrete 830nm laser diode
Throughput
16 plates/hour, 1030mm x 800mm, 2400dpi
Plate Sizes
Max. 1163mm x 940mm, Min. 300mm x 400mm
Media Type
Positive thermal CTP plate
Plate Thickness
0.15mm to 0.30mm
Resolution
2400dpi
Repeatability
±5μm(Continuous exposing for 4 times or above on the same plate with
a temperature of 23ºC and humidity of 60%)
Interface
USB 2.0/ USB 3.0 (USB 2.0 is recommended)
Plate Loading
Manual
Net Weight
900 KG
Machine Size (WxLxH)mm
2320 x 1080 x 960
Power Supply
Single phase: 220AC, +6%, -10%, Power Consumption: 4KW
Operation Environment
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%
| ECOO T-800 Series Thermal CTP Specifications | ||||
| Model | T-800X | T-800F | T-800S | T-800E |
| Imaging System | 256 | 64 | 48 | 32 |
Output Speed |
40 | 28 | 22 | 16 |
| 1030mm x 800mm / 2400dpi | ||||
| Plate Size | Max.1163 x 940mm Min. 400mm x 300mm | |||
| Plate Thickness | 0.15mm to 0.30mm | |||
| Resolution | 2400dpi | |||
| Weight | 900KG | |||
| Repeatability | ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%) | |||
| Machine Size (WxLxH)mm | 2320*1080*960mm (W*D*H) | |||
| Power Supply | Single phase:220AC +6%, -10%, Power Consumption: 4KW | |||
| Environment | Recommended temprature: 21-25ºC Max: 15-30ºC Humidity: 40%-70% | |||
Factory And Production Line
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
