Description

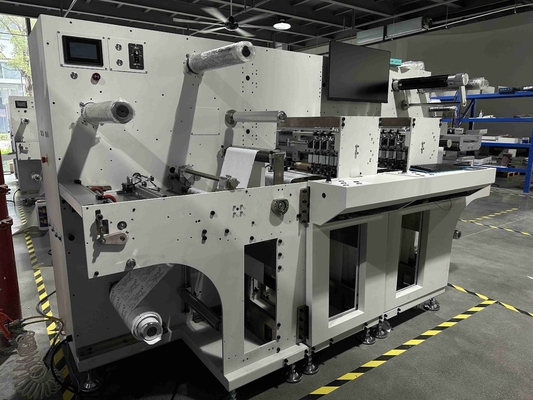

The VD3350 high-speed digital label machine, which incorporates more AI intelligent elements, adopts a unit design and can install up to 3 working units. Unique intelligent digital die-cutting software that automatically recognizes and extracts cutting files, and automatically adjusts the saw blade. Use a four-blade * 3 unit to work on different labels simultaneously. With the latest intelligent software from Worry, automated die-cutting runs through the entire workflow, making equipment operation easier than ever, greatly improving work efficiency while reducing manual intervention.
Technical data
| Parameters and specifications | |
| Maximum output label roll | 450mm |
| Support label paper width | 40-350mm |
| Maximum label width | 330mm |
| Minimum label length | 10mm |
| Maxmum label length | 600mm |
| Die cutting speed | 9 meters/minute |
| Number of die-cutting machine heads | 4 units/unit, maximum 12 units/3 units |
| Cutting quantity | 4 (standard) up to 15 |
| Die cutting positioning | CCD camera |
| Die-cutting technology | Hard alloy rotary cutting tool |
| mould-cutting precision | 0.1mm |
| Striping speed | Same die-cutting speed |
| Striped size | 10-330mm |
| Striping accuracy | 0.1mm |
| Size | 2100*1195*1575mm |
| Weight | 1200kg (single unit) |
| Power supply | 110-240VAC 1000W |
| Warranty service | One year (excluding vulnerable parts) |
| Data interface | Built in PC |
| Optional accessories |
Die-cutting machine head
Splitting tool holder
Laminated waste disposal system
Paper cutter
Host Group
|
Section and function
1 High precision feeding system:
Utilize the ultrasonic web-guide system, it makes sure the feeding perfectly.
2 Cold laminating
It has cold laminating function, your label will be bright and perfect. The back liner removal is optional.
3 Digital die-cutting system
VD3350 Digital label die-cutter utilizes high precision screw transmission system. Max speed can be 30m per minute. Individual control for the 4 heads, combining with the function of auto adjust the heads distance, to make the every single head on or off.

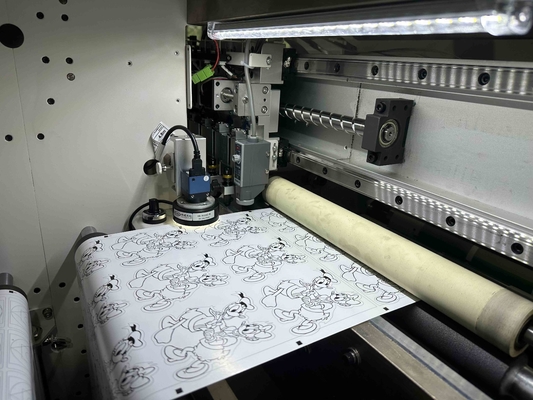

4 CCD identify system
With the CCD camera position and identify system, to recognize the sequence, to reach the function of changing file and cutting next graphics automatically.
5 Precision slitting system
Utilize rotary slitting mode, can install max.15 blades, high speed with 60m per minute, instead of traditional slitting equipment completely.
6 The waste removing system
The precision machinery design can control the roller rotating uniformly, avoid removing waste discontinuously due to unstable pressure, keep finishing labels clean.
7 Sheet Cutter
The optional built-in Pc350 Sheet Cutter can be in line with the main Die-cutting, to perform the synchronous die-cutting and sheet cutting.
Software Features:
• Running status can be seen in real-time
• Choose the quantity of the heads based on graphics
• Choose the heads distance automatically
• Support file database
• Intelligent cutting with trajectory optimization
• Auto-generate the working records
