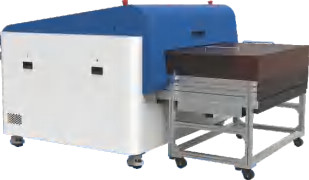

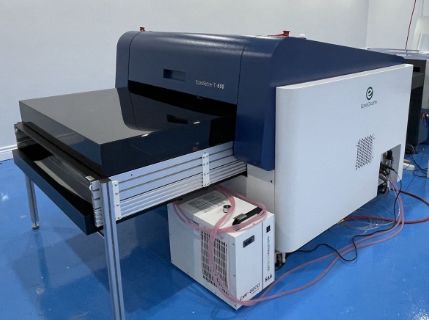

Max. 55pph Fully Automatic A1 Format Thermal CTP Machine With Automatic Autoloader
The Automatic CTP Model, EcooSetter T800A, Offering High Quality/Price Ratio
Brief Introduction
The T800A is an automatic feeding thermal CTP machine in A1 format with a speed of 24 pph. It accommodates plate sizes from 400×330mm (min) to 1163×940mm (max). The imaging system features discrete 830 nm laser fiber for slow speed and 256 laser valve for high speed configurations. When paired with an inline processor and stacker, it provides a complete, fully automatic high-speed solution for imagesetters and printing houses.
Plate Feeding Options:
- No autoloader
- Single cassette autoloader
- Multi-cassette autoloader
Speed Options:
- 18, 25, 30, 35, 45, or 55 pph at 2400 dpi (1030×800mm size)
Parameters
ECOO T-800 Series Automatic CTP Specifications (Online System)
| Model |
T-800FA |
T-800SA |
T-800EA |
| Exposing Method |
External Drum |
| Imaging System |
64-channel |
48-channel |
32-channel |
|
Discrete 830nm laser diode |
| Throughput |
28PPH |
22PPH |
16PPH |
|
1030mm x 800mm, 2400dpi |
| Plate Sizes |
Max.1130mm x 920mm
Min.300mm x 300mm(300mmx250mm is available) |
| Exposing Size |
Max.1130mm x 884mm |
| Media Type |
positive thermal CTP plate |
| Plate Thickness |
0.14mm to 0.30mm |
| Resolution |
2400dpi |
| Repeatability |
±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%) |
| Interface |
USB 2.0 |
| Plate Loading |
semi automatic |
| Net Weight |
1200kg |
| Machine Size (WxLxH)mm |
2127x1405x1058 |
| Power Supply |
single phase:220AC,+ 6%,- 10%, power Consumption:4KW |
| Operation Environment |
recommended:21-25℃, Max.18-26℃, humidity:40-70% |
T-800 Q (F, V, X) Specifications
| Model |
T800QF |
T800QV |
T800QX |
| Exposing Method |
External Drum |
| Imaging System |
825nm, 256 laser valve |
| Throughput |
35plates/hour |
45plates/hour |
55plates/hour |
|
1030mm x 800mm, 2400dpi, Plate sensitivity 120mj/cm² |
| Plate Sizes |
Max.1163mm x 940mm
Min.400mm x 300mm |
| Plate Thickness |
0.15mm, 0.30mm |
| Resolution |
Standard: dual resolutions 2400dpi and 1200dpi or optional 2540dpi and 1270dpi. Variable resolution option: maximum up to 10000dpi at fast scan direction |
| Repeatability |
0.01mm |
| Interface |
Optical Fiber(Fiberway)/GB Ethernet |
| Plate Loading |
Standard: Single cassette Autoloader or multi-cassette Autoloader(four cassette) |
| Auto slip paper collection bin |
Included in autoloader |
| Bridge to processor |
included |
| Punch System |
Optional: internal punching(maximum four sets of plate holes) |
| Net Weight |
CTP: 1200kg, Simplified Autoloader: 200KG, Multi-cassette Autoloader: 570KG |
| Machine Size (WxLxH)mm |
1,537×1,976×1,340mm |
| Power Supply |
CTP(single phase:220V, Max power(Peak Value): 4KW) Simplified Autoloader(single phase:220V; Max power(Peak Value): 900W)) Multi-cassette Autoloader(single phase:220V; Max power(Peak Value): 1100W)) |
| Operation Environment |
recommended:21-25℃, allowable temperature: 15-30℃,relative humidity:40-70% |
Machine Inside View

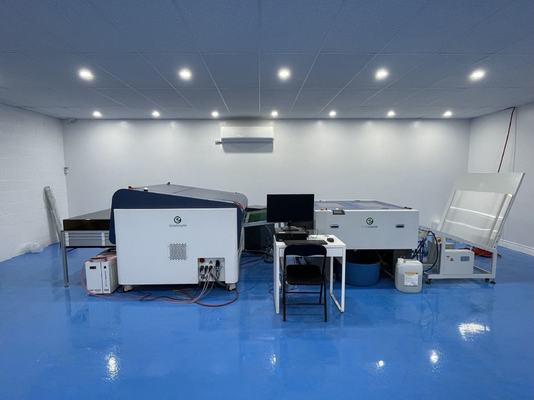

Full Prepress Line with Inline Processor and Stacker
The processor includes a bridge to connect with the CTP machine and convey the CTP plates. This model is P1150.
| Model |
P-1150 |
| Page Size |
The max width 1150 mm, The min width 280mm |
| Plate Thickness |
0.15mm to 0.40mm |
| Processing power |
Speed adjustable (10 to 60 seconds) 400-1000 mm/minutes |
| Temperature |
10 to 45 ºC can be adjusted ( automatic temperature control, cooling system) |
| Developing capacity |
54 L |
| Drying temperature |
20-65 ºC can be adjusted |
| Electricity source |
220 V (208V-240V) single-phase 50-60HZ |
| Work rate |
4.5 KW |
| Weight |
420 KG |
The stacker follows the processor, automatically collecting imaged plates while protecting them from friction and damage. This can be replaced by a customer-made table or basket if preferred.
Delivery & Package
We can arrange any transportation method. The nearest departure ports are Shanghai Port or Ningbo Port. Equipment is packed in standard export wood cartons with sufficient protective layers.
Our Factory View
Certification
Q&A
1. How long is the lead time?
The lead time for each CTP machine is normally 30 days. We can accelerate for emergency cases.
2. How long is the warranty period?
Ecoographix guarantees 3 years of warranty for the laser head and spare parts.
3. Is there any certification for your CTP machine?
Yes, All our CTP machines have been certified by SGS and CE.
4. Do you have accompanying plate products to make an easy purchase for some end users?
Yes, we have qualified CTP/CTcP plates at most favorite prices. In addition, blankets, ink, developers, processors are also in our business range.
5. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping.
6. What are your main products?
Generally, we manage two types of products: prepress equipment and consumables, and postpress equipment and consumables. Our category is as below:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate, and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, and automatic folder gluer.
7. Can you offer some successful installations for reference?
Yes, we have achieved great success in the USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa, etc, with the great assistance of our dealers. If you have any concerns about the quality or service, you can contact them on your own.
8. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
9. What about the Installation and after-sales technician support?
Our engineers can assist with installation and provide necessary training. The buyer is responsible for round-trip airfare, service charges, and local accommodation. We provide 24/7 support for any questions or problems.
10. Where is your factory?
Our CTP machine factory is located in Hangzhou city, about 1.5 hours by train from Shanghai. You're welcome to visit our factory anytime!
