800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing

1 set
MOQ
usd 40000 per set
Price
800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Model: T400A-NS
Type: Thermal CTP Machine
Max. Plate Size: 800*660mm
Min. Plate Size: 300*300mm
Speed: 16/22/28 Pph
Resolution: 2400 Dpi
Power: 1.5 Kw
Applicable Plate: Thermal CTP Plate
Highlight:

800*600mm CTP Plate Machine

,

Manual Feeding CTP Plate Machine

,

Offset Printing CTP Prepress Machine
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO, CE
Model Number: T400A-NS
Payment & Shipping Terms
Packaging Details: wooden case with protective design
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100 sets per year
Product Description

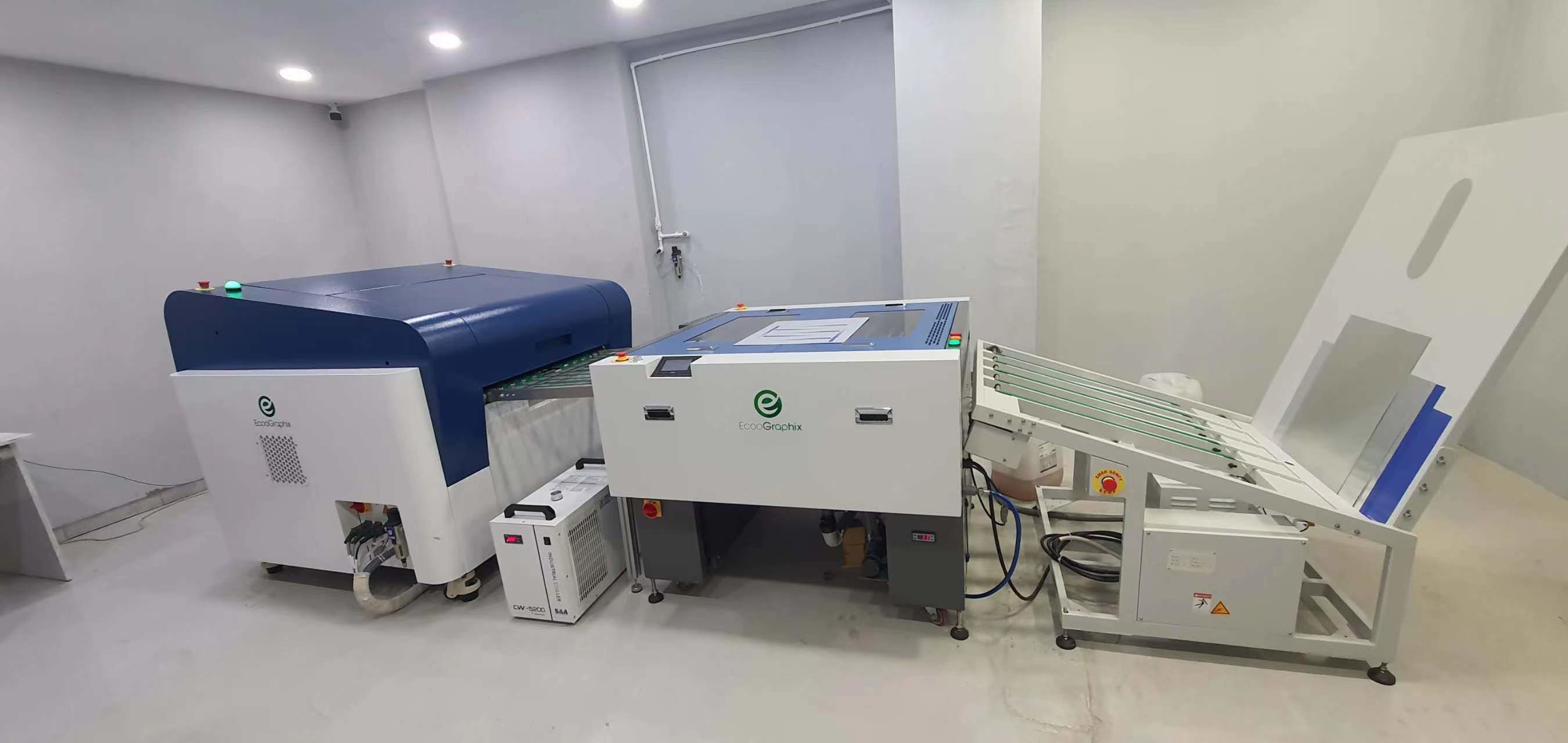

Full prepress solution line for offset printing, including manual feeding thermal CTP machine, inline processor and inline stacker





800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing 0800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing 1

800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing 2



ECOO T-400Q Series Automatic CTP Specifications
Model   T-400QS
Exposing Method External Drum
Imaging System   32-channel
　 Discrete 830nm laser diode
Throughput 50 pph for 745*567mm size,1200 dpi
  745 x 567mm, 2400dpi
Plate Sizes Max.800mm x 660mm
Min.300mm x 300mm
Media Type positive thermal CTP plate
Plate Thickness 0.15mm to 0.30mm
Resolution Standard: 2400 dpi or 1200 dpi
Repeatability 0.01mm
Interface Optical Fiber(Fiber-way)
Plate Loading Manual loading
Inline punching System Optional: internal punching (maximum four sets of plate holes),
Net Weight 1300kg
Machine Size
(WxLxH)mm		 1450x1950x1290 (additional 600mm length for conveyor to wash unit)
Power Supply

CTP(single phase:220V, Max power(Peak Value): 4KW)

Simplified Autoloader(single phase:220V; Max power(Peak Value): 900W))
Environment recommended:21-25℃, Max.18-26℃, humidity:40-70%

800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing 3



Model P-900
Page Size The max width 900mm, The min width 280mm
Plate Thickness 0.15mm to 0.40mm
Processing power Speed adjustable (10 to 60 seconds) 400-1000 mm/minutes
Temperature 10 to 45 ℃ can be adjusted ( automatic temperature control, cooling system)
Developing capacity 46 L
Drying temperature 20-65 ℃ can be adjusted
Electricity source 220 V (208V-240V) single-phase 50-60HZ
Work rate 4 KW
Weight 355 KG

800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing 4


Workflow: compose, copyrighted

800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing 5



Machine side view and factory view

800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing 6

800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing 7

800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing 8
