Product Description
Thermal-CTP VLF T-1600SLarge Format 16pph Prepress Equipment Plate Making Machine Thermal CTP
Product Description
1. Application

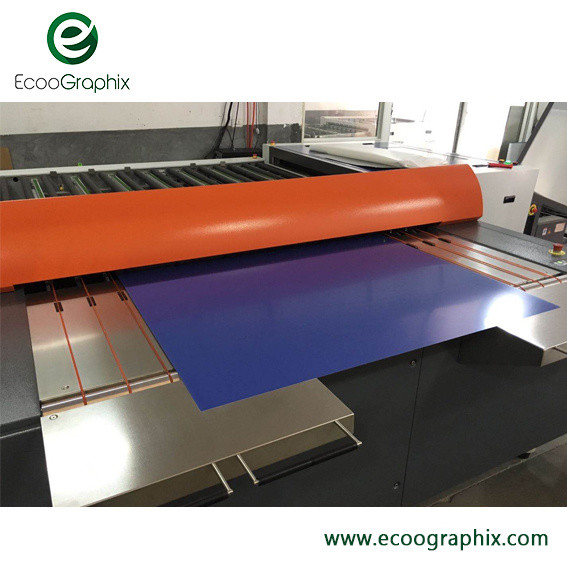

EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.
By the EcooGraphix CTP, the customer can get Excellent output image quality, highly reliable stability, less space occupied with more flexibility.
EcooGraphix VLF(Very Large Format) Thermal CTP Machine T1600S can be used Posters or wall-charts , large books, catalogue, yellow pages, packaging processing and plate-making center etc. , with the output speed 16 plates per hour.
2.Characteristic
Maximum Plate Size: 1,470×1180mm
Features: Less manpower, high stability and perfect output quality.
3. Specification

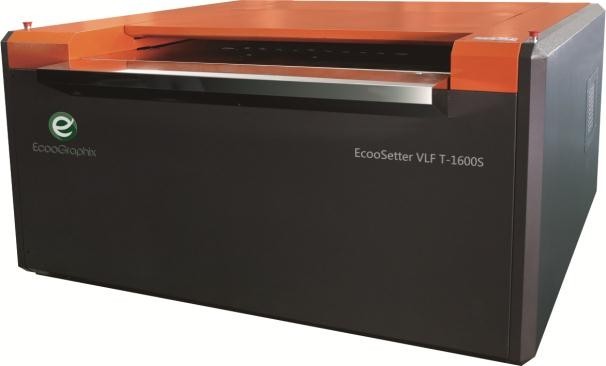

Model: EcooSetter VLF T-1600S
Laser wavelength: 830nm
Plate: Thermal plate
Exposing Method: External Drum
Imaging System: 64-channel
Throughput: 16 plates per hour, 1470mmx1180mm 2400dpi
Plate Size: Max. 1470mmx1180mm Min.300x400mm
Plate Thickness: 0.15mm to 0.3mm or 0.25-0,40mm
Resolutions: 2,400dpi
Repeatability: ±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Weight: 2400KG
Size: 2355×1910×1217mm (W×D×H)
Power Supply: single-phase: 220AC+6%,-10%; Power Consumption: 5.5KW
Environment: recommended: 21-25ºC, max.15-30ºC, humidity: 40-70%
| EcooGraphix VLF (Very Large Format) |
| Model |
T-1600S |
T-1600SV |
T-1600SX |
| Output Speed |
16pph |
28pph |
32pph |
| 1470mm x 1180mm / 2400dpi |
| Plate Size |
Max.1470mm x 1180mm Min. 400mm x 300mm |
| Plate Thickness |
0.15mm to 0.30mm or 0.25mm to 0.4mm (Option) |
| Exposing Size |
Max. 1470mm x 1164mm Min. 300 x 384mm |
| Media Type |
Positive Thermal CTP Plate |
| Resolution |
2400dpi, 1200dpi (Option) |
| Weight |
1400KG |
| Repeatability |
±5μm
(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%) |
| Machine Size (WxLxH)mm |
2355*1910*1217mm(W*D*H) |
| Power Supply |
Single-phase: 220V; Max power: 5.5KW |
| Environment |
recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: <70%RH |
Installation Worldwide
Proven Worldwide market leader: (Some highlights installations)
Over 6000 units installed worldwide over past 10 years.
USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.
Turkey: 35 units installed in Turkey by Esen Graphics
Installations in other coutries like UK, Italy, Huagray, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria and etc.

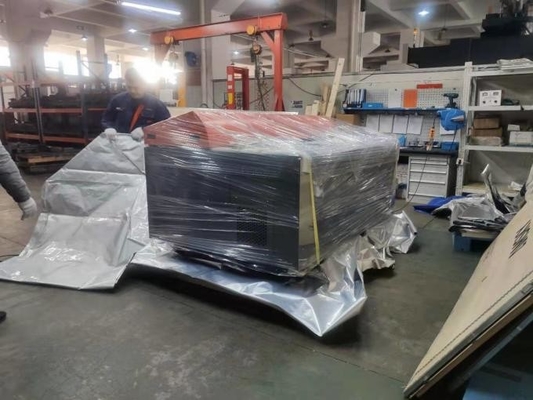

Producing and Packing
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
FAQ
1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTP, one year for the processor.
3. What is the Lead Time?
Usually 30-45 days, and we will try our best to meet your demands.
4. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
