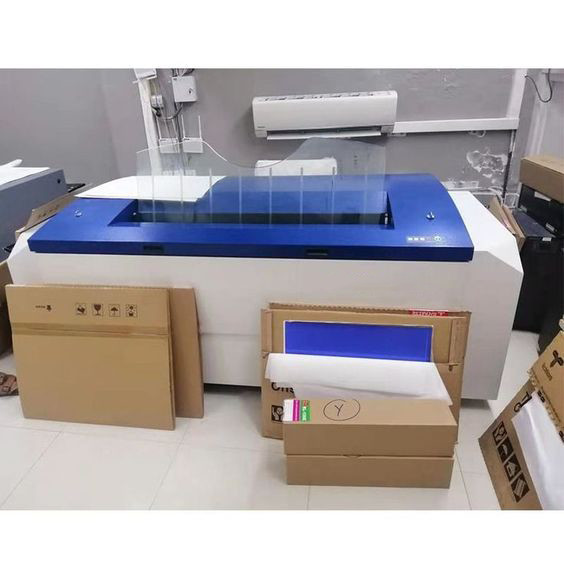

Prepress Equipment Plate Making Machine Thermal CTP For Offset Printing
Application:
EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing.
It can output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.
Introduction:
EcooGraphix T800 series thermal CTP are for 8 ups newspaper or commercial printing with the output speed 16PPH to 28PPH.
The CTP is operated by manual, very easy to use.
It is our best seller among all types of CTP models, for its high cost-effectiveness and durability and stability.
Specification
Model
T-800F, T-800S, T-800E
Exposing Method
External Drum
Imaging System
64-channel, 48-channel, 32-channel
Discrete 830nm laser diode
Throughput
28plates/hour, 22plates/hour, 16plates/hour,
1030mm x 800mm, 2400dpi
Plate Sizes
Max. 1163mm x 940mm, Min. 400mm x 300mm
Exposing Size
Max. 1130mm x 884mm, Min. 260mm x 284mm
Media Type
Positive 830nm thermal CTP plate
Plate Thickness
0.15mm to 0.30mm
Resolution
2400dpi
Repeatablity
±5μm (Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface
USB 2.0
Plate Loading
Semi automatic
Net Weight
900kg
Machine Size (WxLxH)mm
2320x1080x960
Power Supply
Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW
Environment
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%
| ECOO T-800 Series Thermal CTP Specifications | ||||
| Model | T-800X | T-800F | T-800S | T-800E |
| Imaging System | 256 | 64 | 48 | 32 |
| Output Speed | 40PPH | 28PPH | 22PPH | 16PPH |
| 1030mm x 800mm / 2400dpi | ||||
| Plate Size | Max.1163 x 940mm Min. 400mm x 300mm | |||
| Plate Thickness | 0.15mm to 0.30mm | |||
| Resolution | 2400dpi | |||
| Weight | 900KG | |||
| Repeatability | ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%) | |||
| Machine Size (WxLxH)mm | 2320*1080*960mm (W*D*H) | |||
| Power Supply | Single phase:220AC +6%, -10%, Power Consumption: 4KW | |||
| Environment | Recommended temprature: 21-25ºC Max: 15-30ºC Humidity: 40%-70% | |||
Producing and Packing
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Installation Worldwide
FAQ
1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates, inks, Blankets, Postpress Packing equipments and so on. There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and chemistry free CTP plate. You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor. If machine user uses our plate at the same time, we offer lifelong warranty.
3. What is the Lead Time?
Usually 20-30 days, and we will try our best to meet your demands.
4. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
