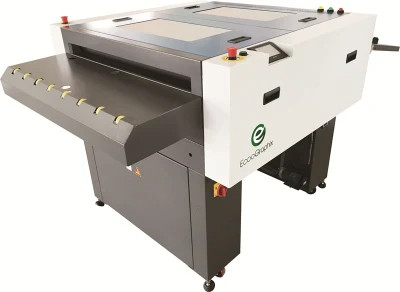

CTP Plate Processor Series 900/1150/1250/1500
Application:
Regardless of the PS plate or the CTP plate, a processing machine is required for processing the plate after the exposure is completed. EcooGraphix CTP Processors can be used with Offline/ Online Thermal CTP or CTCP or UV-CTP platesetters, such as Kodak, Screen, Agfa, Creo, Amsky or Cron CTP machines.
Specification
| Ecoo Processors Series | ||||
| Model | P-900 | P-1150 | P-1250 | P-1500 |
| Page Size | 280-860 mm | 280-1100 mm | 280-1200 mm | 290-1500 mm |
| Plate Thickness | 0.15-0.4mm | |||
| Processing Speed | Speed adjustable(10 - 60 seconds) 400 - 1000mm/minute | |||
| Temperature | 10 to 45 ºC can be adjusted (automatic temperature control, cooling system) | |||
| Developing Capacity | 46L | 58L | 70L | 78L |
| Drying Temperature | 20-65 ºC can be adjusted | |||
| Electricity Requirement | 220 V (208 V - 240 V) single-phase 50-60hz | |||
| Working Power | 4.5KW | 5KW | 5.5KW | 6.5KW |
| Weight | 355kg | 420kg | 512kg | 600kg |
| Machine Size | 1420 x 1460 x 1280mm | |||

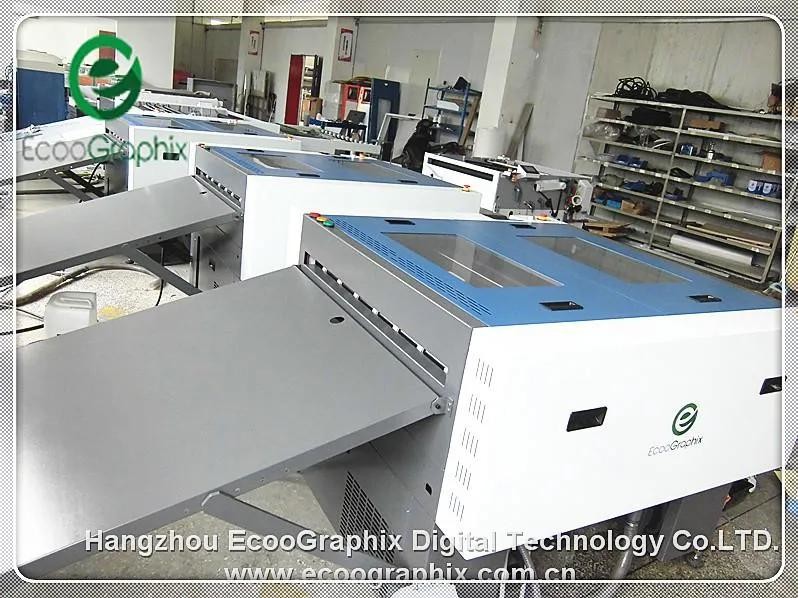

Producing And Packing

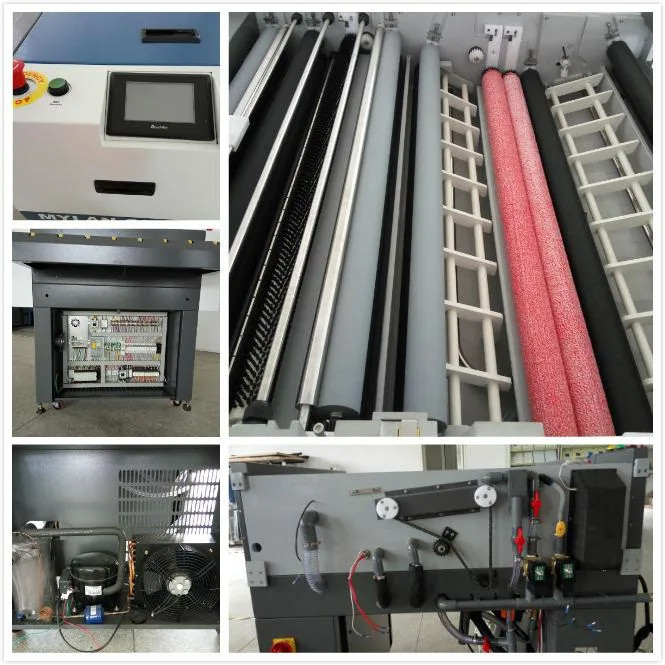

More Details
FAQ
Q1: What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory?
Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!
Q3: Is there any certification for your CTP Processor?
Yes, all our machines have been certified by SGS and CE.
Q4: Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brainnew and RIP Compose.
Q5: What about the installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
