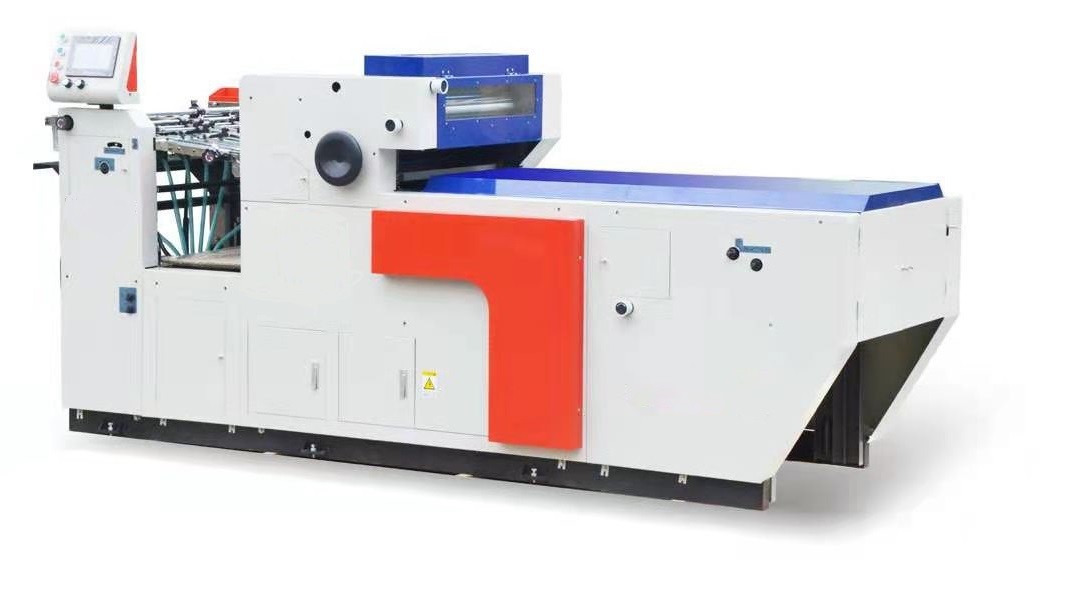

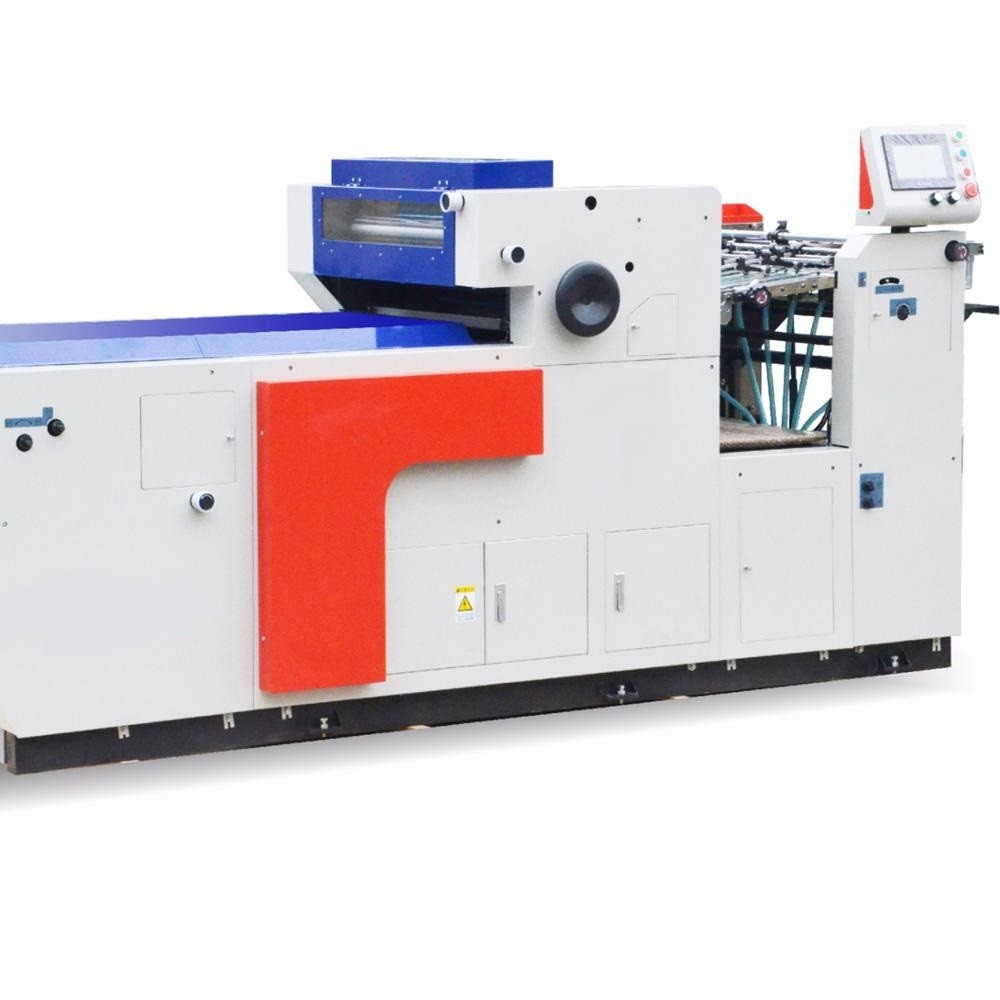

Automatic Spot and Overall UV Coating Machine - ECOO CF-620A
Product Description
Brief Introduction:

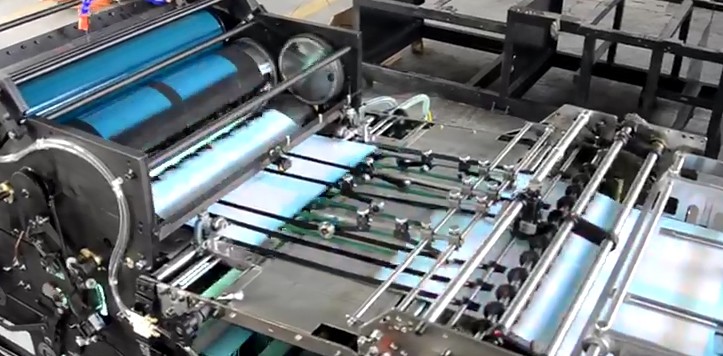

The Ecoo CF 620A UV coating machine can do spot UV and overall UV coating on printed matter and packaging products such as the books, posters, adhesive stickers etc. This machine is consist of Auto feed system, vanishing system, curing system and auto delivery system. It not only improves the quality of printed materials, but also increases the value of the products, makes more profits to printing companies. Because of the high speed and efficiency, it is getting very good reputations from clients all over the world.
Specification
| Model | Ecoo CF-620A |
| Max.sheet size | 620×450mm |
| Min.sheet size | 260×190mm |
| Sheet weight | 60-350g/m2 |
| Production speed | 5500 sheet/hour |
| Power | 15KW |
| UV lamp | 2pcsx5.6kw |
| Weight | 1200KG |
| Dimension | 2950×1200×1450mm |
Model
Ecoo CF-620A
Max.sheet size
620×450mm
Min.sheet size
260×190mm
Sheet weight
60-350g/m2
Production speed
5500 sheet/hour
Power
15KW
UV lamp
2pcsx5.6kw
Weight
1200KG
Dimension
2950×1200×1450mm
