Specification
Model
RT-600
Max. sheet size
600*520mm
Min. sheet size
100*80mm
Max. window size
400*400mm
Min. window size
45*30mm
Paper thickness
Cardboard 200-2000g/m2 ; Corrugated board: from micro-flute-6mm thickness
Film thickness
0.03-0.2um
Stickup accuracy
(left/right)±0.5mm, (top/bottom)±1mm
Machine size(L*W*H)
4500*1500*1700mm
Net weight
3300kg
Main power
3kw
Sizing roller power
0.09kw
Delivery stacker power
0.37kw
| Model | RT-600 |
| Max. sheet size (mm) | 600*520 |
| Min. sheet size (mm) | 100*80mm |
| Max. window size (mm) | 400*400 |
| Min. window size (mm) | 45*30mm |
| Paper thickness | Cardboard 200-2000g/m2 ; corrugated board: from micro-flute-6mm thickness |
| Film thickness | 0.03-0.2um |
| Stickup accuracy | (left/right)±0.5mm, (top/bottom)±1mm |
| Machine size(L*W*H) | 4500*1500*1700 |
| Net weight | 3300kg |
| Main power | 3kw |
| Sizing roller power | 0.09kw |
| Delivery stacker power | 0.37kw |
Machine Spare Parts
Sizing Part (gluing)
The Gluing Section consists of the chrome-plated glue roller, glue separation plate, side guide and glue mould roller.
The Gluing Section can be easily pulled out, it's easy to set and clean.
The glue separation plate is adjustable to control the glue area and amount.
In case of the machine shutdown, the cylinder will lift the glue roller and then the machine will be driven by the other separate motor, to avoid the leaking of the glue.
Option of pre-make ready table is available, Operator can set up the mould outside of the machine. It's convenient and time saving.

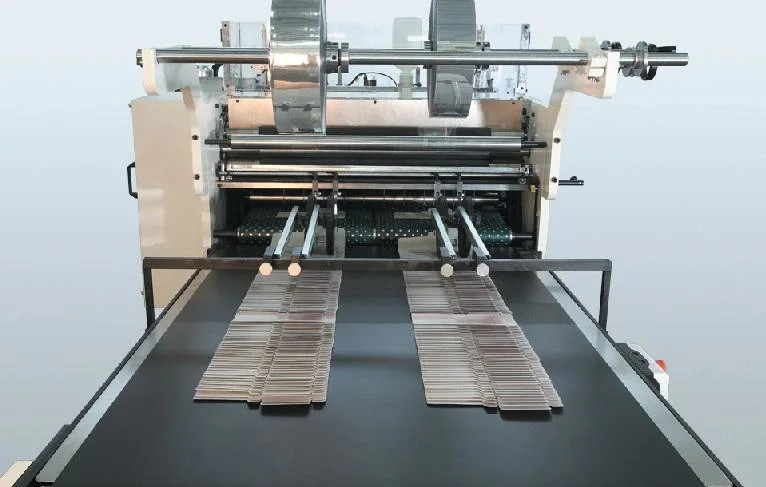

Boxes are delivered from the gluing section to the window patching section by suction.
Suction is run individually and registered by sensor. When there is blank sheet, the suction table will go down to avoid sticking of glue on the belt.
Operator can adjust the volume of suction air according to the size of the box.

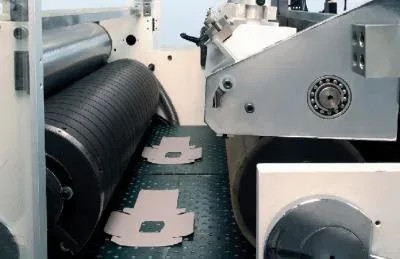

The suction cylinder is made of special material. It is smooth so that the speed of patching is high and there will be no scratch on the plastic film.
When the knife cylinder is rolling, it intercrosses with another fixed knife bar and hence cutting the plastic film like "scissors". The cutting edge is flat and smooth.
The knife cylinder is with adjustable blowing or suction system to ensure the plastic film is patched on the window of the box accurately.
Producing And Packaging
1. Where is your company?
Our company is located in Hangzhou city , which is 1 hour by train from Shanghai.
2. What about the Installation and after-sales technician support?
Our engineer will go to help the installation and will provide the necessary training on site. (The buyer should take the round airplane tickets and service charge and the local accommodation cost). Any problems or questions,we will be at your disposal 7x24 hours.
