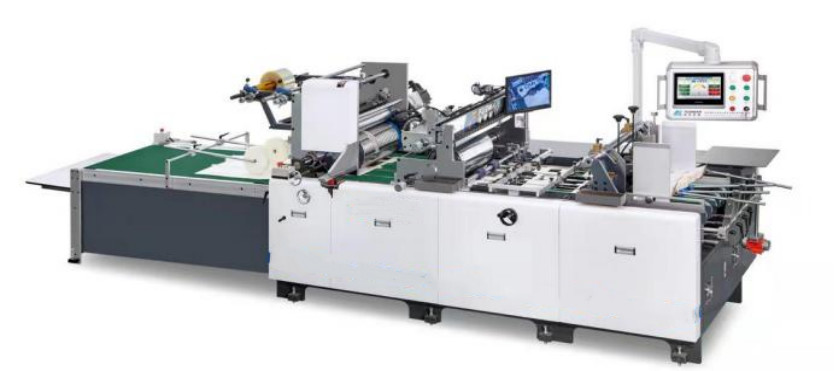

Full Servo Intelligent Window Patching Machine - FMW-800HS
Standard equipments:

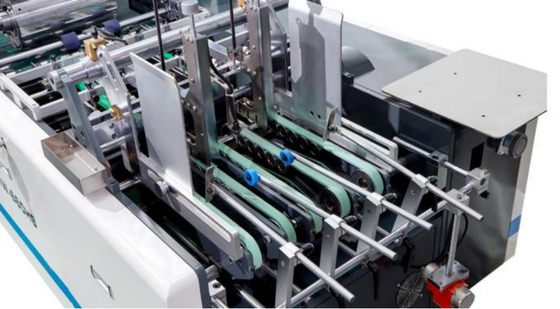

1. Auto Paper Feeding Section.
It adopts independent servo motor and photoelectric cooperation, and intermittent paper feeding mode.
2. Gluing Section.
It adopts photoelectric induction automatic transfer glue, which can adjust the left and right positions of glue with out the machine.
High hardness stainless steel roller gluing are adopted, which can be pulled out in parallel during cleaning
Equipped with photoelectric detection, it will automatically pop up when there is a lack of paper to ensure that the belt is clean.

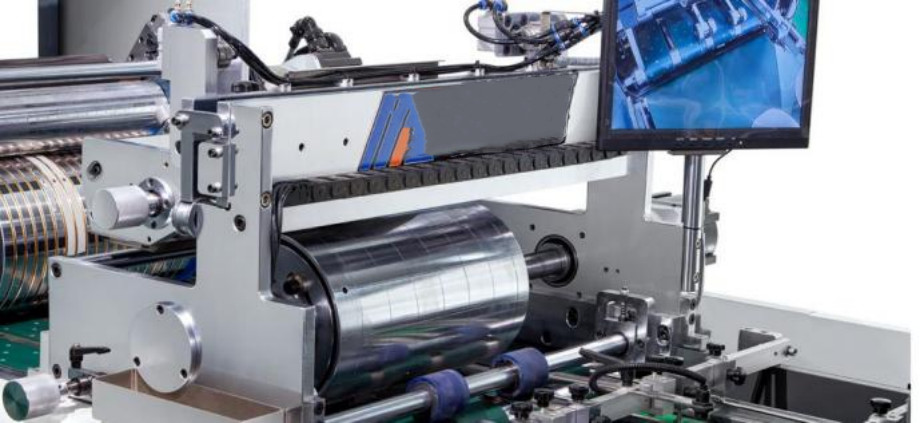

3. Laminating Section.
The high hardness drum slitter is equipped with air suction and blowing functions.
The cutter is independently servo driven, which can switch between low-speed and high-speed operation modes, and digitally adjust the length and size of the film.
The suction film roller adopts independent phase gear, which can adjust the front and rear fitting position of film and carton without stopping the machine.
Equipped with tissue box film cutting function.
4. Paper Receiving Section.
The paper receiving section adopts frequency conversion speed regulation and stacking paper receiving.
Model: FMW-800HS
Paper size: 800mm x 650mm &150mm x 150mm
Film dimension: 400mm x 350mm & 30mm x 50mm
Paper thickness: 200-2000 gsm
Max. Coating speed: 3000-24000 sheet/hour
(output window patcher, depending on blank length,)
Blank length below 330mm, 24000pcs/hour
Blank length over 330mm, 12000pcs/hour
Positioning accuracy: ±0.5 mm(Depending on the film material)
Power required: 17.5 Kw 380 V AC3Φ 50 HZ
Dimension(L x W x H): 5500mm x1500mm x1750mm
Weight machine: 2500 kgs
| Paper size | 800mm x 650mm &150mm x 150mm |
| Film dimension | 400mm x 350mm & 30mm x 50mm |
| Film thickness | 0.03mm - 0.25 mm |
| Paper thickness | 200-2000 gsm |
| Max. Coating speed | 3000-24000 sheet/hour (output window patcher, depending on blank length,) Blank length below 330mm, 24000pcs/hour Blank length over 330mm, 12000pcs/hour |
| Positioning accuracy | ±0.5 mm(Depending on the film material) |
| Power required | 17.5 Kw 380 V AC3Φ 50 HZ |
| Dimension(L x W x H) | 5500mm x1500mm x1750mm |
| Weight machine | 2500 kgs |
Machine Brands Of Parts And Appliances
Main motor :Taiwan TECO
Synchronous belt: optibelt
Frequency converter:INOVANCE
PLC: INOVANCE
Servo motor:INOVANCE
Paper belt:JAPAN NITTA
Bearing:JAPAN NTN NSK NTN
Photoelectricity: OMRON
Encoder: OMRON
Chain: Taiwan TYC,DBC
Interface: INOVANCE Taiwan PanelMaster
Screw Linear guide: Taiwan HIWIN STAF
Cylinder Solenoid valve: Taiwan AirTAC
low voltage electrical apparatus: Schneider, Taiwan MEAN WELL
80%parts plated with hard chromium,The chrome plated rod is made of hard chrome steel rod.
Thickness of machine wall panel 20mm.
The wallboard is milled by CNC machining center.
Producing And Packaging
FAQ
Q: What about the Installation and after-sales technician support?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
