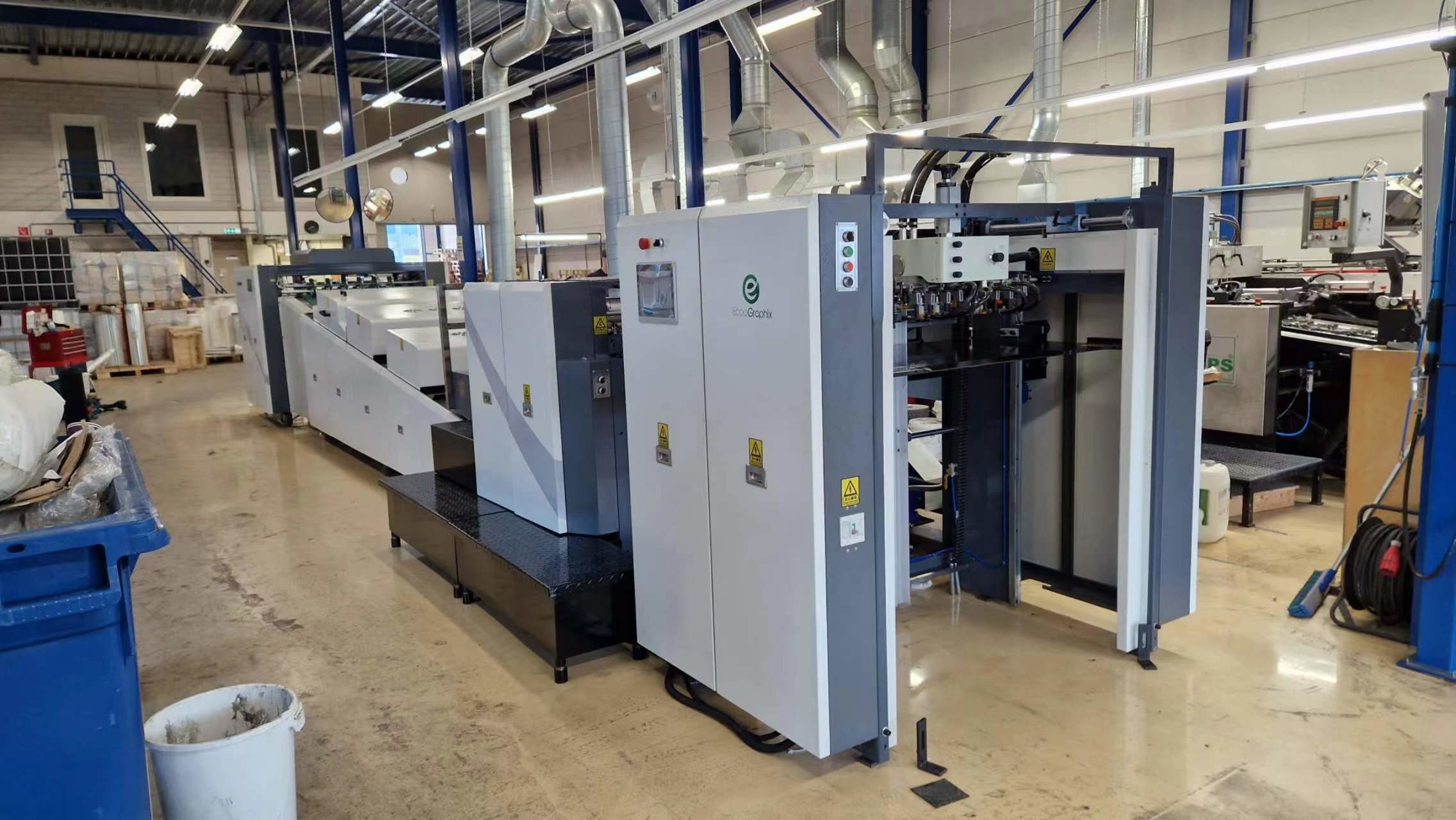

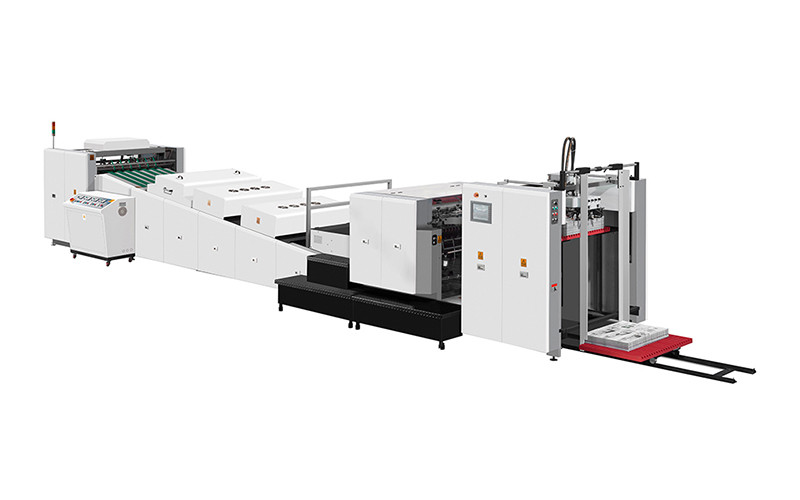

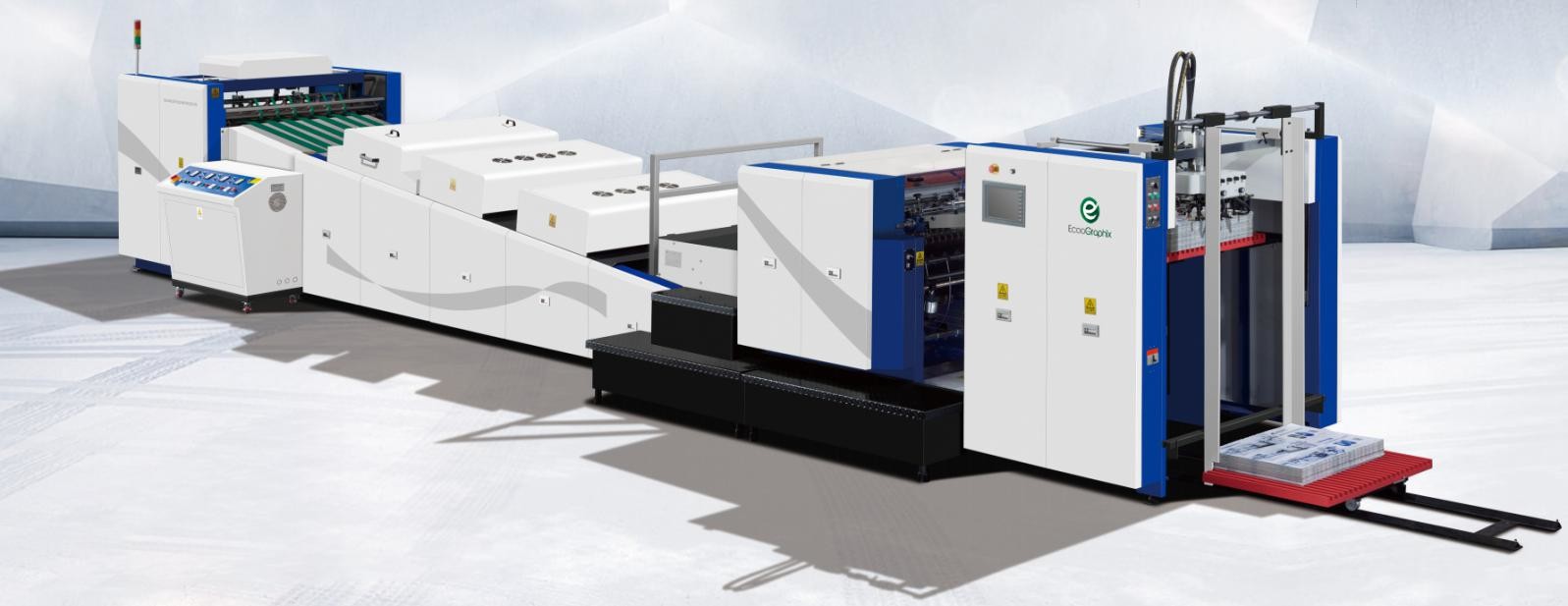

Spot and Overall UV Varnish Coating Machine
The Ecoo SD1050 UV coating machine can do spot UV and overall UV coating on printed matter and packaging products such as the books, posters, adhesive stickers etc. This machine is consist of Auto feed system, vanishing system, curing system and auto delivery system. It not only improves the quality of printed materials, but also increases the value of the products, makes more profits to printing companies. Because of the high speed and efficiency, it is getting very good reputations from clients all over the world.
The machines can be used for water based blister varnish coating, skin varnish coating(for tooth brush or toys packaging),gloss coating, or substitute for plastic laminating, or UV varnishing, with speed up to 9000s/h.
Product Description
* The machine is suitable for using water-based varnish, UV varnish.
* Cold-water non-curling system: The paper will be non-curling after separated.
* Low cost: Ceramic anilox roller coating, minimize gluing amount to 5g/sqm.
* The heating energy cycle drying system makes the whole machine power consumption about 15kw/h.
* High efficiency:The machine working speed reaches to 70m/min, 9000sheets/h.
Mode: Ecoo SD-1050
Max.sheet size:
730x1050mm
Min.sheet size:
310X406mm
Max.coating size:
720x1040mm
Sheet thickness:
80-500gsm
Coating registration accuracy:
±0.2mm
Production speed:
9000sheets/hour
Weight:
8T
Dimension:
10460x2725x1930mm
Power:
44KW
| Model | Ecoo SD-1050 |
| Max.sheet size | 730x1050mm |
| Min.sheet size | 310X406mm |
| Max.coating size | 720x1040mm |
| Sheet thickness | 80-500gsm |
| Coating registration accuracy | ±0.2mm |
| Production speed | 9000sheets/hour |
| Weight | 8T |
| Dimension | 10460x2725x1930mm |
| Power | 44KW |
| Remark: Production speed depending on sheet weight, size and quality | |
Standard Configuration: Selectable Configuration:
Auto Feeder
Multifunctional Coating Unit
UV Curing System
Auto Delivery Unit
Auto Control
| No. | Description | Specification | Qty | Remark |
| 1 | Rubber Roller | Φ165.3×1118 | 1PC | The ceramic roller is not equipped. |
| 2 | Doctor Blade | 0.15*50*1150 | 1PC | |
| 3 | Floor Pad Plate | 12PCS | ||
| 4 | Chain Link | 5/8" | 1PCS | |
| 5 | Chain Link | 1/2" | 1PCS | |
| 6 | Chain Link | 3/4" | 1PCS | |
| 7 | Tool Box | 1PCS | ||
| 8 | Inner Hexagon Spanner | 1.5,2,2.5,3,4,5,6,8,10 | 1SET | |
| 9 | Spanner | 12" | 1PCS | |
| 10 | Screw Driver | 1PCS | ||
| 11 | Screw Driver | 1PCS | ||
| 12 | Fixing Spanner | 5.5-7,8-10-9-11,12-14,13- 16,14-17,17-19,22-24 | 1SET | |
| 13 | Wooden Piece | 4PCS | ||
| 14 | Grease Port (Straight) | M6x1 | 5PCS | |
| 15 | Grease Pipe Jointer (Straight) | M6x1xΦ6 | 5PCS | |
| 16 | Grease Pipe Jointer ( curve) | M6x1xΦ6 | 5PCS | |
| 17 | Screw | M10x80 | 10PCS | |
| 18 | Operation Manual | 1SET | ||
| 19 | User Manual to Inverter | 1SET | ||
| 20 | Pump Instruction Manual | As per supplier | 1SET |
1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.
2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.
3. What is your warranty?
Normally 1 year.
4. What is the Lead Time?
Usually 10-25 days, and we will try our best to meet your demands.
5. Can you also supply the software?
Yes
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
