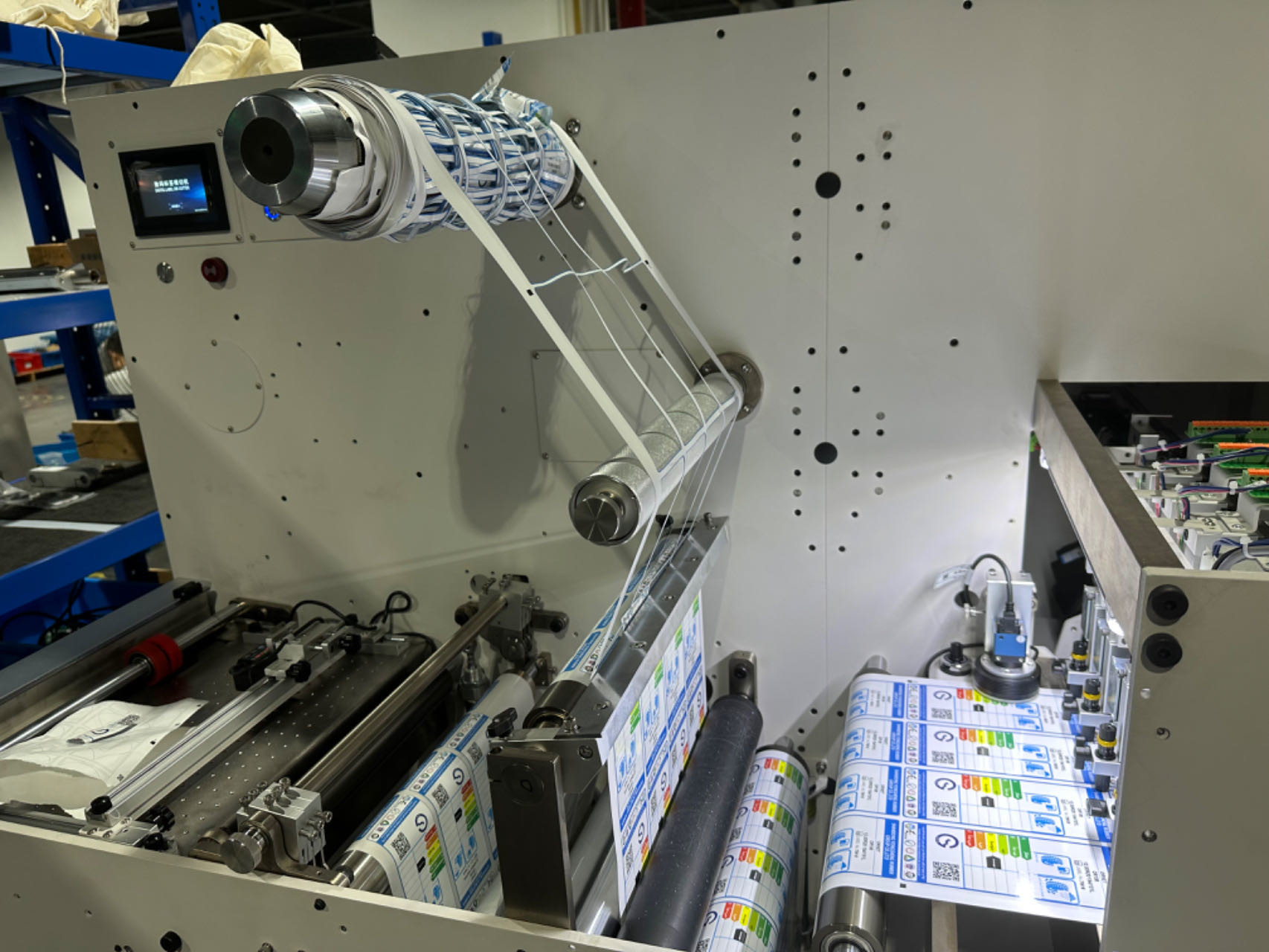

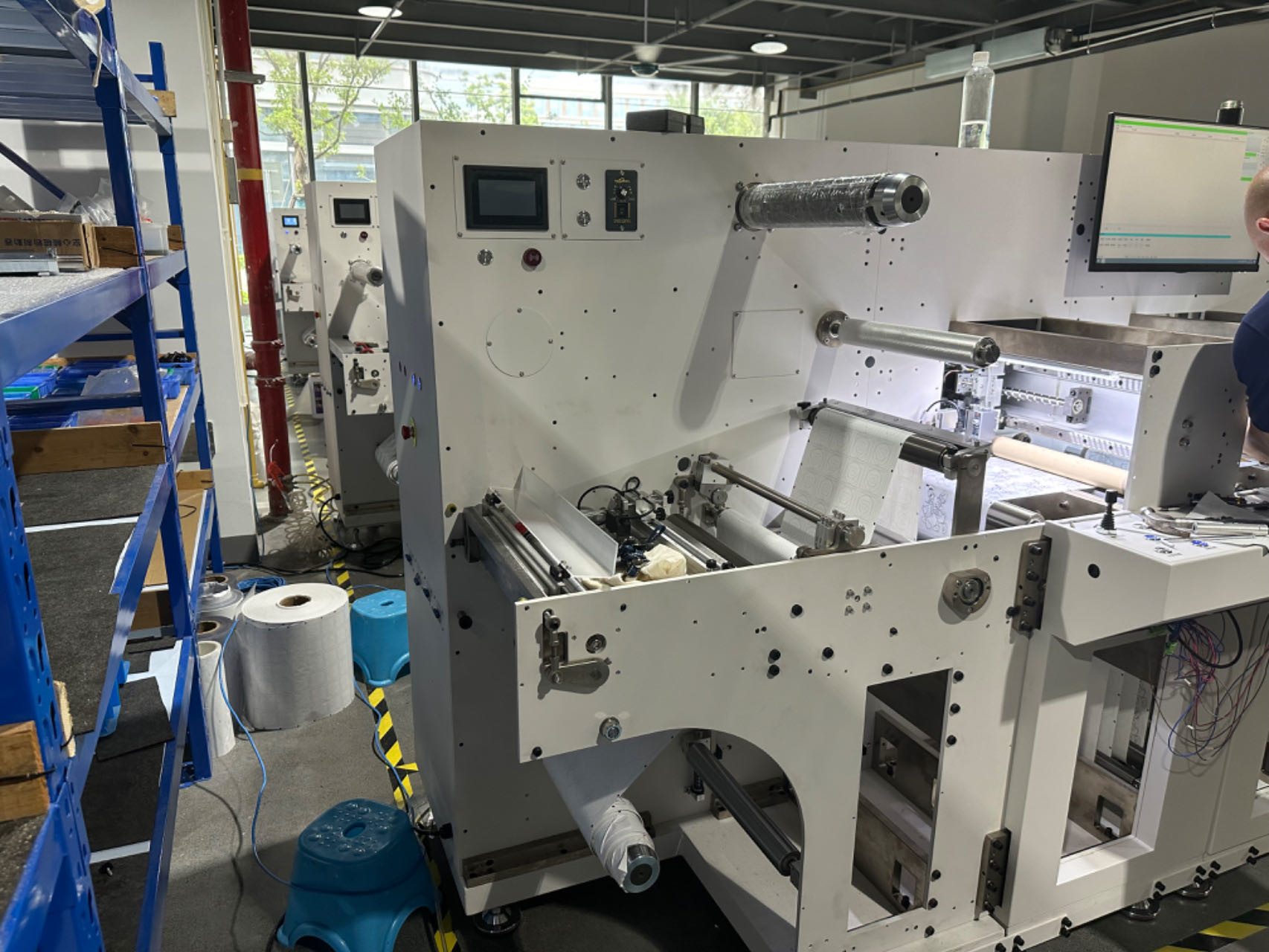

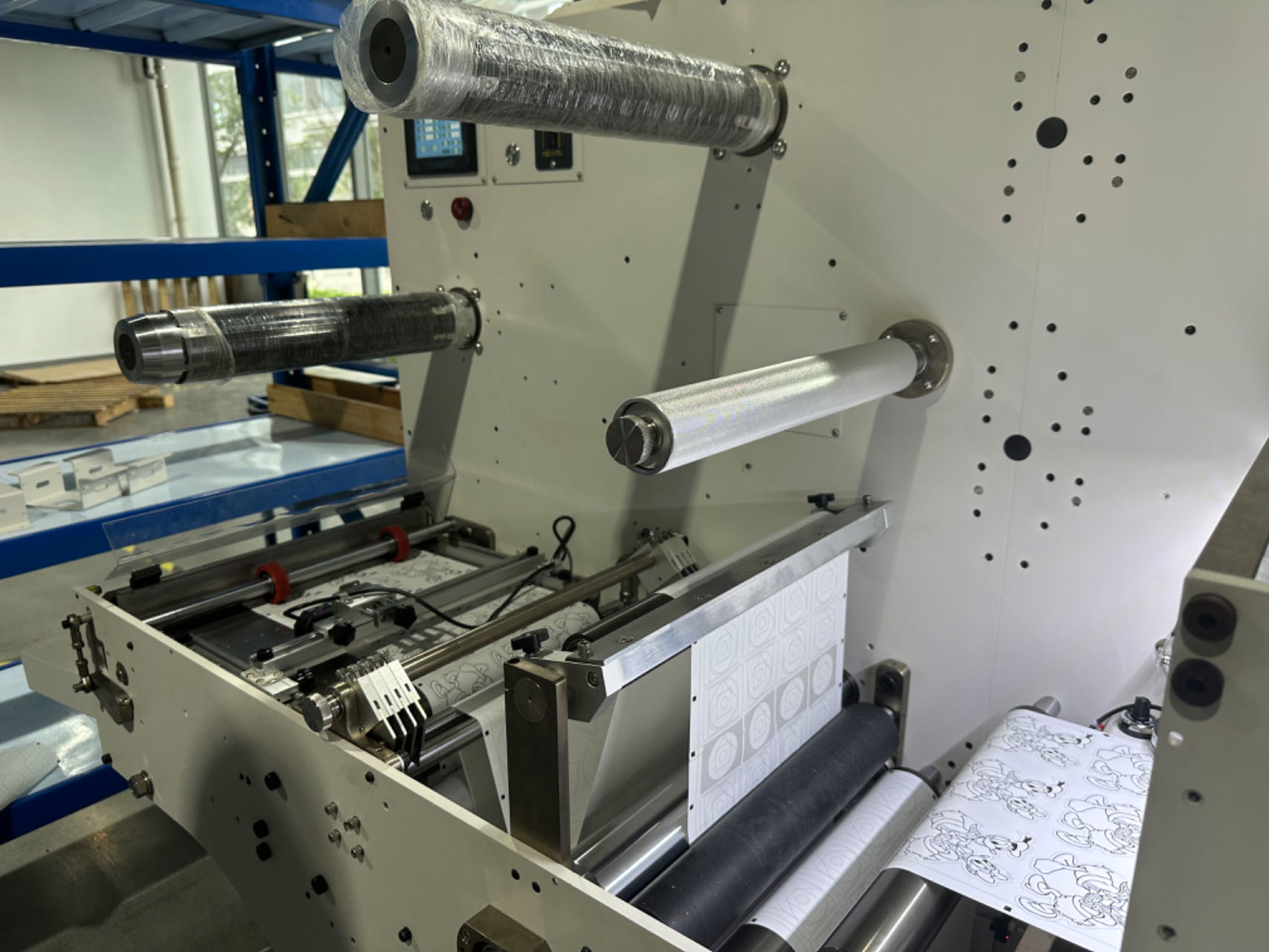

Digital Label Die-Cutter Sliting And Rewinding Machine
Mode:
VD3350
Max. media roller:
diameter 450mm
Cutting media width:
40-350mm
Max.label width:
330mm
Min.label length: 10mm
Max.label length: 600mm
Cutting speed:
Max.9m per minute (depend on label shape and size)
Cutting blades:
(standard) 4 pcs
Slitting blades:
(standard 4 pcs ) max.15pcs
Slitting speed:
Max. 100m per minute
| Model | Ecoo-VD3350 |
| Max. media roller | diameter 450mm |
| Cutting media width | 40-350mm |
| Max.label width | 330mm |
| Min.label length | 10mm |
| Max.label length | 600mm |
| Cutting speed | max.9m per minute (depend on label shape and size) |
| Cutting blades | (standard) 4 pcs |
| Slitting blades | (standard 4 pcs ) max.15pcs |
| Cutting tracking | CCD camera |
| Die-cutting technology | with tungsten steel rotary blades |
| Cutting precision | 0.1mm (duplicate) |
| Slitting speed | Max. 100m per minute |
| Slitting width | 10-330mm |
| Slitting precision | 0.1mm |
| Machine size (W*D*H) | 2100*1195*1575CM |
| Machine weight | 1200kg |
| Power | 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS |
| Warranty | 1year (besides high consumable parts) |
| Options | Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter |
1. Above data are get from tesing in lab, there is difference when you use.
2. Product desing base on original parts or recommend parts.
3. We reserve right improve machine and change specification without note in advance.
More Details
FAQ
1. What is the lead time?
The production time for this model is around 60 days.
2. How about the consumables for this cutting machine?
The main consumables are the blades, which should be replaced each week.
3. How many blades does this model have?
It depends on the customer's inquiry for speed. The standard configuration is one group of 4 pcs of blades. The max speed 30 m/min will require 3 groups of blades.
4. Is it flatbed or roll cutting?
Actually, it is not flatbed cutting nor roll cutting. It is digital cutting. The blades look like needles and cut in any curves. It is totally computerized.
