Name: One Station Six Heads VD3350 Digital Auto Feeding Label Die Cutting Machine
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: Ecoo-VD3350
Price: 50,000.00 USD
Availability: InStock

One Station Six Heads VD3350 Digital Auto Feeding Label Die Cutting Machine

1 SET

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Label Die Cutting Machine

Cutting Speed: 9/min

Max. Workable Width: 330mm

Cutting Blades: Up To 6 Pcs

Slitting Speed: Max. 100m Per Minute

Voltage: 220-240V

Option 1: Cutting Head/Slitting Unit

Option 2: Film Back Liner Removal/Sheet Paper Cutter

Highlight:

PVC Digital Inkjet Label Printer

UV Ink Digital Inkjet Label Printer

PET Digital Inkjet Printer

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: Ecoo-VD3350

Payment & Shipping Terms

Packaging Details: Standard Exporting Package

Payment Terms: L/C, T/T

Supply Ability: 500 Sets Per Year

Gallery

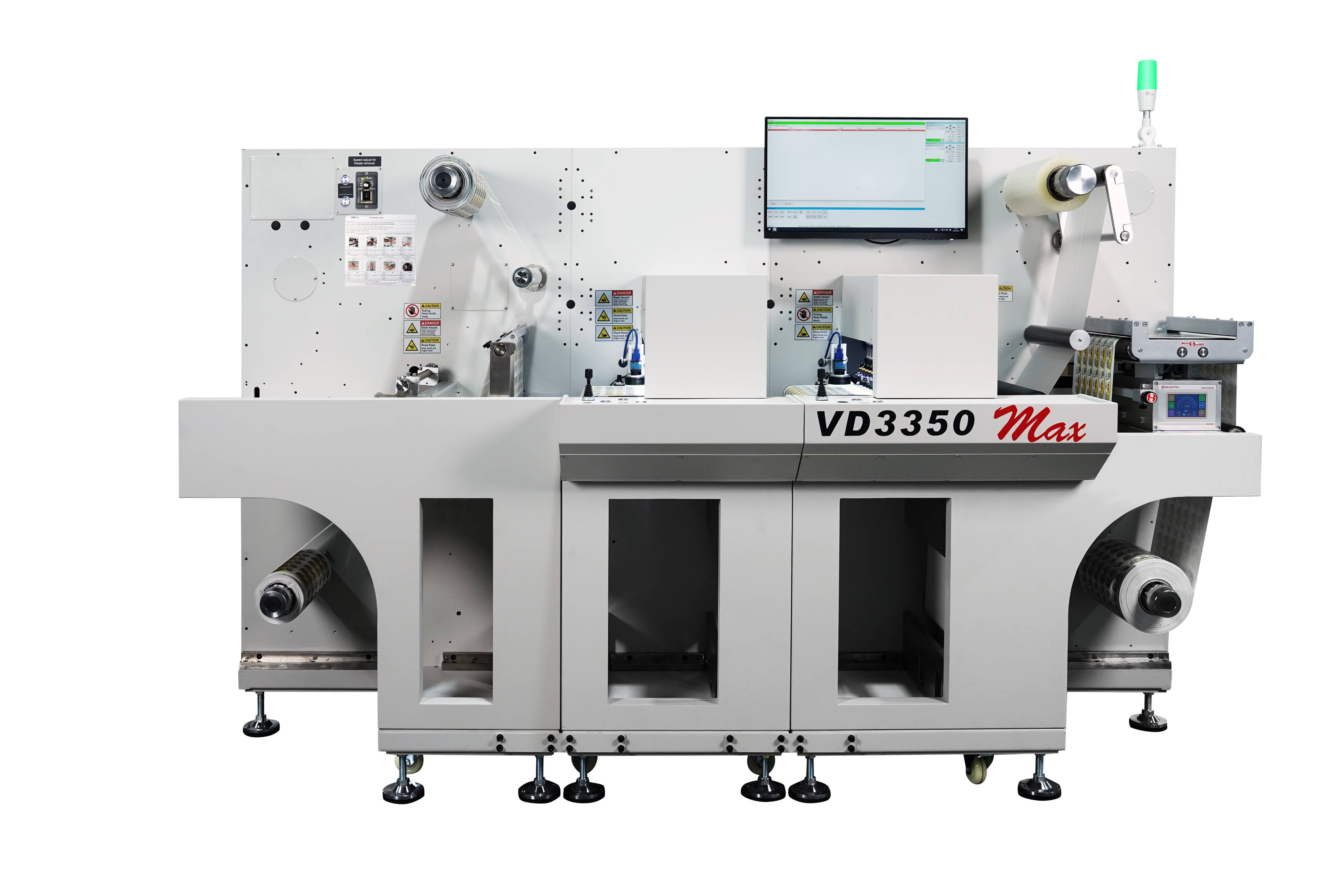

One Station Six Heads VD3350 Digital Auto Feeding Label Die Cutting Machine

Product Description

One Station Six Heads VD3350 Digital Auto Feeding Label Die Cutting Machine

One Station Six Heads VD3350 Digital Auto Feeding Label Die Cutting Machine 0

Model: VD3350

Introduction

Features:

1. Fast and high precision with full-servo motor
2. Fully automatic tension and feeding control
3. Intelligent position, choose file automatically
4. Standard 6 cutting heads, distance can be adjusted automatically
5. Support max 3 units cutting simultaneously
6. Intelligent cutting with trajectory optimization

One Station Six Heads VD3350 Digital Auto Feeding Label Die Cutting Machine 1

Specification

Model	Ecoo-VD3350
Max. media roller	diameter 450mm
Cutting media width	40-350mm
Max.label width	330mm
Min.label length	10mm
Max.label length	600mm
Cutting speed	max.9m per minute (depend on label shape and size)
Cutting blades	(standard) 4 pcs; Up to 6 pcs
Slitting blades	(standard 4 pcs ) max.15pcs
Cutting tracking	CCD camera
Die-cutting technology	with tungsten steel rotary blades
Cutting precision	0.1mm (duplicate)
Slitting speed	Max. 100m per minute
Slitting width	10-330mm
Slitting precision	0.1mm
*Machine size (WDH)*	*210011951575CM*
Machine weight	1200kg
Power	110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS
Warranty	1year (besides high consumable parts)
Options	Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter

More details

Web Guide System:

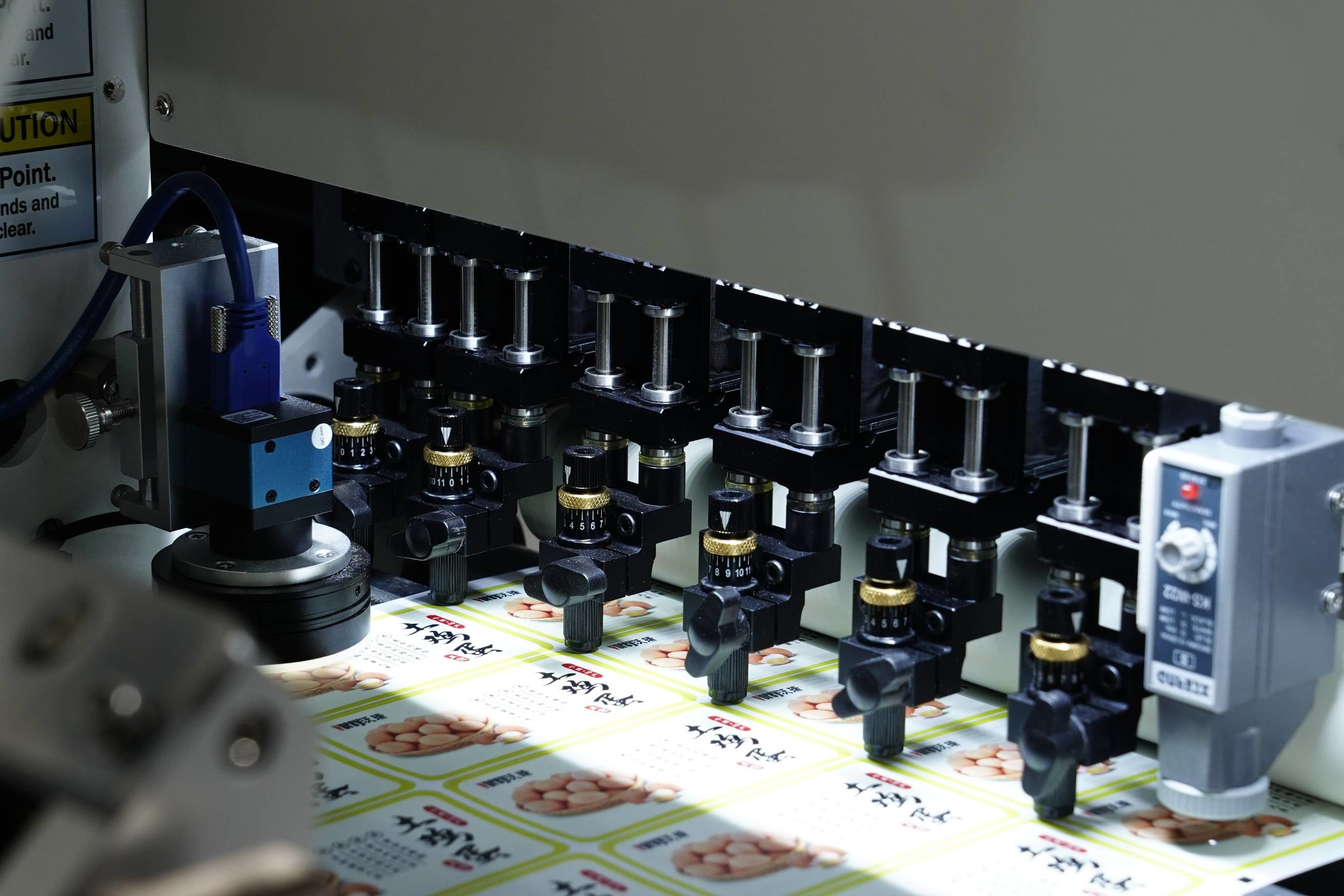

CCD Camera:
Automatically detect the files, Change cut files and Adjust the heads distances and quantity.

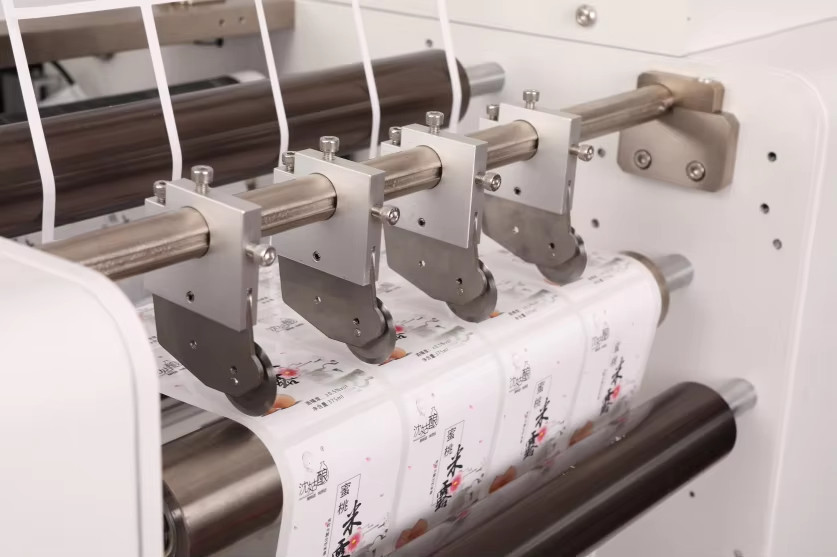

Slitter Circular Knife:
