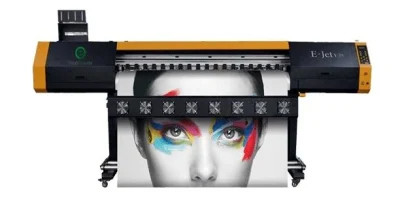

Digital Inkjet Sublimation Textile Printer

Model E-Jet V21

Resolution & Speed
High quality model (6 pass): 1800 x 720dpi 30m²/hr
Production model (4 pass): 1200 x 720dpi 45m²/hr
High speed model (2 pass): 600x 720dpi 95m²/hr

Media Transfer
Auto Taking-Up Media Device

Feeding syetem
Release media without motor, taking material with motor and tension system

Inks
4 colors or 6 colors, apply for eco-solvent, water-base and dye sublimation ink

Rip
MainTop, Seeget, PhotoPrint

Format Dimension
3000L x 800W x 1460H (mm)

Print head
Dual EPSON DX5 print heads
Minimum 3.5 pl variable ink-drop
Auto suck ink, ink suck protect system

Media
Modalities: Roll to roll media
Specifications: Max width 1.8 meters, unlimited length
Classification: Banner, Sublimation Paper, PE, PP, ABS, PU, Vinyl

Print format
PDF, PS, EPS, TIFF, AL etc. (RGB/CMYK)

Power Supply
210-230V, 50/60HZ, 16A Print Power: 1000W; Dryer Power: Max. 3500W

Environment power
Temperature: 18-30ºC
Humidity: 35-70%RH
Gross power: 3.6KW

Weight
289KG

Introduction

Adopt THK silent linear guide
Adopt German igus UL&cUL&CE certified highly flexible towline and imported synchronous wheels to ensure high-quality operation of the equipment
Upgraded version of high density cloth pressing wheel
Standardized waste ink alarm system, humanized real-time reminder
Double-motor paper take-up device to ensure the neatly retractable picture
Air drying and infrared dual drying system are optional
Upgraded version of the suction platform, the medium fits tightly to ensure that the print does not wrinkle
