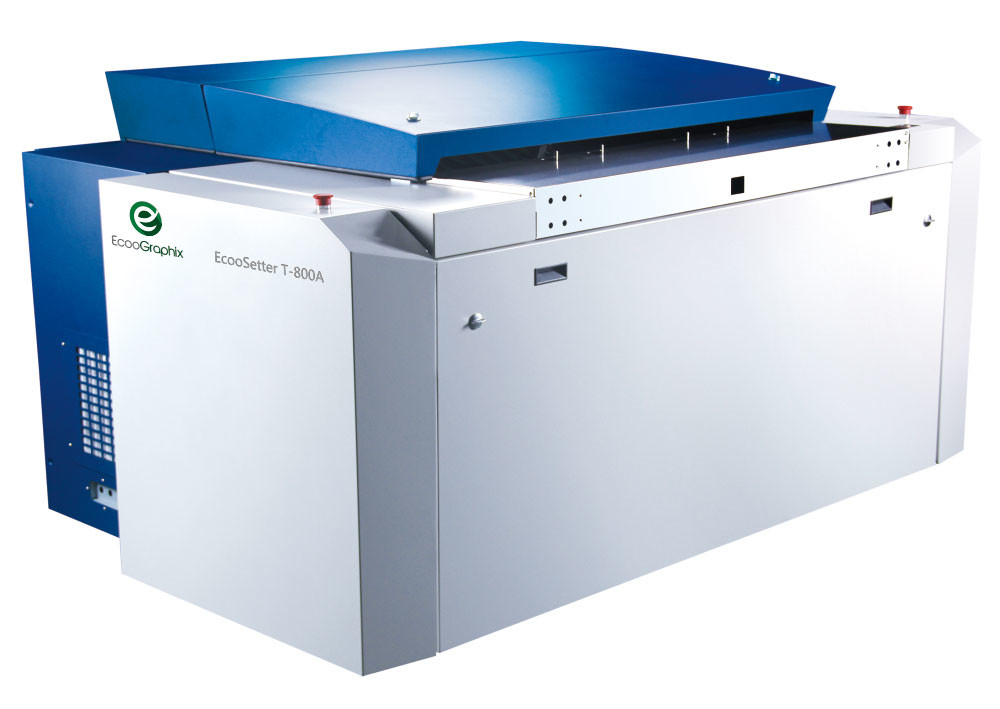

Model: EcooSetter T-800SA
Laser wavelength: 830nm
Plate: Thermal plate
Exposing Method: External Drum
Imaging System: 48-channel
Throughput: 22 plates per hour, 1030mmx800mm 2400dpi
Plate Size: Max. 1130mmx920mm Min. 400x300mm
Plate Thickness: 0.15mm to 0.3mm
Resolutions: 2,400dpi
Repeatability: ±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface: USB2.0
Weight: 1200KG
Size: 2320×1080×960mm(W×D×H)
Power Supply: single-phase: 220AC+6%,-10%;Power Consumption:4KW
Environment: recommended: 21-25ºC,max.18-26ºC,humidity:40-70%
1. Superior dot quality reproduction proven by worldwide market:
1%-99% dot reproduction; Up to 250lpi screening ,2400 dpi or 1200dpi optional
2. Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany
3. Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)
4. Long warranty of the machine:
3 years warranty (free replacement of all parts)
Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.
5. Guaranteed Service:
installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved.
Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.
6. Proven Worldwide market leader: (Some highlights installations)
Over 6000 units installed worldwide over past 10 years
USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.
Turkey: 35 units installed in Turkey by Esen Graphics
Installations in other countries UK,Italy,Spain,Hungary,Russia,Mexico,Brazil,Colombia,Ecuador,South Africa,Nigeria and etc
Specification
| ECOO T-800A Series Thermal CTP Specifications | ||||
| Model | T-800XA | T-800FA | T-800SA | T-800EA |
| Imaging System | 256 | 64 | 48 | 32 |
| Output Speed | 40 | 28 | 22 | 16 |
| 1030mm x 800mm / 2400dpi | ||||
| Plate Size | Max.1163 x 940mm Min. 400mm x 300mm | |||
| Plate Thickness | 0.15mm to 0.30mm | |||
| Resolution | 2400dpi | |||
| Weight | 1200KG | |||
| Repeatability | ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%) | |||
| Machine Size (WxLxH)mm | 2127*1610*1058mm (W*D*H) | |||
| Power Supply | Single phase:220AC +6%, -10%, Power Consumption: 4KW | |||
| Environment | Recommended temprature: 21-25ºC Max: 15-30ºC Humidity: 40%-70% | |||
Producing and Packing
Installation Worldwide
About us
FAQ
1. What are your main products?
EcooGraphix is a leading and professional supplier for the Offset Prepress solution, and can also supply the Printing Materials and Postpress Packing Equipment with reliable quality and good price.
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates, Offset Printing inks, Printing blankets, postpress packing equipments and so on.
2. Where is your factory?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai. You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
If the customer uses Ecoographix CTP plate with the CTP machine, we will provide the Lifetime Warranty and technical support!
4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose.
6. What about the Installation and after-sales technical support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
