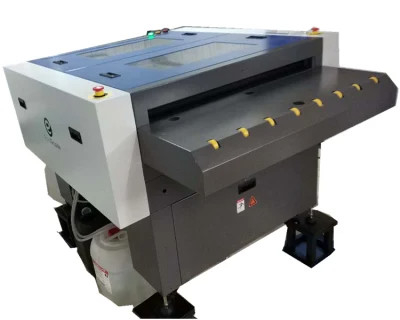

CTP Plate Developing Machine
1. Application:
Regardless of the PS plate or the CTP plate, a processing machine is required for processing the plate after the exposure is completed. EcooGraphix CTP Processor can be used with Offline / Online Thermal CTP or CTCP or UV-CTP platesetters ,such as Kodak ,Screen,Agfa, Creo, Amsky or Cron CTP machines .
2.Characteristic:
-The excellent overall design ensures the development effect, clear outlets, stable product performance and strong reliability.
-The development temperature and development time are precisely controlled to meet the washing requirements of various plates and potions, and the application range is wide.
-The water-saving effect is remarkable. The precise control of the washing time and the scientific design of the spraying method can save 80% of water.
-Significant energy saving in drying, uniform layout temperature (comparable effect can save 30%)
-Intelligent replenishment system of developer solution to ensure the development effect and reduce waste.
-The scientific design of the power, filtration and pipeline layout of the development cycle can effectively inhibit crystallization.
-Low liquid level alarm, drying and over-temperature self-protection function, safe and reliable.
-The touch screen man-machine interface is intuitive and easy to understand, making the operation more convenient.

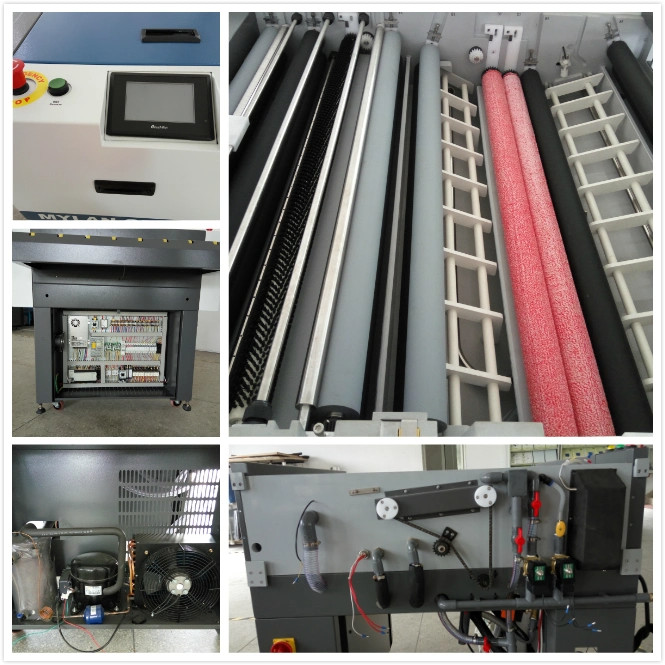

-The accessories such as rubber roller and brush are easy to fold in half, and have the function of position memory, easy maintenance.
Specification
| Ecoo Processors Series | ||||
| Model | P-900 | P-1150 | P-1250 | P-1500 |
| Page Size | 280-860 mm | 280-1100 mm | 280-1200 mm | 290-1500 mm |
| Plate Thickness | 0.15-0.4mm | |||
| Processing Speed | Speed adjustable(10 - 60 seconds) 400 - 1000mm/minute | |||
| Temperature | 10 to 45 ºC can be adjusted (automatic temperature control, cooling system) | |||
| Developing Capacity | 46L | 58L | 70L | 78L |
| Drying Temperature | 20-65 ºC can be adjusted | |||
| Electricity Requirement | 220 V (208 V - 240 V) single-phase 50-60hz | |||
| Working Power | 4.5KW | 5KW | 5.5KW | 6.5KW |
| Weight | 355kg | 420kg | 512kg | 600kg |
| Machine Size | 1420 x 1460 x 1280mm | |||

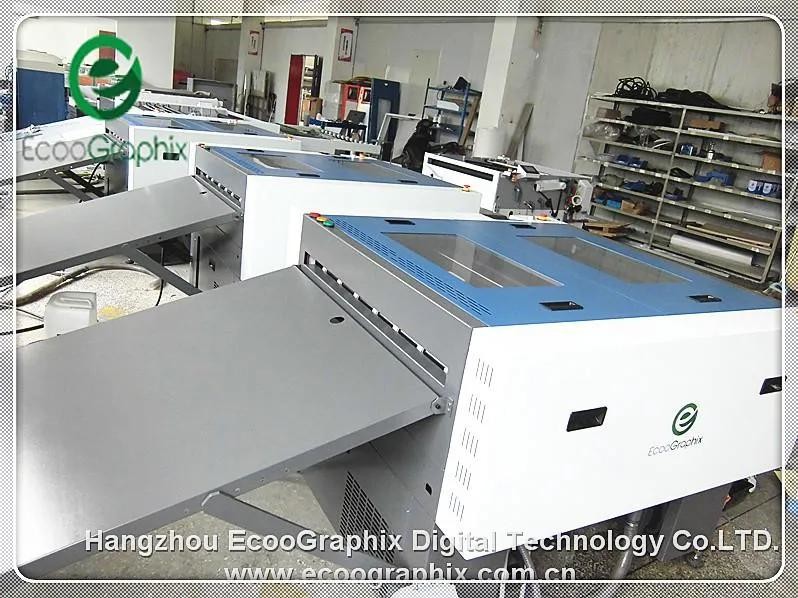

Producing and Packing
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Customer's feedback
FAQ
1.What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on. There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2.Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3.What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTP, one year for the processor.
4.What is the lead time?
Usually 20-30 days, and we will try our best to meet your demands.
5.Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6.What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
