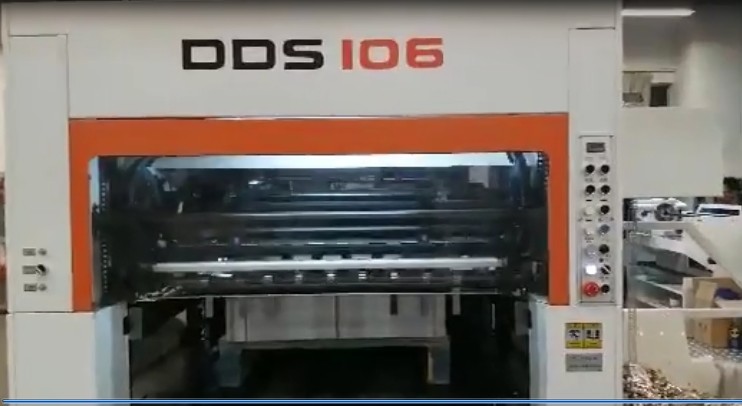

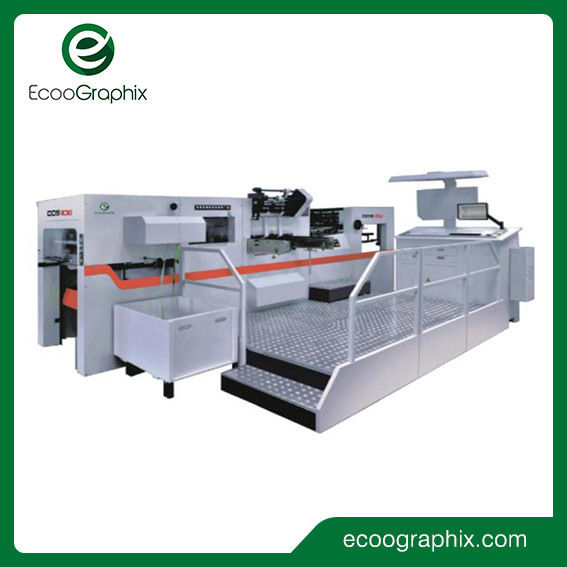

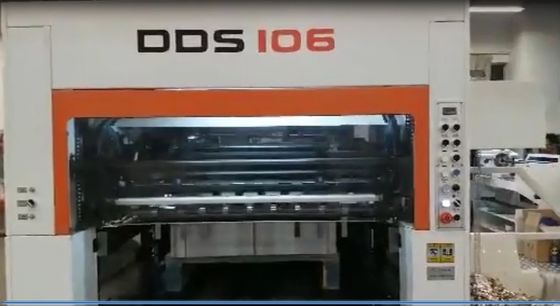

DDS106 automatic hot stamping foil die cutting machines can work on hologram stamping and other special stamping, the customers who want the high end product with good stamping result choose this model.
| Model | ECOO-DDS106 |
| Max. Sheet Size(mm) | 1060x760 |
| Min. Sheet Size(mm) | 430x350 |
| Max. die cutting size(mm) | 1060x746 |
| Max. stamping size(mm) | 1020x660 |
| Height of cutting rules(mm) | 23.8 |
| Max. pressure(N) | 250x10 |
| Stock range | Min. Sheet 175g/m²; Cardboard 157-2000g/m²; E, B flute |
| Min. gripper margin(mm) | 9 |
| Max. machine speed(s/h) | 7000 |
| Max. stamping speed(s/h) | 7000 |
| Longitudinal feeding shafts | 4 (Optional 6) |
| Transversal feeding shafts | 2 |
| Feeding pile height(mm) | 1400 |
| Delivery pile height(mm) | 1100 |
| Electric heating system | 12 zones |
| Min. foil width(mm) | 20 |
| Foil reel core(mm) | 25(1") 76(3") |
| Rated power(kw) | 50 |
| Air supply | 0.8-1.0 MPa, ≥0.6m/min |
| Overall dimension(mm) | 5850x4600x2280 |
| Weight of machine(kg) | 20000 |
Machine Spare Parts List

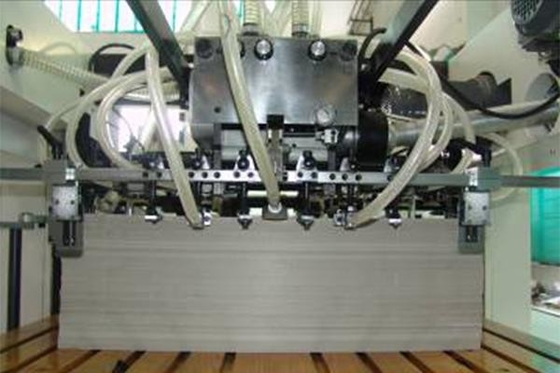

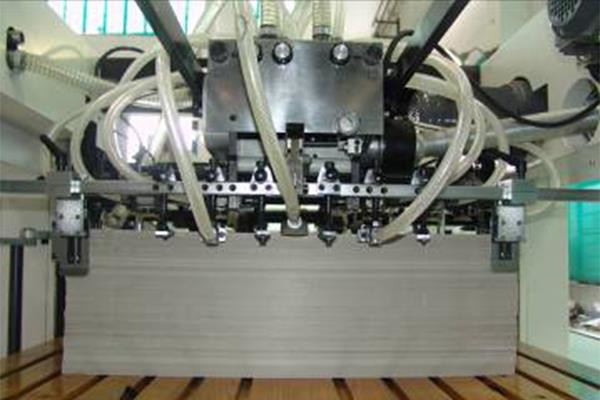

Feeder:
Conjugate cam mechanism for sheets feeding
Adjustable suckers head angles to handle different kinds of materials
Non stop sheet loading
Automatic feeding table up and down
Manual adjust on front registration synchronized with auto running
Micro adjustable side lays with pull/push in one
Side lays with photoelectric detection
4 independent front lays with photoelectric detection
Accurate reposition of the distance between the platens, less than 0.01mm
Digital pressure display
Center line system
7 specially hardened alloy gripper bars, each bar is adjustable to secure accuracy
Tri-point gripper bar registration provides high accuracy in round registrations
Pretensioned main chain with lower extension
Cam mechanism for gripper bar drive assures smooth and accuracy running
Torque clutch protects index box from concussion on gripper bar
Cam mechanism for gripper finger control assures precise sheet registration
Specially designed dwell function for stamping
Automatic and timing lubrication
Packaging & Shipping
More Details
FAQ
Q: What about the Installation and after-sales technician support?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
