Automatic Thermal CTP Plate Making Machine With 32-channel Imaging System 2400dpi Resolution And 16 Plates Per Hour

1 SET
MOQ
Negotiable
Price
Automatic Thermal CTP Plate Making Machine With 32-channel Imaging System 2400dpi Resolution And 16 Plates Per Hour
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic Thermal CTP Machine
Throughput: 16PPH; 1030mm X 800mm, 2400dpi
Media Type: Positive Thermal CTP Plate
Plate Sizes: Max.1163mm X 940mm Min.300mm X 400mm
Imaging System: 32-channel; Discrete 830nm Laser Diode
Plate Thickness: 0.15mm To 0.30mm
Resolution: 2400dpi (option:1200dpi)
Warranty: 3 Years Including All Parts
Exposing Size: Max.1130mm X 884mm
Weight: 1200KG
Power Consumption: 4KW
Highlight:

Automatic CTP Prepress Printing Equipment

,

Thermal CTP Machine Prepress Device

,

Positive Thermal CTP Prepress Device
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: EcooSetter T-800EA
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 500 Sets/Year
Product Description

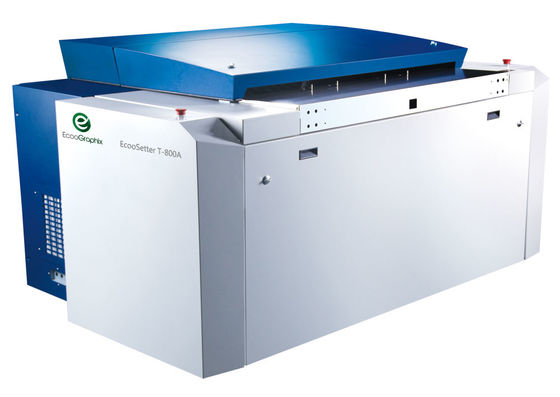

Automatic Thermal CTP Machine Model: T-800EA
Product Description

The best sold CTP Model, 8 ups format, highly automatic, with optional laser and speed setting, satisfy most printing houses' requirements.

Specification
Laser wavelength:
830nm
Plate:
Thermal plate, high-sensitive PS plate
Exposing Method:
External Drum
Imaging System:
32-channel
Throughput:
16 plates per hour, 1030mmx800mm 2400dpi
Plate Size:
Max. 1163mmx940mm Min. 400x300mm
Plate Thickness:
0.15mm to 0.3mm
Resolutions:
2,400dpi
Repeatability:
±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface:
USB2.0
Weight:
1200KG
Size:
2127×1610×1058mm(W×D×H)
Power Supply:
single-phase: 220AC+6%,-10%;
Power Consumption:
4KW
Environment:
recommended: 21-25ºC,max.18-26ºC,humidity:40-70%
ECOO T-800A Series Thermal CTP Specifications
Model T-800XA T-800FA T-800SA T-800EA
Imaging System 256 channels 64 channels 48 channels 32 channels
Output Speed 40 plates per hour 28 plates per hour 22 plates per hour 16 plates per hour
1030mm x 800mm / 2400dpi
Plate Size Max.1163 x 940mm Min. 400mm x 300mm
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Weight 1200KG
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size(WxLxH)mm 2127*1610*1058mm (W*D*H)
Power Supply Single phase:220AC +6%, -10%, Power Consumption: 4KW
Environment Recommended temprature: 21-25ºC Max: 15-30ºC Humidity: 40%-70%

Automatic Thermal CTP Plate Making Machine With 32-channel Imaging System 2400dpi Resolution And 16 Plates Per Hour 0

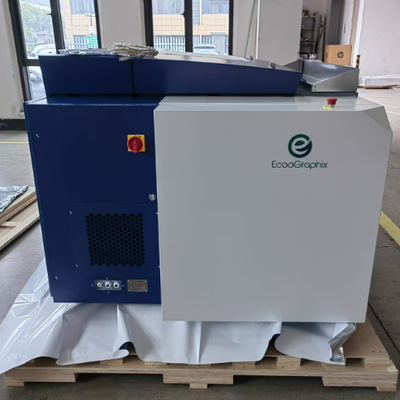

Producing and Packing

Automatic Thermal CTP Plate Making Machine With 32-channel Imaging System 2400dpi Resolution And 16 Plates Per Hour 1

Automatic Thermal CTP Plate Making Machine With 32-channel Imaging System 2400dpi Resolution And 16 Plates Per Hour 2

Automatic Thermal CTP Plate Making Machine With 32-channel Imaging System 2400dpi Resolution And 16 Plates Per Hour 3

Installation Worldwide

Automatic Thermal CTP Plate Making Machine With 32-channel Imaging System 2400dpi Resolution And 16 Plates Per Hour 4

Automatic Thermal CTP Plate Making Machine With 32-channel Imaging System 2400dpi Resolution And 16 Plates Per Hour 5

FAQ
1. How long is the lead time?
The lead time for each CTP machine is normally 30 days. We can accelerate for emergency cases.
2. How long is the warranty period?
EcooGraphix gurantees 3 years of warranty for laser head and spare parts.
3. Is there any certification for your CTP machine?
Yes, All our CTP machines have been certified by SGS and CE.
4. Do you have accompanying plate products to make an easy purchase for some end users?
Yes, we have qualified CTP/CTcP plates at most favourite price. In addition, blanket, ink, developer, processors are also in our business range.
5. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping.
6. What are your main products ?
Generally, we manage two types of products: prepress equipments and consumables, postpress equipments and consumables. Our category is as below:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.
7. Can you offer some successful installation for reference?
Yes, we achieve great success in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa, etc, with the great assisstance of our dealers. If you have any concern about the quality or service, you can contact them by your own.
8. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
9. What about the Installation and after-sales technician support?
Our engineer are all English speakers and can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
10. Where is your factory?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory at any time!
