Large Size Thermal CTP Plate Making Machine Automatic Prepress Equipment

1 SET
MOQ
Negotiable
Price
Large Size Thermal CTP Plate Making Machine Automatic Prepress Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Large Size Thermal CTP
Exposing Method: External Drum
Imaging System: 64-channel; Discrete 830nm Laser Diode
Resolution: 2400dpi
Output Speed: 10plates/hour; 1630mm X 1325mm / 2400dpi
Media Type: Positive Thermal CTP Plate
Plate Size: Max.1680mm X1350mm; Min. 650mm X 550mm
Exposing Size: Max. 1680mm X 1336mm
Plate Thickness: 0.15mm To 0.30mm Or 0.27mm To 0.40mm(alternative)
Interface: USB 2.0 Or USB3.0(USB2.0 Is Recommended)
High Light:

Automatic Thermal CTP Plate Making Machine

,

Large Size CTP Machine

,

Prepress CTP Plate Making Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: EcooSetter VLF T-1600M
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description

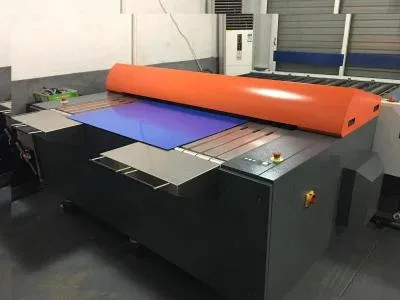

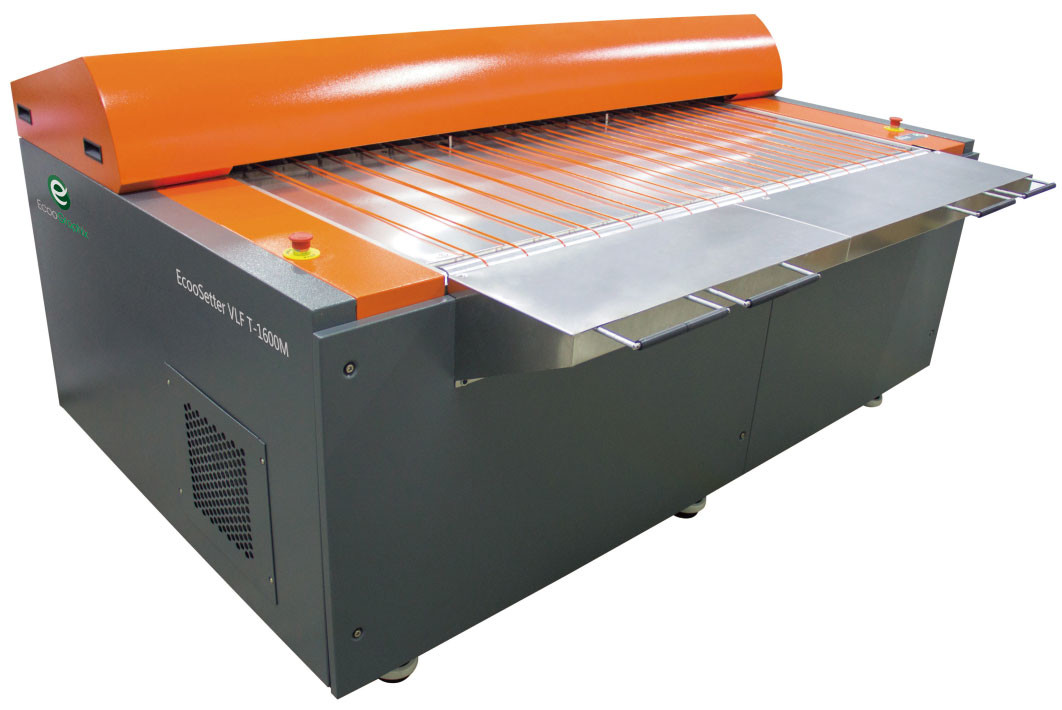

Large Size Thermal CTP Machine



 Model: VLF T-1600M





Product Description






EcooGraphix VLF(Very Large Format) Thermal CTP Machine T1600M can be used for B0 paper size posters or wall-charts, large books, catalogue, yellow pages, packaging processing and plate-making center etc., with the output speed 14 -22 plates per hour.





Specification




Model: EcooSetter VLF T-1600M


Laser wavelength: 830nm


Plate: Thermal plate


Exposing Method: External Drum


Imaging System: 64-channel


Throughput: 10 plates per hour, 1630mmx1325mm 2400dpi


Plate Size: Max. 1680mmx1350mm min. 650x550mm


Plate Thickness: 0.15mm to 0.3mm


Resolutions: 2,400dpi


Repeatability: ±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)


Interface: USB2.0


Weight: 1800KG


Size: 2400×1430×1100mm(W×D×H)


Power Supply: single-phase: 220AC+6%,-10%;



Power Consumption: 5.5KW


Environment: recommended: 21-25ºC,max.18-26ºC,humidity:40-70%



EcooGraphix VLF(Very Large Format) CTP Series
Model T-1600M T-1600MX
Imaging System 64 256
Output Speed 14 22
1630mm x 1325mm / 2400dpi
Plate Size Max.1680 x 1350mm Min. 650mm x 550mm
Plate Thickness 0.15mm to 0.40mm( Alternative)
Resolution 2400dpi
Weight 900KG
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size (WxLxH)mm 2400*1764*1100mm(W*D*H)
Power Supply triple-phase: 380V; Max power: 5.5KW
Environment recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: <70%RH



Large Size Thermal CTP Plate Making Machine Automatic Prepress Equipment 4





Producing and Packing






Large Size Thermal CTP Plate Making Machine Automatic Prepress Equipment 5



Large Size Thermal CTP Plate Making Machine Automatic Prepress Equipment 6



Large Size Thermal CTP Plate Making Machine Automatic Prepress Equipment 7

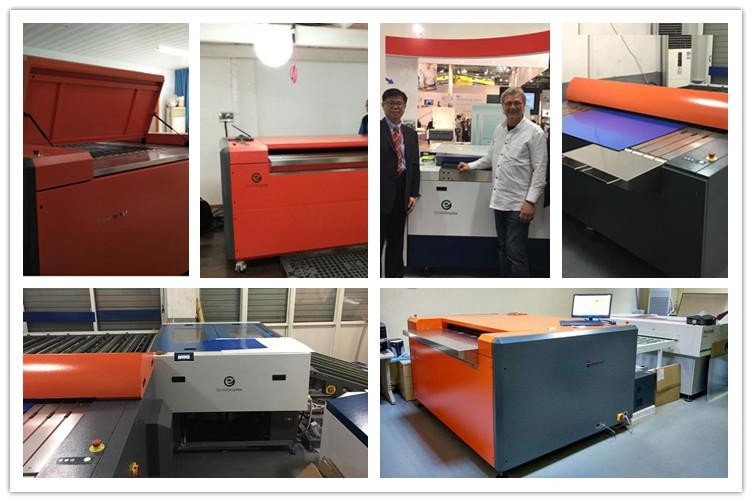

Installation Worldwide






Large Size Thermal CTP Plate Making Machine Automatic Prepress Equipment 8



Large Size Thermal CTP Plate Making Machine Automatic Prepress Equipment 9





FAQ


1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.

2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!

3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTP, one year for the processor.

4. What is the Lead Time?
Usually 30-45 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.

6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
