Large Format Thermal Plate Making Machine
Product Description
EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.
By the EcooGraphix CTP, the customer can get Excellent output image quality,highly reliable stability,less space occupied with more flexibility.
EcooGraphix VLF(Very Large Format) Thermal CTP Machine T1600M can be used for B0 paper size Posters or Wall-charts , Large Books, catalogue, yellow pages, packaging processing and plate-making center etc. , with the output speed 14-19 plates per hour.
Charateristic
Maximum Plate Size: 1680mm x 1350mm
Features: Less manpower, high stability and perfect output quality.
Thermal plates are available for you to lower production cost.
Specification
Model: EcooSetter VLF T-1600S
Laser wavelength: 830nm Plate: Thermal plate
Exposing Method: External Drum Imaging System: 64-channel
Throughput: 16 plates per hour, 1470mmx1180mm 2400dpi
Plate Size: Max. 1470mmx1180mm min. 650x550mm
Plate Thickness: 0.15mm to 0.3mm Resolutions: 2,400dpi
Repeatability: ±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface: USB2.0 Weight: 2600KG
Size: 2320×1080×960mm(W×D×H)
Power Supply: single-phase: 220AC+6%,-10%;Power Consumption:5KW
Environment: recommended: 21-25ºC,max.18-26ºC,humidity:40-70%
| EcooGraphix VLF T1600-S CTP Specifications | ||
| Model | T-1600S | T-1600SX |
| Imaging System | 64 channel | 256 channel |
| Output Speed | 16 pph | 25 pph |
| 1470mm x 1180mm / 2400dpi | ||
| Plate Size | Max.1470 x 1180mm Min. 300mm x 400mm | |
| Plate Thickness | 0.15mm-0.40mm or 0.25mm-0.4mm ( Alternative) | |
| Resolution | 2400dpi | |
| Weight | 1400KG | |
| Repeatability | ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%) | |
| Machine Size (WxLxH)mm | 2355*1910*1217mm(W*D*H) | |
| Power Supply | Single-phase:220AV-240AC; Powder Consumption: 5.5KW | |
| Environment | recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: <70%RH | |

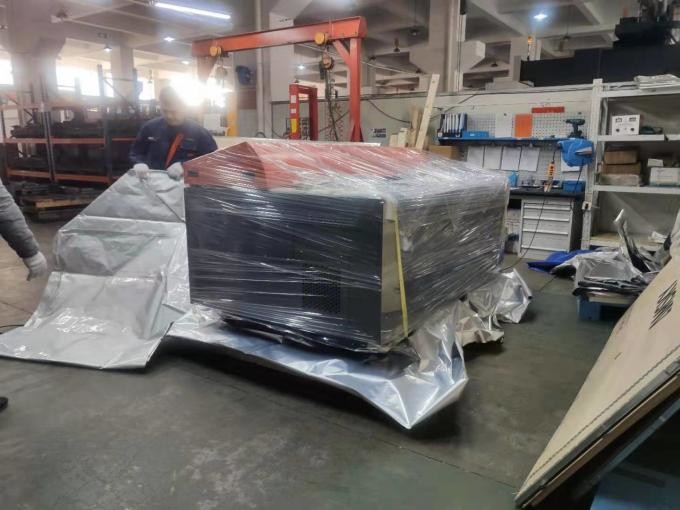

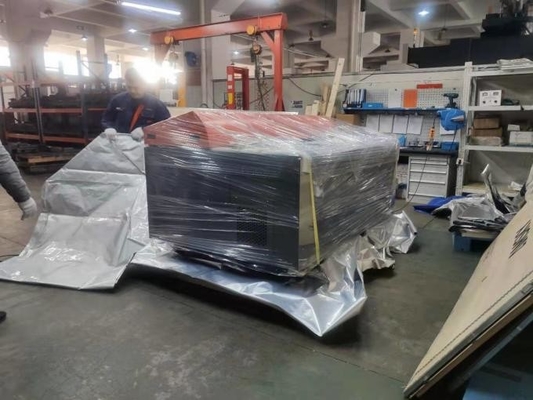

Producing and Packing
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

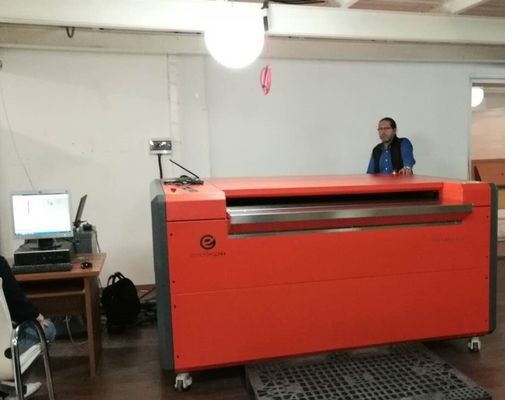

Installation Worldwide
FAQ
1. What are your main products?
EcooGraphix is a leading and professional supplier for the Offset Prepress solution, and can also supply the Printing Materials and Postpress Packing Equipment with reliable quality and good price.
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates, Offset Printing inks, Printing blankets, postpress packing equipments and so on.
2. Where is your factory?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai. You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
If the customer uses Ecoographix CTP plate with the CTP machine, we will provide the Lifetime Warranty and technical support!
4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.
6. What about the Installation and after-sales technical support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
