Ctp Plate Washing Machine Series 900/1150/1250/1500
Product Desription
Application:

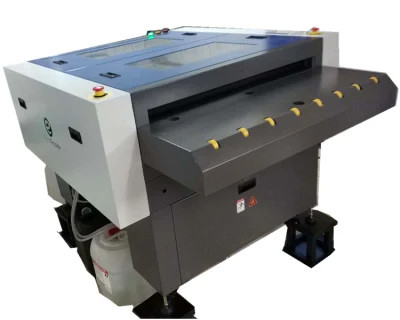

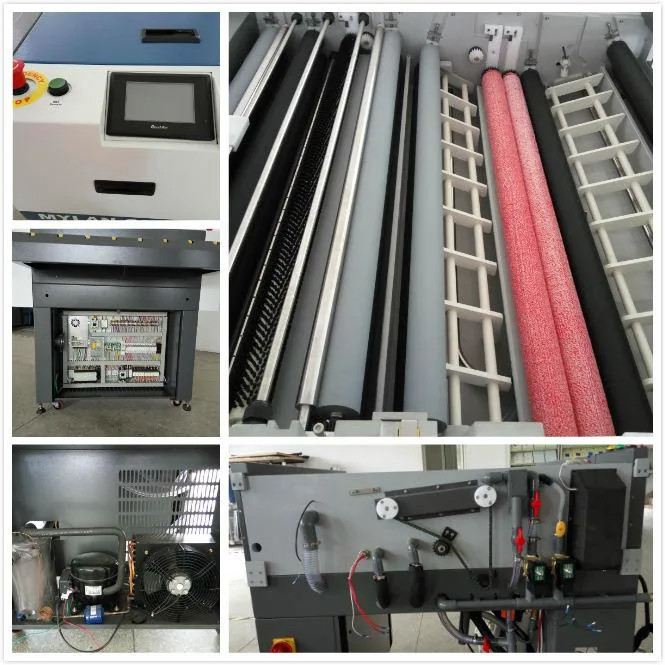

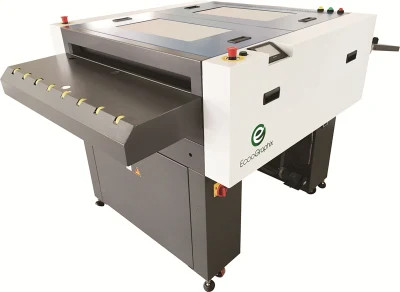

A Processor machine is used to wash off the unimaged area in the developer tank from the imaged CTP plate so that the image comes out. After processing, the imaged plate could be applied on printing machine to do the offset printing. So it is an important step. We have 3 formats to suit the different plate sizes. Also, Customer could choose the automatic feeding to work with their online CTP, or manual feeding processor to work with their offline CTP machine.Below you will find the images of machine as a whole and as sections.
Specification
| Ecoo Processors Series | ||||
| Model | P-900 | P-1150 | P-1250 | P-1500 |
| Page Size | 280-860 mm | 280-1100 mm | 280-1200 mm | 290-1500 mm |
| Plate Thickness | 0.15-0.4mm | |||
| Processing Speed | Speed adjustable(10 - 60 seconds) 400 - 1000mm/minute | |||
| Temperature | 10 to 45 ºC can be adjusted (automatic temperature control, cooling system) | |||
| Developing Capacity | 46L | 58L | 70L | 78L |
| Drying Temperature | 20-65 ºC can be adjusted | |||
| Electricity Requirement | 220 V (208 V - 240 V) single-phase 50-60hz | |||
| Working Power | 4.5KW | 5KW | 5.5KW | 6.5KW |
| Weight | 355kg | 420kg | 512kg | 600kg |
| Machine Size | 1420 x 1460 x 1280mm | |||
Processor working with CTP machine -- online vs offline
Online prepress Producing line
Processor machine working with autoloader, online CTP and stacker in customer site,linking by convenyor, for your reference. So the customer could save labor and achieve high automatic working level. We can offer all of these machines.
Offline prepress Producing line
Customer only needs to buy offline CTP and processor only so that the prepress room could work. This will require at least one work to take care, to load the CTP plate on the CTP machine and the processor machine.
Producing And Packing
Full Producing line in Prepress room
Autoloader: Plate feeding, or said plate loading automatically
CTP: To transfer the image from computer to plate
Processor: To remove the non-image area from the plate
Stacker: To collect the plate after processing/developing
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
More Details
FAQ
Q1: What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory?
Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!
Q3: Is there any certification for your CTP Processor?
Yes, all our machines have been certified by SGS and CE.
Q4: Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q5: What about the installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
