Automatic Packaging Grooving Machine High Speed

1 SET
MOQ
Negotiable
Price

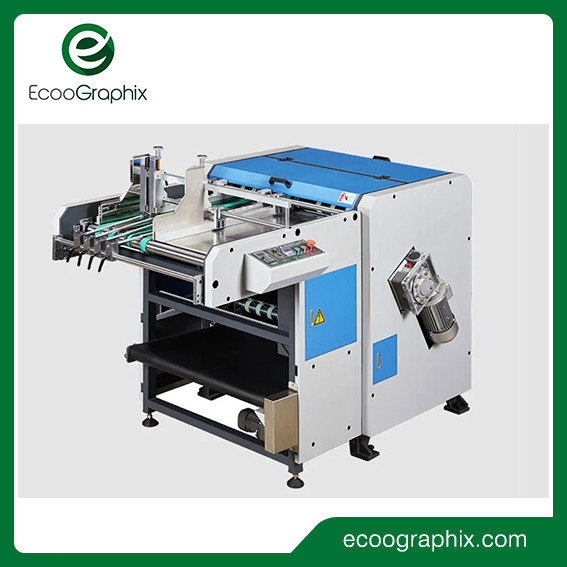

Automatic Packaging Grooving Machine High Speed
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Packaging Grooving Machine
Quantity Of Groove At A Time: 8 Slots
Working Speed: 35m/min
Max Size: 1000*600mm
Min Size: 140*120mm
Carton Paper Thickness: 500-800 G/m²
Cardboard Thickness: 0.8-4mm
Motor Power: 2kw/380v 3 Phase
Machine Dimension: Machine Dimension
Machine Weight: 1250kg
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO 1200B
Payment & Shipping Terms
Packaging Details: Standard Exporting Package: Polywood Carton
Payment Terms: L/C, , T/T
Supply Ability: 500 Sets/Year
Product Description

Automatic Packaging Grooving Machine Of High Speed







1. Slotting effect: no hairy edge, no dust, low noise;
2. Tool durability: equipped with special grinder, easy and fast operation;
3. Environmental protection and energy saving: the total power consumption of the main machine is 2.2 kw, and the whole consumption under slotting can be recovered. (Recycling scrap income can reduce electricity charges and props loss);
4. The slotting angle can be adjusted: the machine has an angle adjusting device, which can adjust itself on the machine (80-140 degrees) without changing the knife at different angles.
5. Thickness need not be adjusted: material slotting with different thicknesses need not be adjusted by machine, so it is convenient and fast to use.
6. High grooving accuracy: A new type of conveying mechanism is used to press the material needed to groove flat on the plane of large drum (diameter 60 cm) through belt, so as to ensure that the grooving position is accurate and without deviation.

Advantages

1. Slotting effect: no hairy edge, no dust, low noise;
2. Tool durability: equipped with special grinder, easy and fast operation;
3. Environmental protection and energy saving: the total power consumption of the main machine is 2.2 kw, and the whole consumption under slotting can be recovered. (Recycling scrap income can reduce electricity charges and props loss);
4. The slotting angle can be adjusted: the machine has an angle adjusting device, which can adjust itself on the machine (80-140 degrees) without changing the knife at different angles.
5. Thickness need not be adjusted: material slotting with different thicknesses need not be adjusted by machine, so it is convenient and fast to use.
6. High grooving accuracy: A new type of conveying mechanism is used to press the material needed to groove flat on the plane of large drum (diameter 60 cm) through belt, so as to ensure that the grooving position is accurate and without deviation.

Automatic Packaging Grooving Machine High Speed 0
Automatic Packaging Grooving Machine High Speed 1


Specification



Automatic High Speed Grooving machine
Model Ecoo-1200B
         Quantity of groove at a time          8 slots
Working speed 35m/min
Max size 1000*600mm
Min size 140*120mm
Carton paper thickness 500-800 g/m²
Cardboard thickness 0.8-4mm
Motor power 2kw/380v 3 phase
Machine dimension          L2050*W1520*H1350mm
Machine weight 1250kg



Automatic Packaging Grooving Machine High Speed 2

Automatic Packaging Grooving Machine High Speed 1



Producing And Packaging






Automatic Packaging Grooving Machine High Speed 4







Automatic Packaging Grooving Machine High Speed 5



Automatic Packaging Grooving Machine High Speed 6



Automatic Packaging Grooving Machine High Speed 7



FAQ


1. Payment term?
Down payment 30% of the total payment shall be made by T/T once order is confirmed and the balance shall be paid by T/T before delivery.

2. Installation and after service?
Conditional and prior to mutual agreement between the seller and the buyer.

3. Warranty?
12 months from the date of arrival at the port of destination. Damages caused by faulty operation do not fall under warranty wear and tears parts are not under warranty.

4. Package?
Seaworthy packaging (vacuum packed with aluminum foil in wooden cases).
