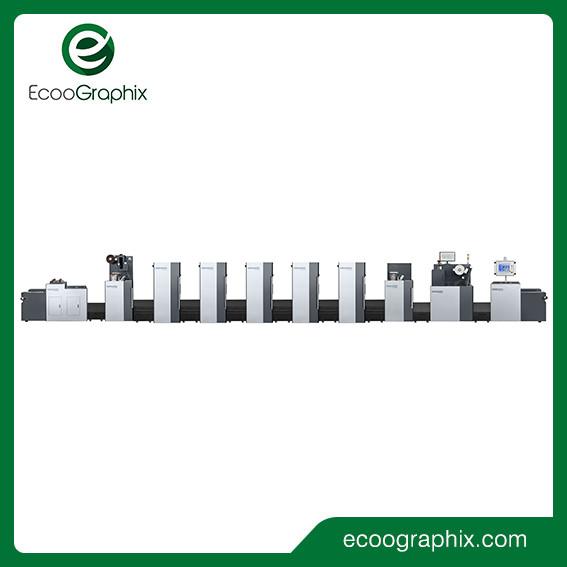

Automatic Multifunctional Rotary Offset Printing Machine 480mm 680mm 180m/Min

1 SET
MOQ
Negotiable
Price
Automatic Multifunctional Rotary Offset Printing Machine 480mm 680mm 180m/Min
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic Rotary Offset Printing Machine
Printing Speed: Max. Printing Speed: 180m/Min
Usage: Paper Printer, Label Printer
Color & Page: 4-12 Colors
Printing Paper Size: Max. Web Width: 480mm; 680mm
Max. Web Width: 480mm; 680mm
Max. Unwinding Diameter: 1000mm
Max. Rewinding Diameter: 1000mm
Printing Length: 380-690mm,430-630mm
Specification: 15.2*3.7*2.1m
High Light:

Label Printing Machine 480mm

,

Rotary Offset Printing Machine

,

Multifunctional Offset Printing Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: Ecoo-ZP 480/680
Payment & Shipping Terms
Packaging Details: Standard Exporting Package
Payment Terms: L/C, T/T
Supply Ability: 300 Sets Per Year
Product Description

 Multifunctional Automatic Rotary Offset Printing Machine







1. High-speed rotary offset printing machine(with sleeve technology)owns more than 20 national and international patents.
2. Continuous offset printing mode and variety printing sleeve technology makes fast printing speed and high printing quality.
3. The plate roller and the blanket roller adopt the air expansion sleeve type achieves short plate changing time, easy operation, and high efficiency.
4. The inking system and water system are automatically adjusted according to variable printing sleeve.
Super inking system makes the inking move evenly, printing pressure more stable and easy adjusting.
5. Unwinder has automatic tension control and is equipped with web guider.
6. Printing tension controls automatically, the web passing smoothly even at high speed, stable printing tension ensures high-speed and high-precision printing.
7. This machine has the function of automatic pre-registration, automatic registration by photocell after set-up and second pass with registration.
8. Inline inspecting system can be installed according to user's requirement.
9. Based on offset printing units, machine can combine with other functions such as flexo, gravure, cold stamping, hot stamping, die cutting, embossing and so on.
10. This machine is suitable for variable substrates, such as: self-adhesive paper, paper and unsupported film (BOPP,PET,PP,PVC, etc.).








Model Ecoo-ZP 480 Ecoo-ZP 680
Max. Printing speed 180m/min 180m/min
Printing color 4-12 colors 4-12 colors
Max. web width 480mm 680mm
Max. printing width 460mm 660mm
Max. unwinding diameter 1000mm 1000mm
Max. rewinding diameter 1000mm 1000mm
Printing length 380-690mm 430-630mm
Dimensions (L×W×H) 15.2m × 3.7m × 2.1m
  Unwinder+Flexo unit with cold stamping+5 Offset units+Flexo (varnishing)+Die-cutting unit+Rewinder

Automatic Multifunctional Rotary Offset Printing Machine 480mm 680mm 180m/Min 0

Machine Spare Parts



Automatic Multifunctional Rotary Offset Printing Machine 480mm 680mm 180m/Min 1



Heavy Offset Printing Unit
High quality heavy offset printing unit with well-designed inking system which can transfer ink fast & evenly, avoids gear mark and ghost image effectively. The printing quality can be highly improved.

Variable Printing Sleeve
When the printing job with different repeat length, just change both plate and blanket sleeve accordingly. The sleeve changing is very fast and efficient.

Automatic Ink Control System
One-button setting, ink control is automatically, because of ink supply automation and precision, it improves the printing efficiency, quality, and reduces wastage.



Note:*=Options

Automatic Multifunctional Rotary Offset Printing Machine 480mm 680mm 180m/Min 2



*Flexo Unit
In order to print more shining, the flexo unit can do spot varnishing or full varnishing or drip off, can be installed according to user's requirement.

*Cold Stamping Unit
Cold stamping with registration and hologram transfer, can be installed according to user's requirement.

*Die-cutting Unit
Adopts magnetic roller, the printing and die-cutting can be finished at one time. It can be installed according to user's requirement.





More details




Automatic Multifunctional Rotary Offset Printing Machine 480mm 680mm 180m/Min 3



Automatic Multifunctional Rotary Offset Printing Machine 480mm 680mm 180m/Min 4

FAQ




1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.

2.Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.

3. What is your warranty?
Normally 1 year.

4. Can you also supply the software?
Yes

5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
