Digital Flexible Book Banding System Binder Print On Demand

1 SET
MOQ
Negotiable
Price
Digital Flexible Book Banding System Binder Print On Demand
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Print On Demand Digital Book Banding System
No. Of Clamps: 4
Max. Mechanical Speed: 1600C/H
Book Block Length: 140-320mm
Book Block Width: 120-270mm
Book Block Thickness: 3-50mm
Cover Length: 140-450mm
Cover Width: 240-600mm
Power Required: 28kw
High Light:

Digital Book Banding System

,

Print On Demand Book Banding System

,

Flexible Book Binder 1600C/H

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: Digital Robot 2000C
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description

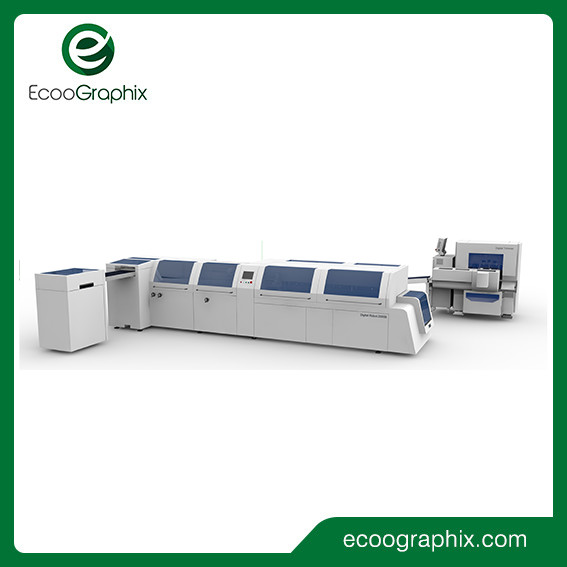

Digital Robot 2000C Binding System



Digital Robot 2000C is our latest innovation of flexible print-on-demand book binding solution for digital book production.
It features on fully automatic adjustments through touch screen, short changeover time for varied binding formats, exchangeable EVA gluing tank and PUR gluing tank, and flexible combination of different modules. It is available for inline connection with web printing machines or digital printing machines and paper processing machines. Even very
short runs can be produced quickly and in an economical way.
Digital Robot 2000C binder is a fully automatic four-clamp perfect binder with maximum mechanical speed of 1500 cycles per hour. It is the latest state-of-the-art innovation.



Items Standard Configurations Quantity (pcs)
a. Vertical Turning Module 1
b. Robot Arm 1
c. Digital Robot 2000C Binder (Hotmelt EVA Version) 1
d. DS-50 Digital Stacker 1
e. DT-30 Three-Knife Trimmer 1
f. Conveyor for connecting DS-50 Stacker and DT-30 Trimmer 1





Features

  1. No manual operation is needed. All setups and adjustments can be done automatically just by inputting data into the touch screen.
  2. When book binding format is changed, all adjustments of the binder could be automatically finished within 30 seconds.
  3. The control system can memorize up to 56 orders and retrieve them, as requested.
  4. The wide transparent machine covers offer a clear view of all operations.
  5. With the moveable EVA spine gluing station, operator can easily replace it by the PUR gluing application system in just a few minutes.
  6. The special designed soft book lay-down system can maximally protect the just bound book spine from any slight deformation.



Specification




Machine Model Digital Robot 2000C Binder
No. of Clamps 4
Max. Mechanical Speed 1600c/h
Book Block Length (a) 140-320mm
Book Block Width (b) 140-270mm
Book Block Thickness (c) 3-50mm
Cover Length (d) 140-330mm
Cover Width (e) 240-590mm
Power Required 28kw





Digital Flexible Book Banding System Binder Print On Demand 0

Digital Flexible Book Banding System Binder Print On Demand 1



Producing Main Spare Parts




A digital central control system

The icon-based touch screen in the binder serves as a central control system that can control all the modules and monitor their working status, and also serves as an error indicator to help maintain smooth operation.



Digital Flexible Book Banding System Binder Print On Demand 2



A book block feeding station
After the book block is fed into the book clamp, vibration will be applied to vibrate the book spine. The height of book block feeding station can be adjusted.

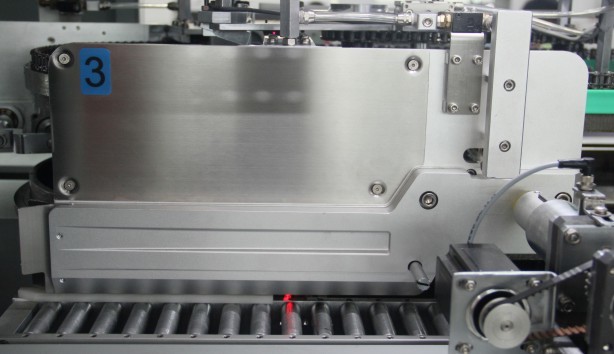

Four automatic adjusted book clamps
The pneumatic controlled book clamps can be automatically adjusted according to the book block thickness.



Digital Flexible Book Banding System Binder Print On Demand 3



An automatic adjusted milling station

Opening width of milling pressure plate is automatically adjusted by step motor.
Function: milling and notching, brushing. Milling depth: 0~3mm.
If milling function is not needed, just switch the milling handle to lower the milling station, so that book blocks are not to be milled.



Digital Flexible Book Banding System Binder Print On Demand 4



An automatic adjusted moveable spine gluing station
Spine gluing tank is moveable, and could be changed by JMD Twin Roller PUR glue tank or Nordson PUR nozzle glue tank as option. The spine gluing length and thickness are adjusted automatically.

An automatic adjusted side gluing station
Opening width of two side gluing rollers is automatically adjusted.



Digital Flexible Book Banding System Binder Print On Demand 5

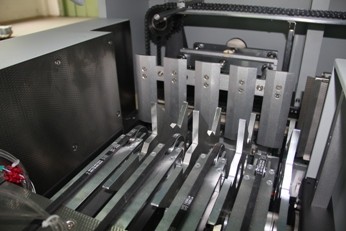

An automatic adjusted cover feeding station (quadruple cover scoring)

The side gauges of cover feeding station and position of cover scoring wheels are automatically adjusted. Sensitive double-feed or miss-feed cover defection device is installed to ensure accurate cover feeding.



Digital Flexible Book Banding System Binder Print On Demand 6



An automatic adjusted cover feeding station (quadruple cover scoring)

The side gauges of cover feeding station and position of cover scoring wheels are automatically adjusted. Sensitive double-feed or miss-feed cover defection device is installed to ensure accurate cover feeding.



Digital Flexible Book Banding System Binder Print On Demand 7



An automatic soft book lay-down system

The soft book lay-down system works as an auto-lift conveyor to receive and transport bound books gently so as to ensure no slight deformation to the book spine during delivery.



Digital Flexible Book Banding System Binder Print On Demand 8



A paper dust extractor

Paper waste can be removed by the powerful paper dust extractor to keep the system clean.



Digital Flexible Book Banding System Binder Print On Demand 9



More details




Digital Flexible Book Banding System Binder Print On Demand 10

Digital Flexible Book Banding System Binder Print On Demand 11
