Automatic Thermal CTP Machine 1163mm*940mm Plate Making Machine

Automatic Thermal CTP Machine 1163mm*940mm Plate Making Machine
Features Gallery Product Description Request A Quote
Product Name: Automatic Thermal CTP Machine
Exposing Method: External Drum
Imaging System: 48CH
Throughout: 16/22/28 Pph; 1030mm X 800mm, 2400dpi
Laser Wavelength: Discrete 830nm Laser Diode
Resolutions: 2400dpi
Plate Size: Max: 1130mmx920mm Min: 400x300mm
Plate Thickness: 0.15mm To 0.3mm
High Light:

Thermal CTP Machine 1163mm*940mm


Thermal CTP Machine 0.15mm


Automatic Thermal CTP Making Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: EcooSetter T-800SA
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 500 SETS/YEAR
Product Description

Automatic Thermal CTP Machine T-800A Series


EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor. By the EcooGraphix CTP, the customer can get Excellent output image quality, highly reliable stability, less space occupied with more flexibility.


Product Description


1. Superior dot quality reproduction proven by worldwide market:

1%-99% dot reproduction; Up to 250lpi screening ,2400 dpi or 1200dpi optional



2. Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany


3. Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)


4. Long warranty of the machine:

3 years warranty (free replacement of all parts)

Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.


5. Guaranteed Service:

installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved.

Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.


6. Proven Worldwide market leader: (Some highlights installations)

Over 6000 units installed worldwide over past 10 years

USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.

Turkey: 35 units installed in Turkey by Esen Graphics

Installations in other countries UK,Italy,Spain,Hungary,Russia,Mexico,Brazil,Colombia,Ecuador,South Africa,Nigeria and etc




T-800FA; T-800SA; T-800EA

Exposing Method
External Drum

Imaging System
64-channel; 48-channel; 32-channel, Discrete 830nm laser diode

28PPH; 22PPH; 16PPH, 1030mm x 800mm, 2400dpi

Plate Sizes
Max. 1163mm x 940mm, Min. 300mm x 400mm (300mm x 250mm is available)

Exposing Size
Max. 1130mm x 884mm

Media Type
Positive thermal CTP plate

Plate Thickness
0.15mm to 0.30mm

2400dpi(option: 1200dpi)

±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)

USB 2.0

Plate Loading
Semi automatic

Net Weight

Machine Size (WxLxH)mm
2127 x 1610 x 1058

Power Supply
Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW

Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%


ECOO T-800A Series Thermal CTP Specifications
Model T-800XA T-800FA T-800SA T-800EA
Imaging System 256 64 48 32
Output Speed 40 28 22 16
1030mm x 800mm / 2400dpi
Plate Size Max.1163 x 940mm Min. 400mm x 300mm
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Weight 1200KG
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size (WxLxH)mm 2127*1610*1058mm (W*D*H)
Power Supply Single phase:220AC +6%, -10%, Power Consumption: 4KW
Environment Recommended temprature: 21-25ºC Max: 15-30ºC Humidity: 40%-70%
Automatic Thermal CTP Machine 1163mm*940mm Plate Making Machine 4
Automatic Thermal CTP Machine 1163mm*940mm Plate Making Machine 5
Automatic Thermal CTP Machine 1163mm*940mm Plate Making Machine 6

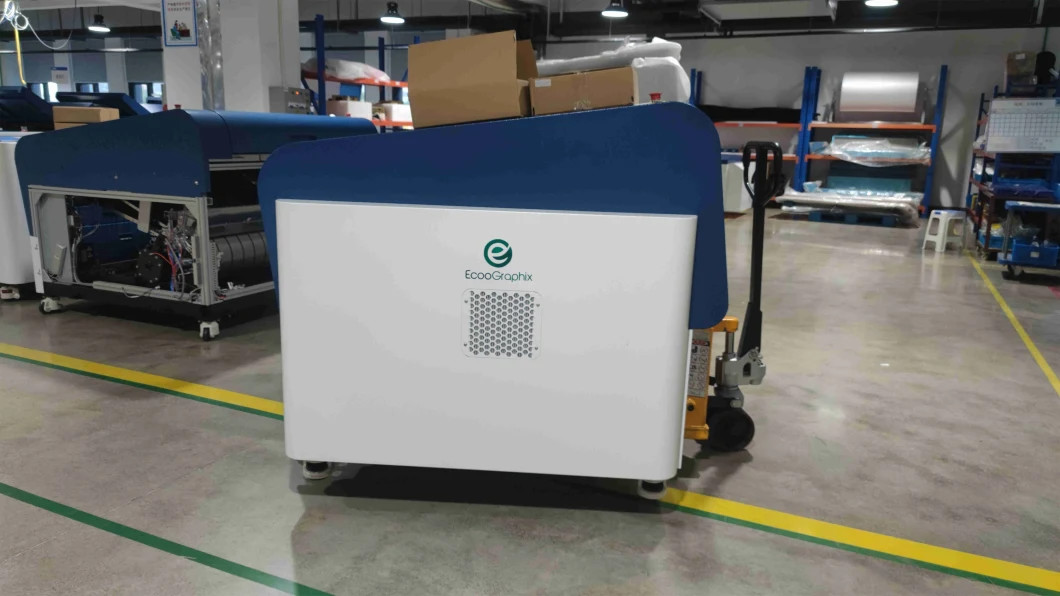

Producing and Packing


From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers.


Automatic Thermal CTP Machine 1163mm*940mm Plate Making Machine 7


Automatic Thermal CTP Machine 1163mm*940mm Plate Making Machine 8


Automatic Thermal CTP Machine 1163mm*940mm Plate Making Machine 9

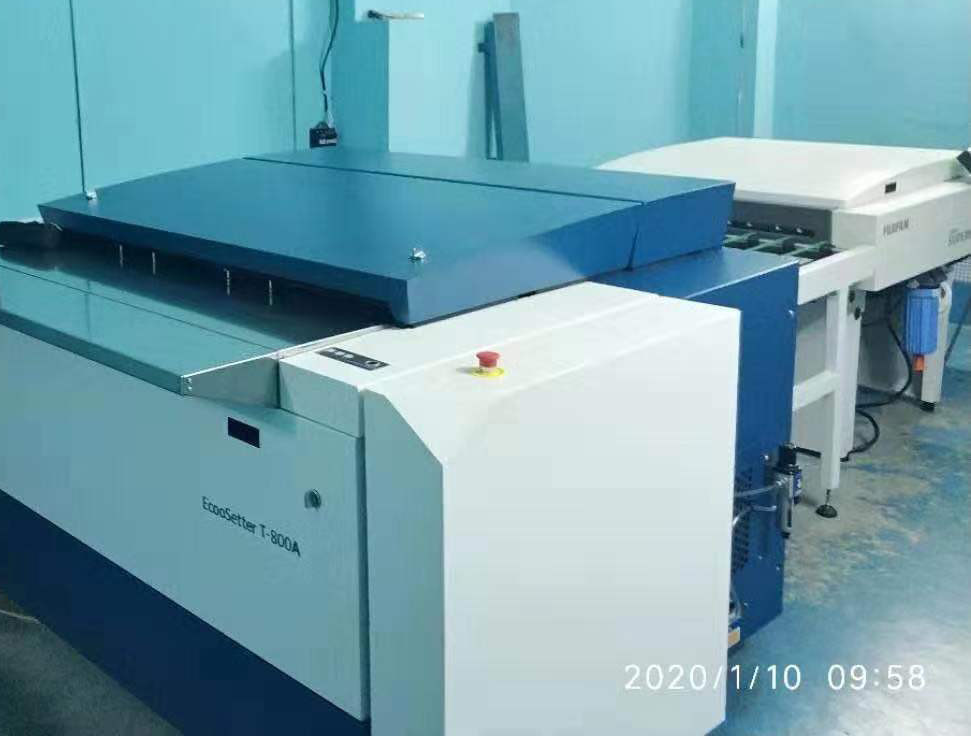

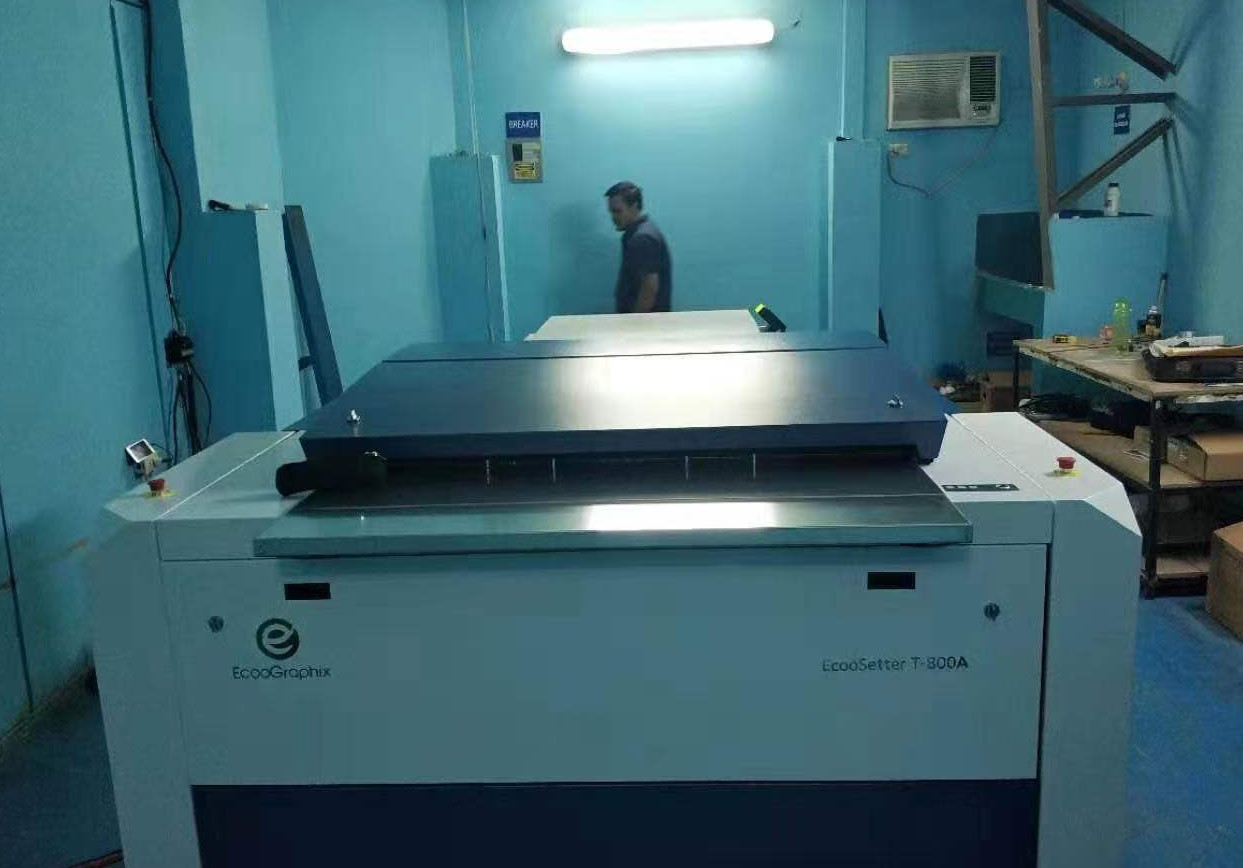

Installation Worldwide


Automatic Thermal CTP Machine 1163mm*940mm Plate Making Machine 10


Automatic Thermal CTP Machine 1163mm*940mm Plate Making Machine 11


Automatic Thermal CTP Machine 1163mm*940mm Plate Making Machine 12


About us

EcooGraphix is a leading worldwide prepress and graphics arts supply provider. With our main office in China and top quality factories mostly based in China. We provide top quality as well as cost competitive products including CTP/CTCP equipments, CTP/CTCP plates, and some other graphics arts supply. Furthermore, we treat quality service as our top priority to ensure evey single customer operates seamlessly. We are by far one of largest and top quality and service provide for CTP equipments, plates and service from China. With hundreds of EcooGraphix CTP installations across USA, Canada, Mexico, South America, UK, Europe, Middle East, Turkey and etcs, we have gained a very fine international reputation in the industry.




1) What are your main products?
A: Our main products are the Prepress CTP System (4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor), and Post Press Packing equipments (Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching machine, Book Binding machine and so on) and the Printing consumables(Offset Printing Plates, inks, printing blankets, Plate dot densimeter) . Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance. You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.

2) Where is your factory?
A: Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai. You are warmly welcomed to visit our factory!

3) What is your warranty for the CTPs?
A: Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.

4) What is the Lead Time?
A: Usually 20-30 days, and we will try our best to meet your demands.

5) Can you also supply the Workflow and RIP?
A: Yes, we can provide the Workflow Brain New and RIP Compose V9. Machine price does not include software.

6) What about the Installation and after-sales technician support?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at disposal 7x24 hours . Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.

​​​​​​​These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
