Digital Flexo CTP Machine Plate Imaging Setting Platesetter 4000dpi

Digital Flexo CTP Machine Plate Imaging Setting Platesetter 4000dpi
Features Gallery Product Description Request A Quote
Product Name: Digital Flexo CTP Machine
Laser Channel: 16 Channel
Output Speed: 1.25 M2 /h
Max.Breadth: 26'' X 17''/680mm X430mm
Min. Breadth: 100mmx100mm
Plate Thickness: 0.15mm - 2.84mm
Resolutions: 4000dpi
Device Size (WxDxH)mm: 1087x770x1000
High Light:

CTP Plate Machine 16 Channel


Digital Flexo CTP Plate Platesetter


Plate Imaging Setting Platesetter

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: Ecoosetter FL-600E
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30-45 days
Payment Terms: L/C, T/T
Supply Ability: 1000 SETS/YEAR
Product Description

Digital Flexo CTP Machine FL-400


EcooGraphix Flexo CTP Machine is used for Label, Trade Mark or Package Printing.

It can expose the Heat corrosive film, Digital relief printing plate (water-wash), Digital flexo plate (water-wash), Digital flexo plate (solvent based), or Thermal PS plate and so on.



Product Description




Easy to use:
After placing plate, the only step you need to do is to press a button to finish the plate loading within seconds.

Automatic Focusing:

The machine can be used for different thickness plate from 0.15mm to 1.7mm. Dynamic autofocus system keeps accurate focus constantly to ensure sharp dot.
Auto balance system of drum takes no more than 5 seconds to adjust drum balance block to a position, make the drum stable in high speed rotation.

Auto switch of laser channel:

When any laser channels breaks down, laser channel auto switch system can continue output through the longest consecutive channel that remains working to ensure non-stop production.

Linear motor:

More accurate, more simple and more reliable.

Long lifetime and warranty of spare parts:

Laser Lifetime: >10000h




1) Superior dot quality reproduction proven by worldwide market:
1%-99% dot reproduction; Up to 250lpi screening, 2400 dpi or 1200dpi optional

2) Fully qualified:

for any thermal non-process plate and process plates.

3) Robustness and simplicity:

robust machine and easy to use. User friendly and simple design to avoid human error.

4) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany.

5) Long lifetime and warranty of parts:

laser diodes lifetime at more than 10,000 imaging hours. (Approximately 20,0000 plates)

6) Long warranty of the machine:

3 years warranty (free replacement of all parts)
Low Cost of Parts: after 3 years' warranty, very low cost of parts. for example, laser diode at US$250 per piece.

7) Guaranteed Service:

installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved. Regular remote maintenance to be conducted every 2 months. Proactively revisit by engineers to be conducted. 7x24 hours service response.




Model EcooSetter Flexo FL-400
Imaging System 16-channel
Output Speed 1.25 m²/hour
Plate Sizes Max. 430mm x 330mm
Exposing Size Max.430mm x 330mm
Media Type Heat corrosive film, digital relief printing plate(water-wash),
digital flexo plate(water wash), digital flexo plate (solvent-based)
Plate Thickness 0.14mm to 1.70mm
Resolutions 4000dpi
Repeatablity ±5μm
(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface USB 2.0
Plate Loading Manual load and unload
Net Weight 280kg
Machine Size(WxLxH)mm 830 x 630 x 1056mm
Power Supply 220v/50hz, 60hz, mainframe 0.5kw+vacuum1.5kw
Operation Environment recommended:18-30ºC, Max.18-26ºC, humidity:10-80%

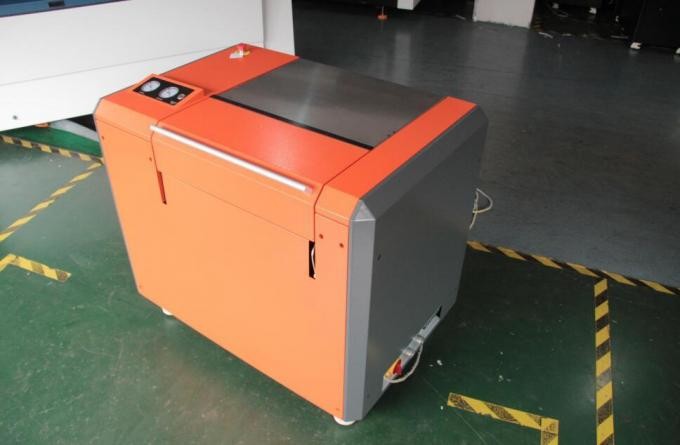

Digital Flexo CTP Machine Plate Imaging Setting Platesetter 4000dpi 0

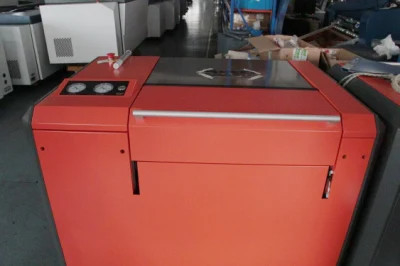

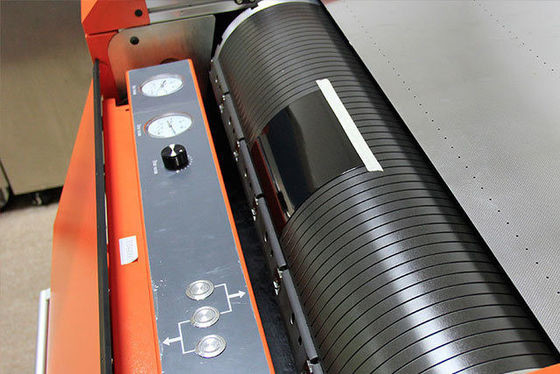

Producing and Packing


Digital Flexo CTP Machine Plate Imaging Setting Platesetter 4000dpi 1


Digital Flexo CTP Machine Plate Imaging Setting Platesetter 4000dpi 2


Digital Flexo CTP Machine Plate Imaging Setting Platesetter 4000dpi 3


Digital Flexo CTP Machine Plate Imaging Setting Platesetter 4000dpi 4



Installation Worldwide


Digital Flexo CTP Machine Plate Imaging Setting Platesetter 4000dpi 5


Digital Flexo CTP Machine Plate Imaging Setting Platesetter 4000dpi 6



About Us

EcooGraphix is a leading worldwide prepress and graphics arts supply provider. With our main office in China and top quality factories mostly based in China. We provide top quality as well as cost competitive products including CTP/CTCP equipments, CTP/CTCP plates, and some other graphics arts supply. Furthermore, we treat quality service as our top priority to ensure evey single customer operates seamlessly. We are by far one of largest and top quality and service provide for CTP equipments, plates and service from China. With hundreds of EcooGraphix CTP installations across USA, Canada, Mexico, South America, UK, Europe, Middle East, Turkey and etcs, we have gained a very fine international reputation in the industry.




1. What are your main products?

Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.

2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!

3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTP, one year for the processor.

4. What is the Lead Time?
Usually 30-45 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.

6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
